CS-530 - Echo Chainsaw (SN: C02803001001 - C02803999999) Engine Cover, Intake, Fuel System, Ignition Switch Parts Diagram

Chainsaw

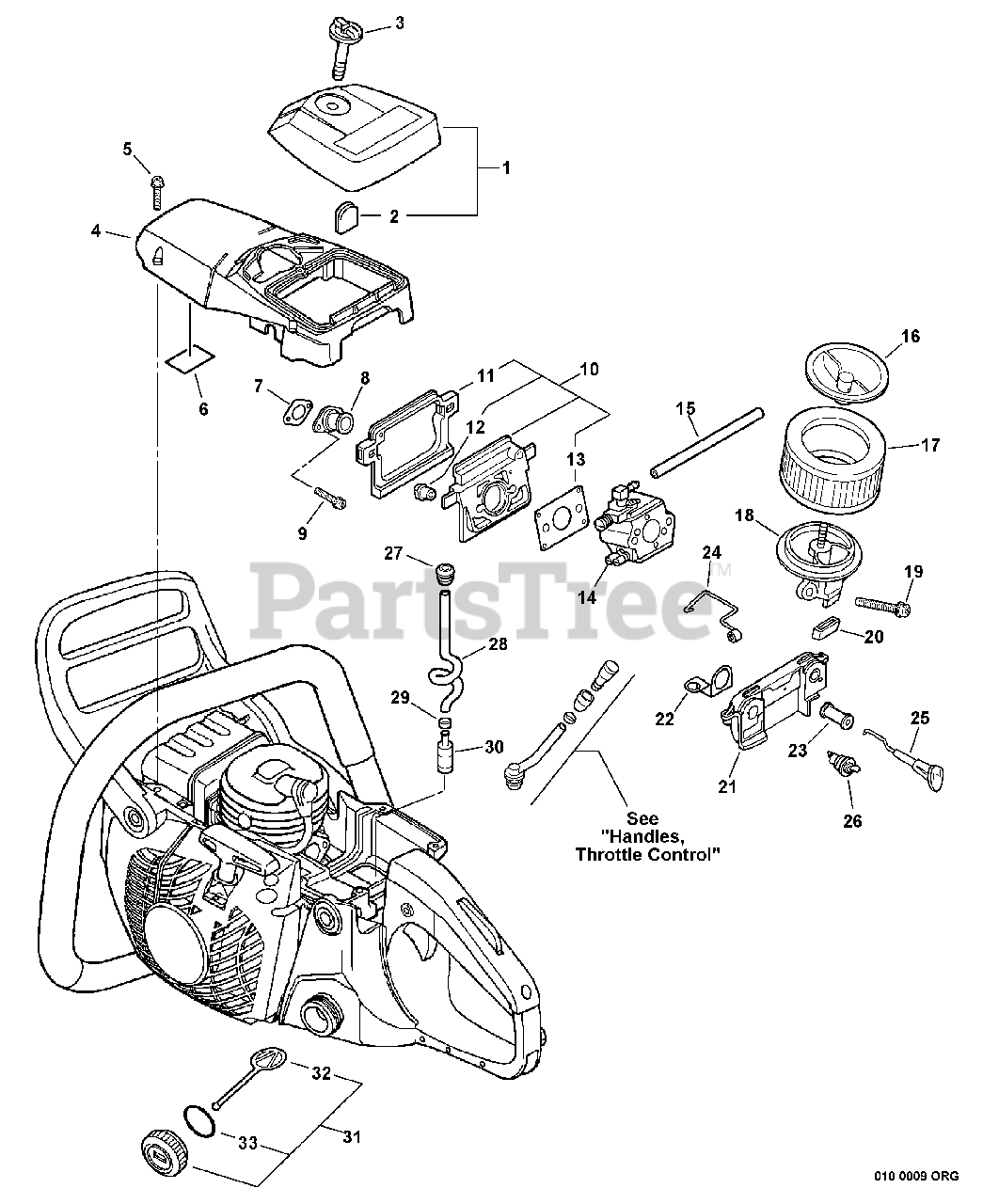

Engine Cover, Intake, Fuel System, Ignition Switch Parts Diagram

  • Title

1

Echo P021007154

AIR FILTER COVER ASSY - BLACK

Note: Includes ITEM 2

$11.99

$

In Stock, Qty 15

0

2

Echo 13033832430

PLUG

$1.49

$

In Stock, Qty 19

0

3

Echo A235000020

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

4

Echo A160000950

COVER, ENGINE
(Superseded to A160000102)

$34.99

$

Usually ships in 2-4 days

0

5

Echo 16389038330

SCREW - 5

$1.99

$

In Stock, Qty 5

0

6

Echo 10152035430

DEFLECTOR, HEAT

$3.49

$

Usually ships in 2-4 days

0

7

Echo 13001639930

GASKET, INTAKE

$2.99

$

In Stock, Qty 18

0

8

Echo 13051039932

ADAPTOR, INTAKE

$23.99

$

Usually ships in 2-4 days

0

9

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 9

0

10

Echo 13000038331

INSULATOR KIT

Note: Includes ITEMS 11-13

$20.99

$

In Stock, only 1 left!

0

11

Echo V420001130

CUSHION

$5.99

$

Usually ships in 2-4 days

0

12

Echo 13002033330

T-NUT

$3.49

$

In Stock, Qty 5

0

13

Echo 13001038330

GASKET, INTAKE

$1.49

$

In Stock, Qty 9

0

14

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

15

Echo 13011038330

PIPE - IMPULSE
(Superseded to 13011038331)

$2.99

$

In Stock, Qty 6

0

16

Echo 13040538332

COVER, AIR FILTER

$9.99

$

In Stock, Qty 13

0

17

Echo 13031038331

FILTER, AIR

$22.99

$

In Stock, Qty 20+

0

18

Echo A204000004

ADAPTOR, INTAKE

$10.99

$

Usually ships in 2-4 days

0

19

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

20

Echo 13043038330

CUSHION

$1.99

$

In Stock, only 1 left!

0

21

Echo 16381038933

BRACKET, SWITCH

$23.99

$

Usually ships in 2-4 days

0

22

Echo 16341338930

TERMINAL - GROUND

$3.49

$

Usually ships in 2-4 days

0

23

Echo 17881014534

GROMMET
(Superseded to 17881014535)

$1.49

$

In Stock, only 2 left!

0

24

Echo C454000150

ROD, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

25

Echo A241000101

ROD, CHOKE
(Superseded to A241000102)

$5.99

$

Usually ships in 2-4 days

0

26

Echo 16340038330

IGNITION SWITCH ASSY

$15.99

$

In Stock, Qty 10

0

27

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

28

Echo 13201038331

PIPE, FUEL - SPIRAL
(Superseded to 13201038332)

$8.49

$

In Stock, Qty 14

0

29

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

30

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

31

Echo P021036960

CAP ASSY - BLACK

Note: Includes ITEMS 32-33

$10.99

$

In Stock, Qty 11

0

32

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

33

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 15

0
