CS-530 - Echo Chainsaw (SN: C02803001001 - C02803999999) Engine, Short Block -- SB1080, Engine Cover Parts Diagram

Chainsaw

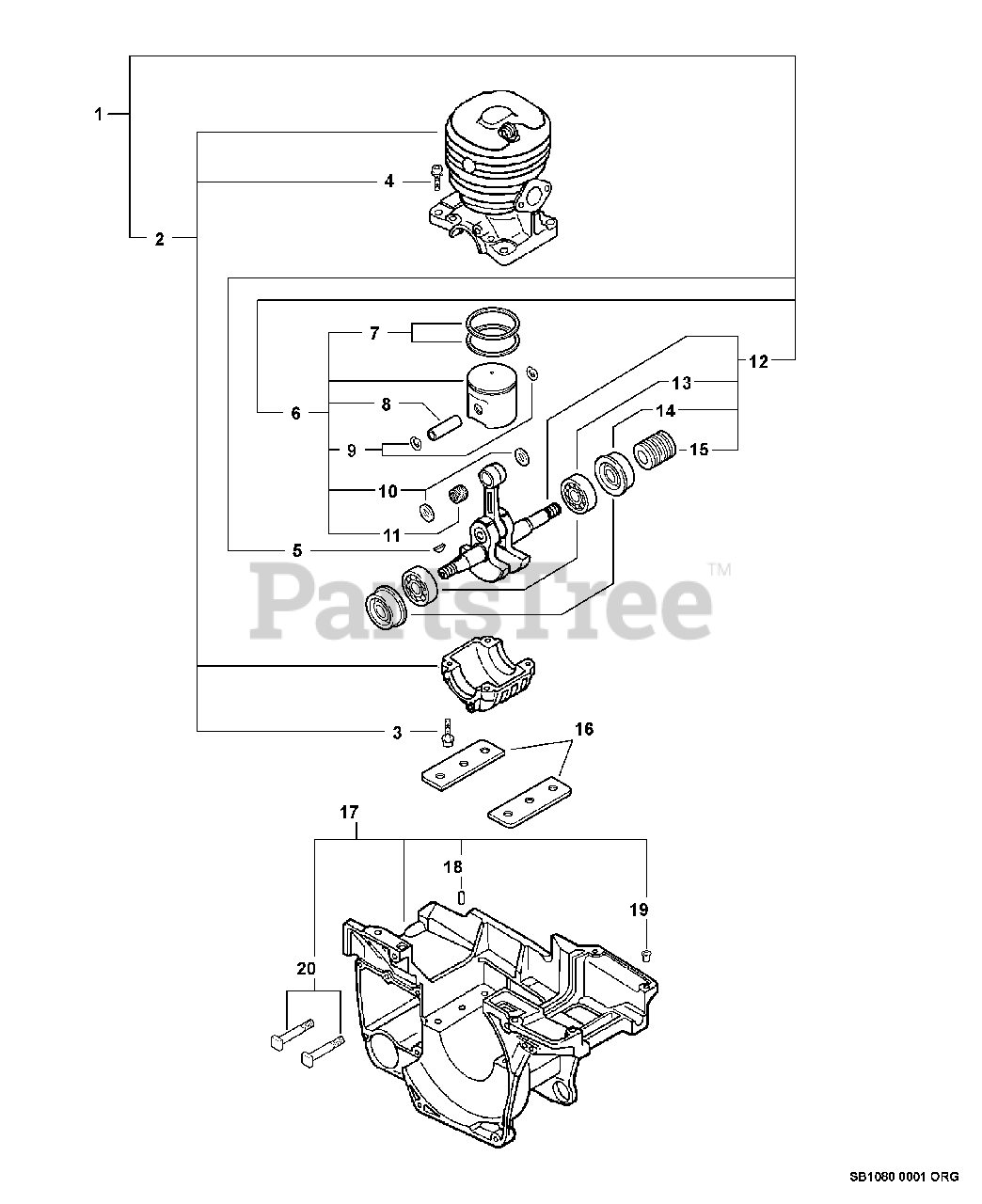

Engine, Short Block -- SB1080, Engine Cover Parts Diagram

  • Title

1

Echo SB1080

SHORT BLOCK -- SB1080

Note: Includes ITEMS 2-15

$389.99

$

Usually ships in 2-4 days

0

2

Echo P021006992

CRANKCASE KIT

Note: Includes ITEMS 3-4

$374.99

$

Usually ships in 2-4 days

0

3

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, only 4 left!

0

4

Echo V203000170

SCREW - 5X22

$0.99

$

Usually ships in 2-4 days

0

5

Echo 10014230830

KEY

$1.99

$

In Stock, only 2 left!

0

6

Echo P021006152

PISTON KIT
(Superseded to P021006153)

Note: Includes ITEMS 7-11

$88.99

$

Usually ships in 2-4 days

0

7

Echo 10001139731

RING, PISTON

$11.99

$

In Stock, Qty 10

0

8

Echo V609000000

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

9

Echo 10001532330

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

10

Echo V308000000

SPACER, PISTON
(Superseded to V308000010)

$14.99

$

Usually ships in 2-4 days

0

11

Echo V556000000

BEARING, NEEDLE

$16.99

$

In Stock, only 2 left!

0

12

Echo P021007140

CRANKSHAFT ASSY
(Superseded to P021007141)

Note: Includes ITEMS 13-15

$187.99

$

Usually ships in 2-4 days

0

13

Echo 90081036202

BEARING, BALL - 6202

$11.99

$

In Stock, only 2 left!

0

14

Echo V508000000

SEAL, OIL

$6.99

$

In Stock, only 2 left!

0

15

Echo V652000000

GEAR - WORM
(Superseded to V652000080)

$17.99

$

Usually ships in 2-4 days

0

16

Echo V150001740

PLATE

$5.49

$

Usually ships in 2-4 days

0

17

Echo P021012470

ENGINE COVER ASSY
(Superseded to P021012471)

Note: Includes ITEMS 18-20

$126.99

$

Usually ships in 2-4 days

0

18

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 13

0

19

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo 43301119831

STUD, GUIDE BAR

$3.49

$

In Stock, Qty 20+

0
