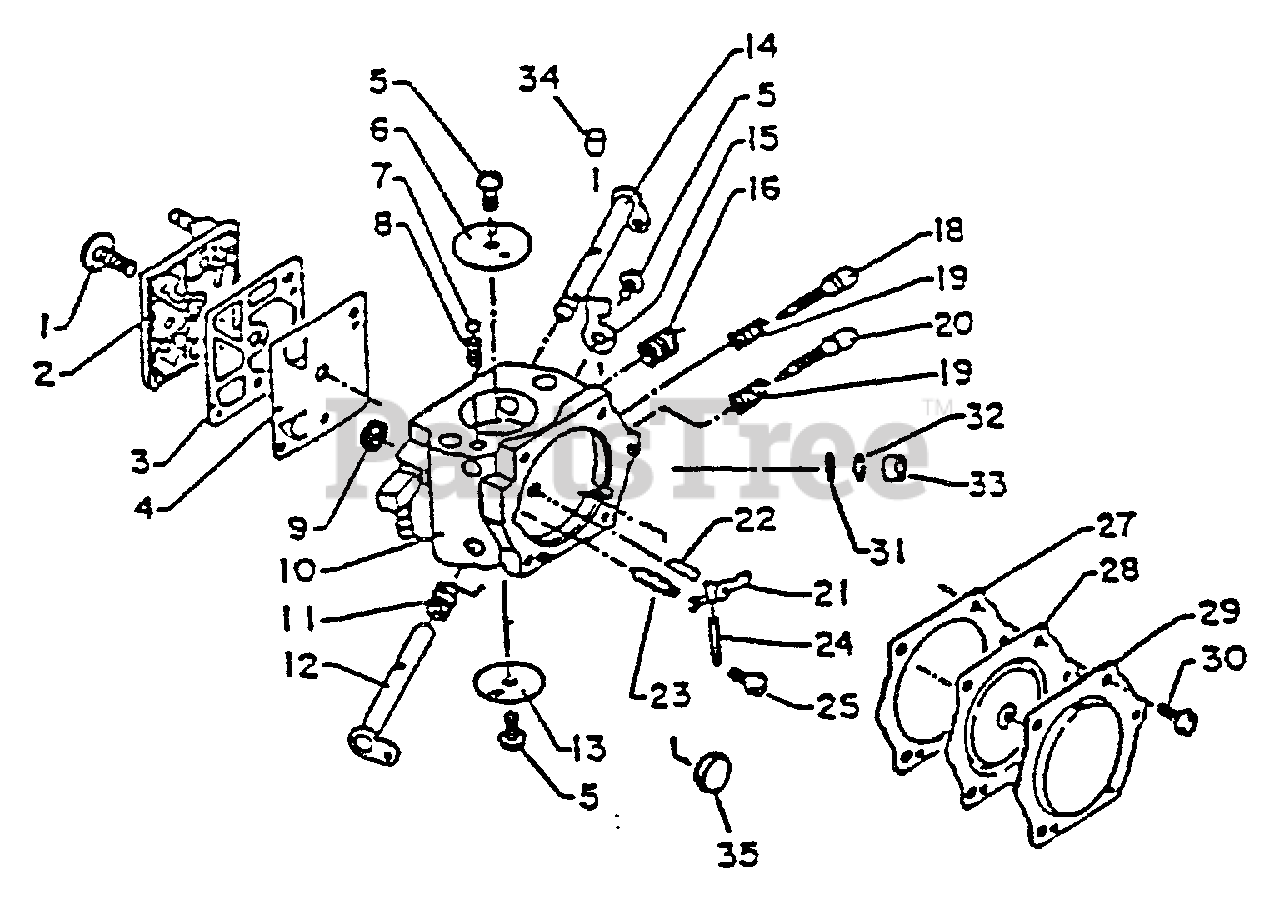

CS-5500 - Echo Chainsaw (SN: 020977 - 999999) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12300032330

CARBURETOR

$187.99

$

Usually ships in 2-4 days

0

1

Echo 12311016130

SCREW

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12312419830

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

3

GASKET, PUMP

Note: Use Carburetor Repair Kit 12310030830 & Carburetor Diaphragm/Gasket Kit 12310117330

$

$

Not available

4

DIAPHRAGM, PUMP

Note: Use Carburetor Repair Kit 12310030830 & Carburetor Diaphragm/Gasket Kit 12310117330

$

$

Not available

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

6

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

STRAINER

Note: Use Carburetor Repair Kit 12310030830

$

$

Not available

10

BODY, CARBURETOR

Note: Use Carb Asy P/N 12300032330 NOT AVAILABLE SEPARATELY

$

$

Not available

11

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12311732430

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

13

Echo 12313216130

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

14

Echo 12313119830

SHAFT, CHOKE

$6.49

$

Usually ships in 2-4 days

0

15

Echo 12315630830

STOP, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

16

Echo 12312103930

SPRING, NEEDLE

$7.49

$

In Stock, Qty 5

0

18

Echo 12311818331

NEEDLE, IDLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 12312103930

SPRING, NEEDLE

Note: Use Carburetor Repair Kit P/N 12310030830

$7.49

$

In Stock, Qty 5

0

20

Echo 12312018431

NEEDLE, HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

21

LEVER, METERING

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

------------------

SPRING, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

23

VALVE, INLET NEEDLE

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

24

PIN, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

25

SCREW, METERING LEVER PIN

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

27

GASKET, METERING

Note: Use Carburetor Repair Kit P/N 12310030830 and Carburetor Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

28

DIAPHRAGM, METERING

Note: Use Carburetor Repair Kit P/N 12310030830 and Carburetor Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

29

Echo 12314217330

COVER, METERING DIAPHRAGM

$4.99

$

Usually ships in 2-4 days

0

30

SCREW

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

31

STRAINER

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

------------------

PIN

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

33

PLUG, WELCH

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

34

Echo 12317815030

PLUG, FRICTION

$9.99

$

Usually ships in 2-4 days

0

35

PLUG, WELCH

Note: Use Carburetor Repair Kit P/N 12310030830

$

$

Not available

Echo 160336801

GUIDE BAR - 16" -- DOUBLE GUARD

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 200337901

GUIDE BAR - 20" -- DOUBLE GUARD

Note: BAR & CHAIN OPTION

$

$

Not available

Echo 240339101

GUIDE BAR - 24" -- DOUBLE GUARD BAR

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 333068

SAWING CHAIN - 33SL-68G -- 16"

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 333079

SAWING CHAIN - 33SL 79G -- 20"

Note: BAR & CHAIN OPTION

$

$

Not available

Echo 333091

SAWING CHAIN - 33SL-79G -- 24"

Note: BAR & CHAIN OPTION

$

$

Not available

Echo 12310030830

REPAIR KIT, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

Echo 12310117330

GASKET / DIAPHRAGM KIT

$

$

Not available
