CS-5500 - Echo Chainsaw (SN: 020977 - 999999) Oiler Sys Parts Diagram

CS-5500: 413x231x292 mm (16.3x9.1x11.5 in). Weight 13.5 lb. Air-cooled, 2-stroke, single-cylinder engine, 54.8 W Walbro diaphragm HDA system, Champion CJ-6Y recoil starter, automatic centrifugal clutch. Fuel: 32:1 or 50:1 (special oil) gasoline/air. Engine oil 0.62 L (21 fl oz), motor oil 0.31 L (10.5 fl oz). Guide bar options: 16", 20", 24" with 0.325" Oregon chains (33 sl 68/79/91). Low-kickback chain and guard link required. CDI ignition.

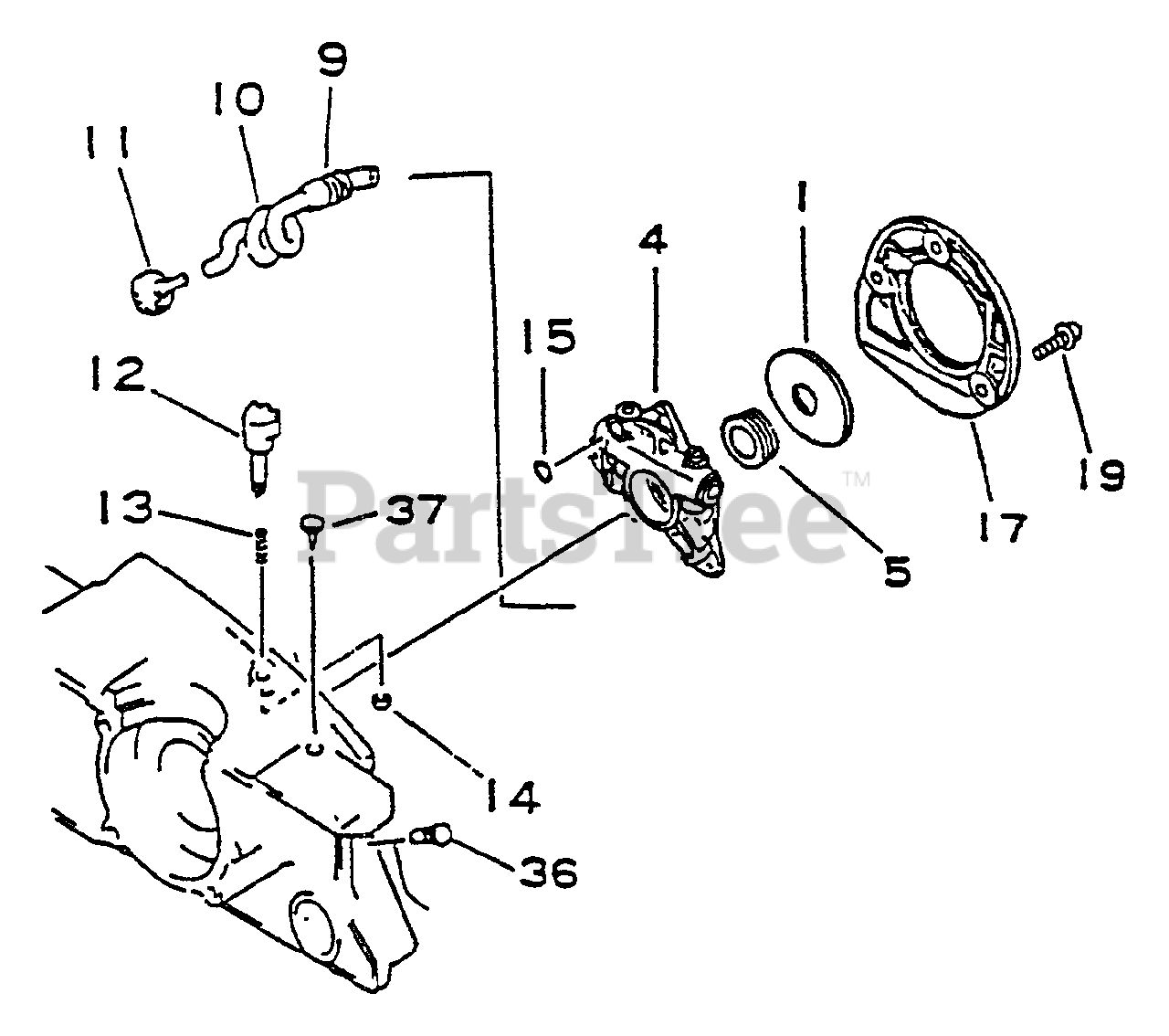

Oiler Sys Parts Diagram

  • Title

1

Echo 43700419931

GEAR, WORM

$47.99

$

Usually ships in 2-4 days

0

4

Echo 43700037530

AUTO-OILER KIT

$121.99

$

In Stock, only 1 left!

0

5

Echo 43706319930

GEAR, WORM

$47.99

$

Usually ships in 2-4 days

0

15

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

9

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

10

Echo 43721038330

PIPE, OIL
(Superseded to 43721038331)

$6.49

$

In Stock, Qty 6

0

11

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, Qty 16

0

12

Echo 43703937630

KNOB

$3.49

$

Usually ships in 2-4 days

0

13

Echo 43701519830

SPRING

$1.99

$

In Stock, only 1 left!

0

14

Echo 90070000003

E-RING 3

$0.99

$

In Stock, Qty 9

0

17

Echo 43760537630

COVER, OIL PUMP - GRAY

$6.49

$

Usually ships in 2-4 days

0

19

Echo 90022004014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

36

Echo 10061030130

PLUG
(Superseded to Discontinued)

$

$

Not available

37

Echo 13033730130

PLUG

$1.99

$

Usually ships in 2-4 days

0
