CS-590 - Echo Chainsaw (SN: C98512001001 - C98512999999) Chain Brake Parts Diagram

Chainsaw

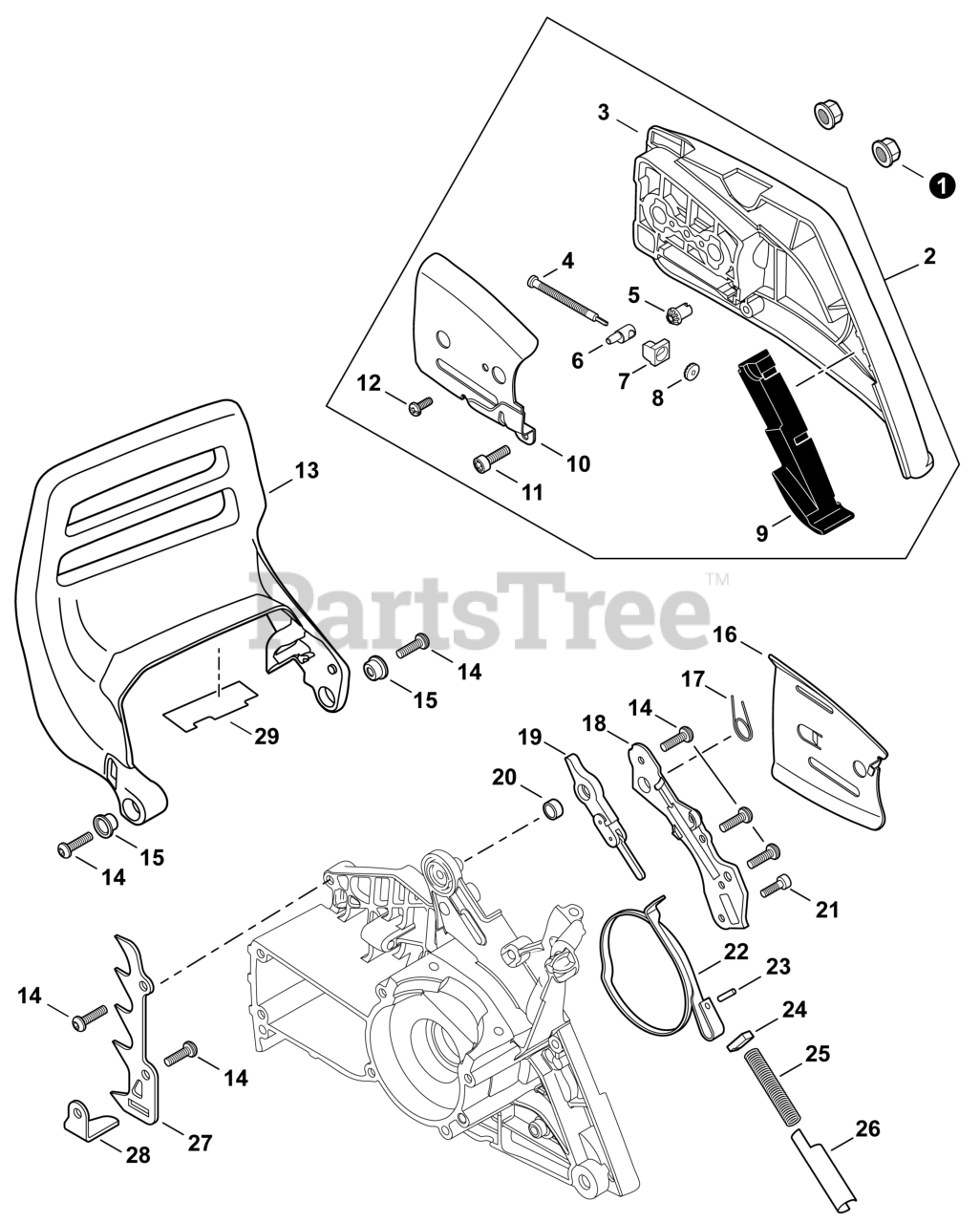

Chain Brake Parts Diagram

  • Title

1

Echo V265000200

NUT, FLANGE M8x1.25

$2.49

$

In Stock, Qty 20+

0

2

Echo P021050780

GUARD KIT, SPROCKET

Note: Includes Items 3-12

$86.99

$

In Stock, only 2 left!

0

3

Echo C300000413

GUARD, SPROCKET

$65.99

$

In Stock, only 3 left!

0

4

Echo V203002140

SCREW, CHAIN TENSION 63 MM

$6.99

$

In Stock, Qty 20+

0

5

Echo V651001040

GEAR, BEVEL

$18.99

$

In Stock, Qty 5

0

6

Echo C309000160

TENSIONER, CHAIN

$6.99

$

In Stock, Qty 20+

0

7

Echo V355000800

COLLAR 8

$1.99

$

In Stock, Qty 20+

0

8

Echo V651001050

GEAR, BEVEL

$8.99

$

In Stock, Qty 18

0

9

Echo C302000090

CUSHION

$8.49

$

In Stock, only 1 left!

0

10

Echo C305000101

PLATE, GUIDE - OUTER

$14.99

$

In Stock, only 2 left!

0

11

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

12

Echo 90024103006

SCREW 3x6

$0.99

$

In Stock, Qty 9

0

13

Echo C320000183

LEVER, BRAKE

$32.99

$

Usually ships in 0 days

0

14

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

15

Echo V356000440

COLLAR 10

$3.99

$

In Stock, Qty 9

0

16

Echo C305000111

PLATE, GUIDE - INNER

$16.99

$

In Stock, only 2 left!

0

17

Echo V452000400

SPRING, TORSION

$3.99

$

In Stock, Qty 11

0

18

Echo C345000283

COVER, BRAKE

$10.99

$

In Stock, Qty 9

0

19

Echo C334000111

CONNECTOR, BRAKE

$19.99

$

In Stock, Qty 7

0

20

Echo V356000470

SPACER 12x10xT: 1.0

$7.49

$

In Stock, only 2 left!

0

21

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

22

Echo C328000121

BAND, BRAKE

$16.99

$

In Stock, only 2 left!

0

23

Echo 9305030098

PIN, SPRING 3x9.8

$0.99

$

In Stock, Qty 20+

0

24

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

25

Echo V450000740

SPRING, COMPRESSION 12x70.5

$17.99

$

In Stock, only 2 left!

0

26

Echo C603000220

PLATE, SIDE

$4.99

$

In Stock, Qty 6

0

27

Echo C304000280

SPIKE, BUMPER

$10.99

$

In Stock, Qty 12

0

28

Echo C310000010

CATCHER, CHAIN

$4.99

$

In Stock, only 3 left!

0

29

Echo V341000131

SHIELD, HEAT 75x27x0.15

$3.49

$

In Stock, only 2 left!

0
