CS-60 S - Echo Chainsaw (SN: 059501 - 999999) Starter Parts Diagram

Chainsaw

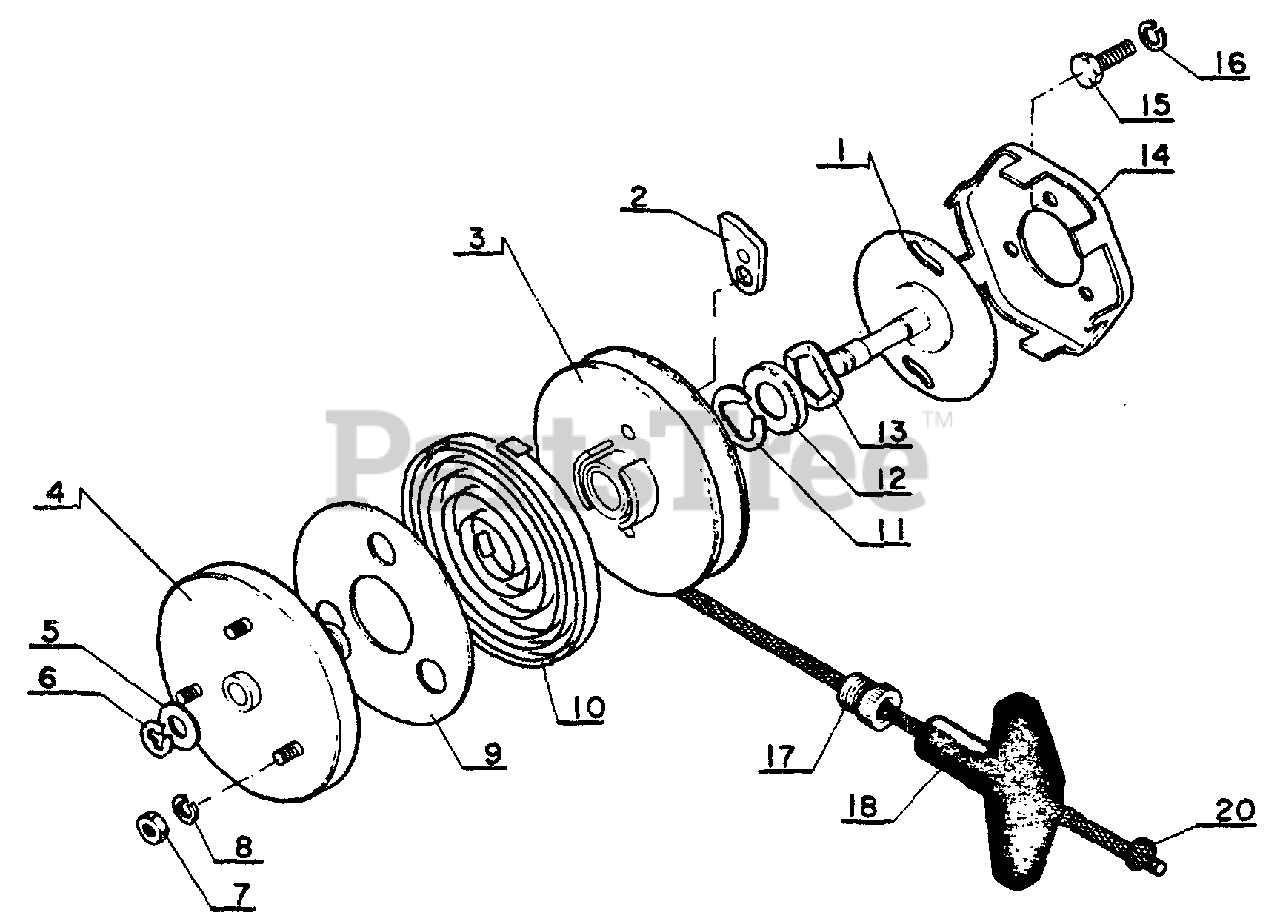

Starter Parts Diagram

  • Title

Echo 17720000630

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 17720500230

PLATE, GUIDE

$27.99

$

Usually ships in 2-4 days

0

2

Echo 17721800231

PAWL, STARTER

$5.49

$

Usually ships in 2-4 days

0

3

Echo 17720600330

REEL, ROPE

$35.99

$

Usually ships in 2-4 days

0

4

Echo 17720800630

RETAINER, SPRING

$32.99

$

Usually ships in 2-4 days

0

5

Echo 17722500230

WASHER

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

9

Echo 17722100230

PLATE, STARTER

$3.99

$

Usually ships in 2-4 days

0

10

Echo 17722000230

SPRING, REWIND

$14.99

$

Usually ships in 2-4 days

0

11

Echo 90070000012

RING, RETAINING - 12
(Superseded to Discontinued)

$

$

Not available

12

Echo 17721400230

WASHER

$1.49

$

Usually ships in 2-4 days

0

13

Echo 17721300230

WASHER

$0.99

$

Usually ships in 2-4 days

0

20

Echo 17722600230

ROPE, STARTER

$5.99

$

Usually ships in 2-4 days

0

7

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 14

0

8

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

14

Echo 17721000230

CATCHER, PAWL

$9.99

$

Usually ships in 2-4 days

0

15

Echo 90010006014

BOLT - 6X14
(Superseded to Discontinued)

$

$

Not available

16

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 17

0

17

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

18

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 15

0
