CS-600 P - Echo Chainsaw (SN: C03603001001 - C03603999999) Engine, Crankcase Parts Diagram

Chainsaw

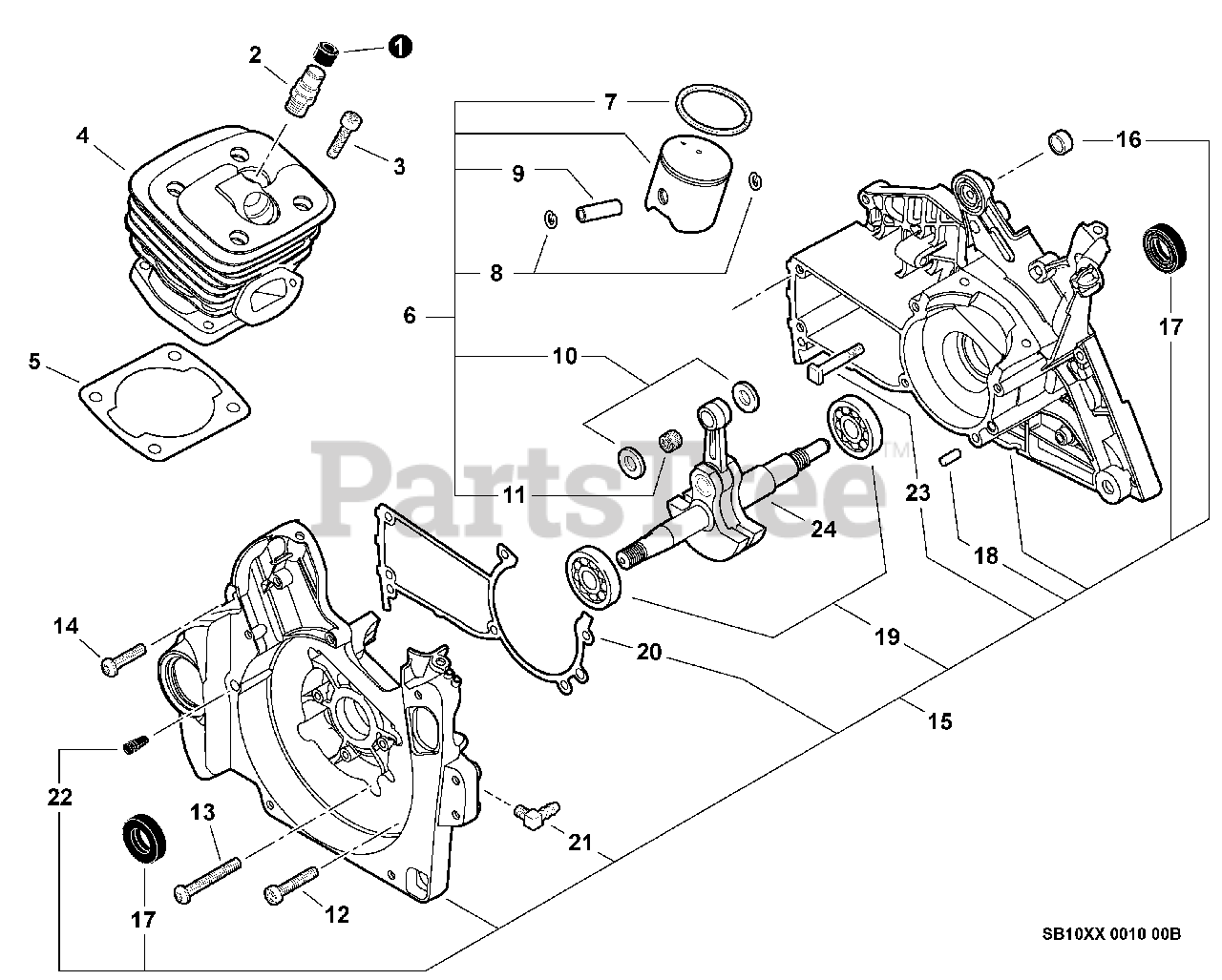

Engine, Crankcase Parts Diagram

  • Title

1

Echo V141000090

COVER, DUST

$6.49

$

In Stock, Qty 6

0

2

Echo A014000040

VALVE ASSY, DECOMPRESSION
(Superseded to A014000110)

$55.99

$

In Stock, only 3 left!

0

3

Echo V805000220

BOLT, TORX 5×25

$1.99

$

In Stock, Qty 20+

0

4

Echo A130000910

CYLINDER
(Superseded to A130000911)

$238.99

$

Usually ships in 2-4 days

0

5

Echo V100000270

GASKET, CYLINDER

$3.99

$

In Stock, Qty 14

0

6

Echo P021015190

PISTON KIT

$86.99

$

Usually ships in 2-4 days

0

7

Echo A101000210

RING, PISTON

Note: INCLUDES ITEMS 7-11

$9.99

$

In Stock, only 1 left!

0

8

Echo V580000030

RING, SNAP Ø11

$0.99

$

In Stock, Qty 10

0

9

Echo V609000010

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

10

Echo V308000040

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

11

Echo V556000000

BEARING, NEEDLE 11

$16.99

$

In Stock, only 1 left!

0

12

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo V805000020

BOLT, TORX 5×35
(Superseded to Discontinued)

$

$

Not available

14

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

15

Echo P021015132

CRANKCASE KIT
(Superseded to P021043800)

Note: Includes ITEMS 16-23

$119.99

$

Usually ships in 2-4 days

0

16

Echo V356000470

SPACER 12×10×T: 1.0

$7.49

$

In Stock, only 2 left!

0

17

Echo V508000010

SEAL, OIL 15
(Superseded to V508000100)

$6.49

$

In Stock, only 4 left!

0

18

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

19

Echo V592000000

BEARING, BALL 6202

$22.99

$

Usually ships in 2-4 days

0

20

Echo V102000060

GASKET, CRANKCASE

$5.99

$

In Stock, only 1 left!

0

21

Echo 43723914730

CONNECTOR, PIPE

$9.49

$

Usually ships in 2-4 days

0

22

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

23

Echo V205000400

BOLT, STUD M8×1.25×34.5
(Superseded to V205000401)

$3.49

$

In Stock, Qty 15

0

24

Echo A011000540

CRANKSHAFT ASSY
(Superseded to A011001270)

$284.99

$

Usually ships in 2-4 days

0
