CS-600 P - Echo Chainsaw (SN: C03704001001 - C03704999999) Chain Brake Parts Diagram

Chainsaw

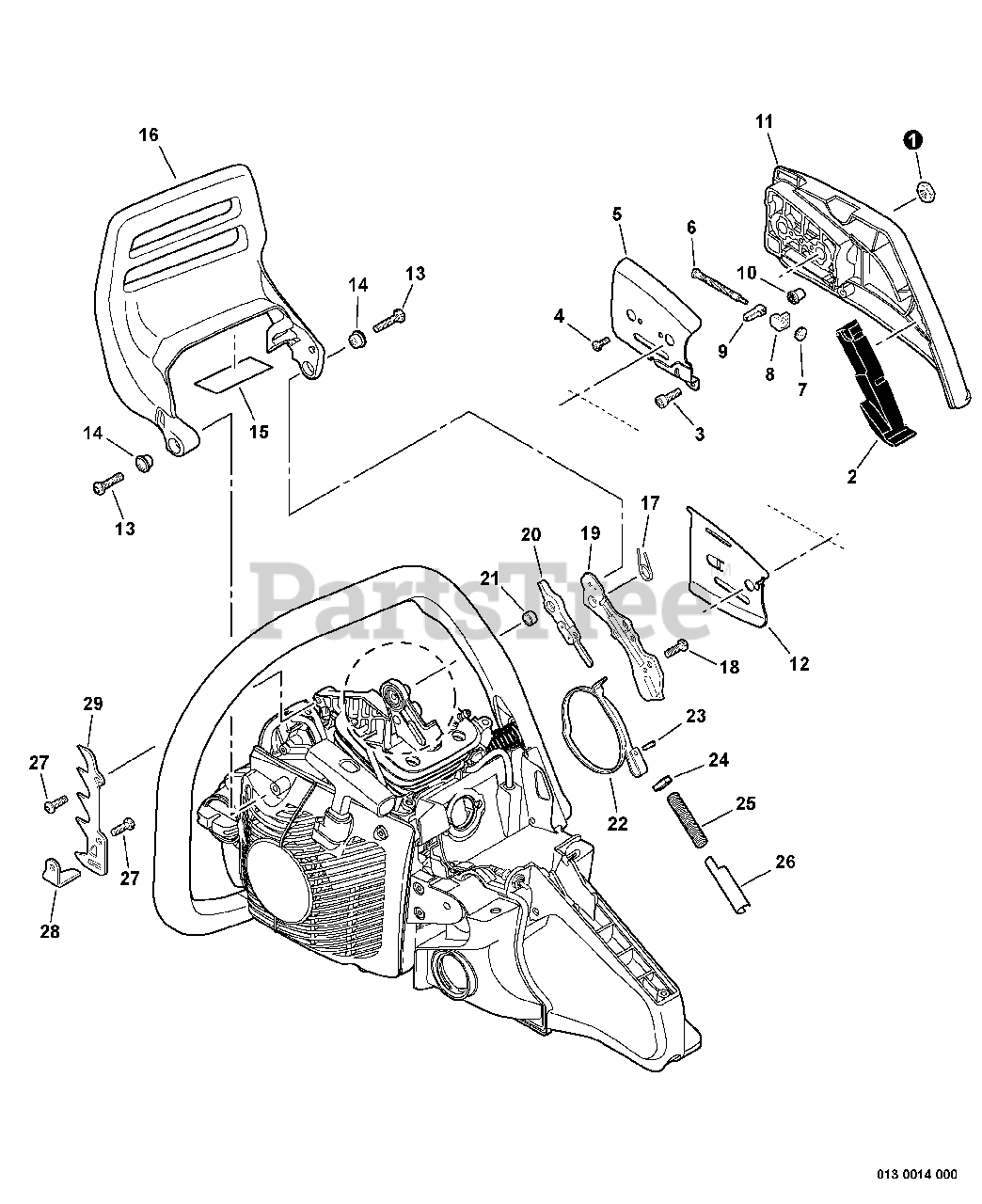

Chain Brake Parts Diagram

  • Title

1

Echo V265000250

NUT - 8

$0.99

$

In Stock, Qty 20+

0

2

Echo C302000011

CUSHION

$11.99

$

In Stock, only 2 left!

0

3

Echo V804000000

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

4

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, Qty 11

0

5

Echo C305000100

PLATE, GUIDE - OUTER
(Superseded to C305000101)

$11.99

$

In Stock, only 4 left!

0

6

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

7

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

8

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

9

Echo C309000160

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

10

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

11

Echo C300000410

GUARD, SPROCKET
(Superseded to C300000412)

$55.99

$

In Stock, only 2 left!

0

12

Echo C305000110

PLATE, GUIDE - INNER
(Superseded to C305000111)

$14.99

$

In Stock, only 1 left!

0

13

Echo V805000000

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

14

Echo V356000440

COLLAR

$3.49

$

In Stock, Qty 20+

0

15

Echo V341000130

DEFLECTOR, HEAT
(Superseded to V341000131)

$2.99

$

In Stock, Qty 11

0

16

Echo C320000180

LEVER, BRAKE
(Superseded to C320000182)

$30.99

$

In Stock, Qty 20+

0

17

Echo V452000400

SPRING

$3.49

$

In Stock, Qty 12

0

18

Echo V805000000

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

19

Echo C345000282

COVER, BRAKE
(Superseded to C345000283)

$8.49

$

In Stock, Qty 7

0

20

Echo C334000110

CONNECTOR, BRAKE
(Superseded to C334000111)

$16.99

$

In Stock, Qty 12

0

21

Echo V356000470

SPACER

$6.49

$

In Stock, only 1 left!

0

22

Echo C328000121

BAND, BRAKE

$14.99

$

In Stock, Qty 6

0

23

Echo 9305030080

PIN

$0.99

$

In Stock, only 3 left!

0

24

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 15

0

25

Echo V450000740

SPRING

$14.99

$

In Stock, only 1 left!

0

26

Echo C603000220

GUIDE, SPRING

$3.99

$

In Stock, only 1 left!

0

27

Echo V805000000

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

28

Echo C310000010

CATCHER, CHAIN

$3.99

$

In Stock, Qty 11

0

29

Echo C304000040

SPIKE
(Superseded to C304000180)

$8.99

$

In Stock, Qty 10

0
