CS-601 S - Echo Chainsaw Front Handle Parts Diagram

Chainsaw

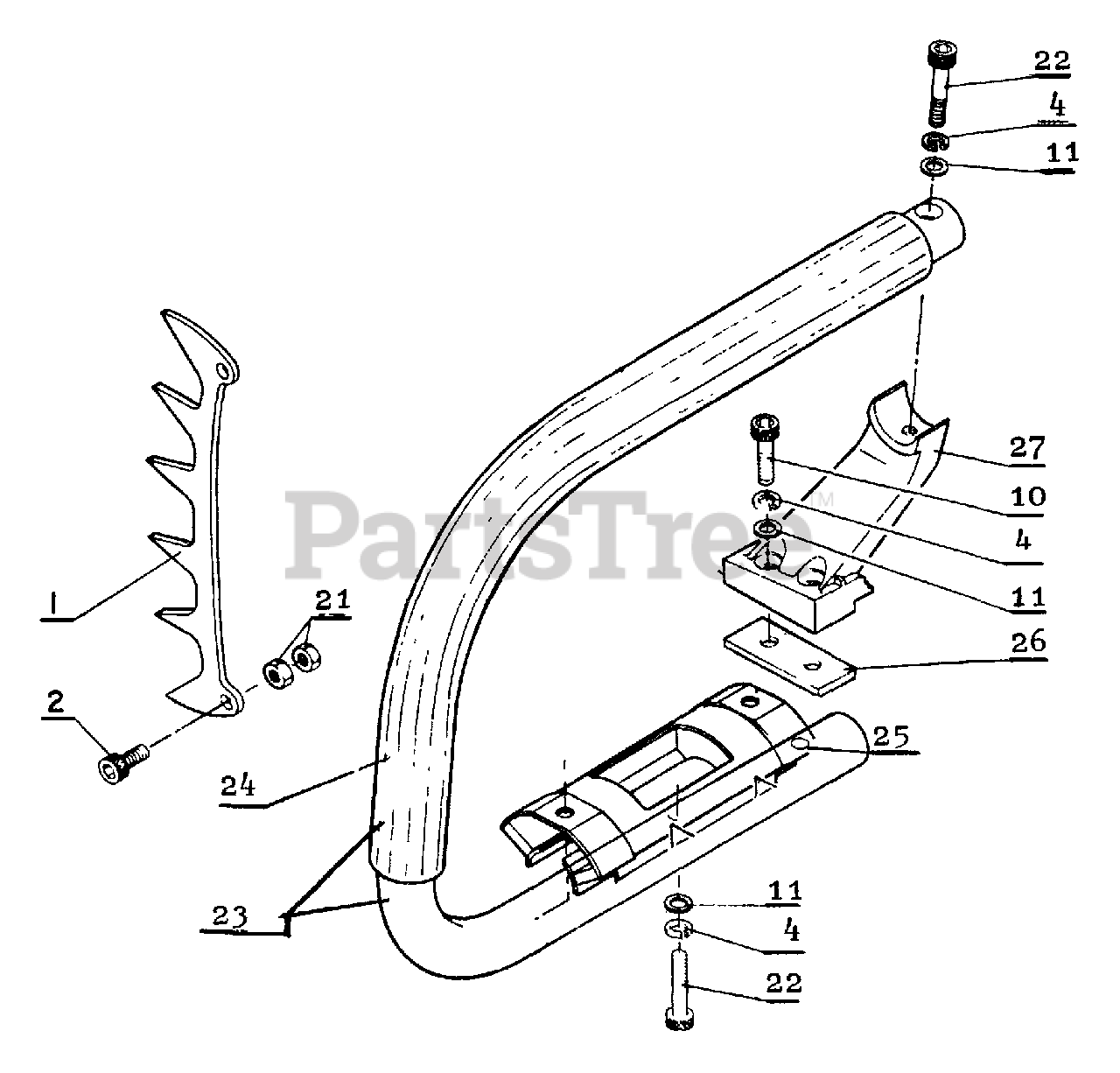

Front Handle Parts Diagram

  • Title

1

Echo 88021002830

BUMPER, SPIKED
(Superseded to Discontinued)

$

$

Not available

2

Echo 90010505015

SCREW - 5×15

$1.49

$

Usually ships in 2-4 days

0

4

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

10

Echo 90010505020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

11

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

21

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

Note: Exclusive for CS-601S

$1.49

$

In Stock, Qty 14

0

22

Echo 90010505025

BOLT 5×25

Note: Exclusive for CS-601S

$1.49

$

In Stock, Qty 9

0

23

Echo 35120502831

HANDLE - FRONT
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

24

Echo 35121300230

HANDLE, FRONT
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

25

Echo 35123402830

ADAPTOR, CRANKCASE
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

26

Echo 35122802830

RUBBER CUSHION, FRONT HANDLE
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

27

Echo 35122502831

HANDLE, SUPPORT
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available
