CS-601 S - Echo Chainsaw Rear Handle Parts Diagram

Engine: 2-cycle, single-cylinder, 3.7 cu in (1.89x1.33"), air-cooled. Power: 0.8 hp (1.69 hp metric) or 0.41 hp (0.845 hp metric). Magnet: NGK BM-6A. Ignition: Tillotson HS-94A diaphragm. Carburetor: 20:1 gasoline-oil mix for 2-cycle. Starting: recoil, manual/automatic. Lubrication: combined, automatic centrifugal clutch; chain oil Kyoritsu. Transmission: automatic centrifugal clutch. Chain: 20" (20k50), pitch 3/8", gauge 0.050". Weight: 14.3 lb (without bar & chain). Fuel & oil tank capacities not specified.

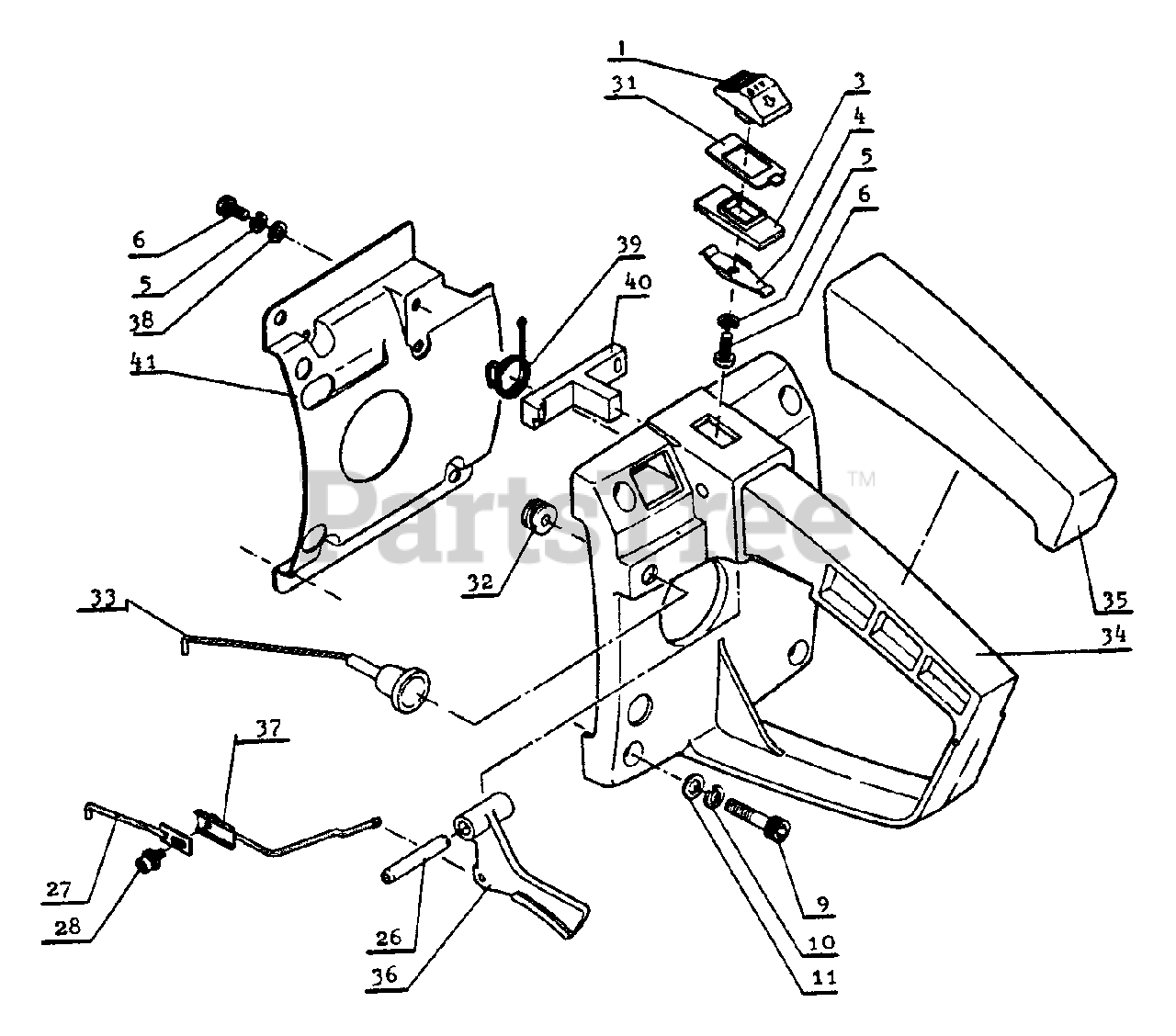

Rear Handle Parts Diagram

  • Title

1

Echo 16341002830

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

3

Echo 16341102830

GUIDE, SWITCH

$3.99

$

Usually ships in 2-4 days

0

4

Echo 16341200630

CONTACT, SWITCH

$1.99

$

Usually ships in 2-4 days

0

5

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

6

Echo 90022004010

SCREW 4×10

$

$

Not available

9

Echo 90010505020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

10

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 6

0

11

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

26

Echo 17811002830

PIN
(Superseded to Discontinued)

$

$

Not available

27

Echo 17803202830

ROD, THROTTLE - B
(Superseded to Discontinued)

$

$

Not available

28

Echo 17801802831

SCREW - 3×6
(Superseded to Discontinued)

$

$

Not available

31

Echo 16341302830

PLATE, SWITCH

Note: Exclusive for CS-601S

$1.99

$

Usually ships in 2-4 days

0

32

Echo 17881000230

GROMMET

Note: Exclusive for CS-601S

$2.49

$

Usually ships in 2-4 days

0

33

Echo 17850102830

ROD, CHOKE

Note: Exclusive for CS-601S

$

$

Currently unavailable

34

Echo 35101002830

HANDLE - REAR
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

35

Echo 35101202830

HANDLE, REAR
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

36

Echo 17801002830

TRIGGER, THROTTLE
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

37

Echo 17800602830

LEVER, THROTTLE
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

38

Echo 90060000004

WASHER 4 MM

Note: Exclusive for CS-601S

$0.99

$

In Stock, Qty 9

0

39

Echo 17981202830

SPRING
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

40

Echo 17981002830

LEVER, DECOMPRESSION
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available

41

Echo 10151402830

COVER, ENGINE
(Superseded to Discontinued)

Note: Exclusive for CS-601S

$

$

Not available
