CS-601 SVL - Echo Chainsaw Fuel Line Parts Diagram

Chainsaw

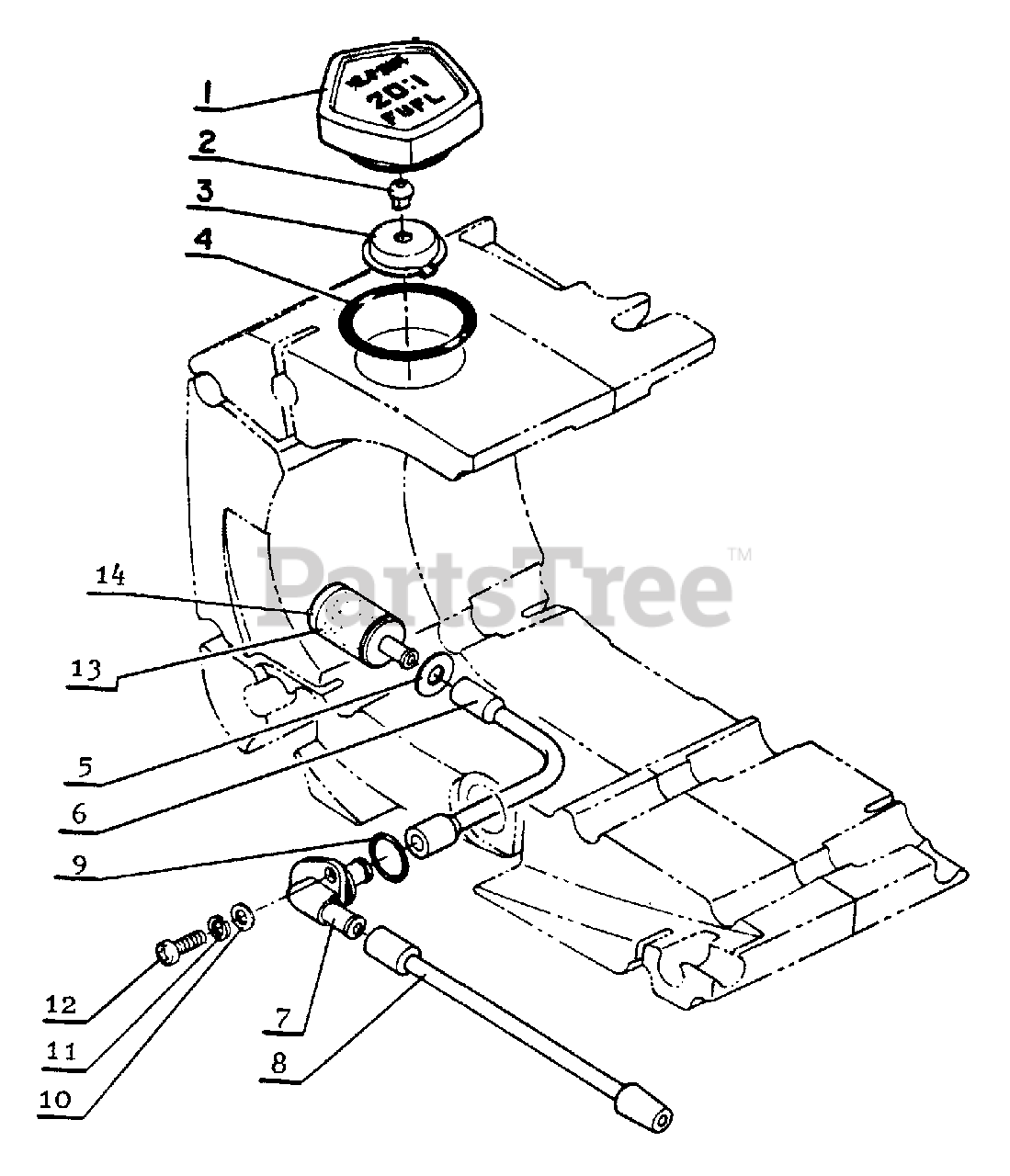

Fuel Line Parts Diagram

  • Title

1

Echo 13100110231

CAP ASSY
(Superseded to 13160010231)

Note: Consists of 1,2,3

$

$

Not available

2

Echo 13131400330

VALVE, CHECK

$13.99

$

In Stock, only 2 left!

0

3

Echo 13101500830

HOLDER, VENT

$3.99

$

In Stock, only 1 left!

0

4

Echo 90072000029

O-RING 29

$3.99

$

In Stock, Qty 13

0

5

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 13201002833

PIPE, FUEL - INNER
(Superseded to 13201002834)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

7

Echo 13201102832

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

8

Echo 13201202830

PIPE, FUEL - OUTER
(Superseded to 13201810631)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

9

Echo 90072000012

O-RING 12 MM

$1.99

$

In Stock, only 1 left!

0

10

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

11

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

12

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0

Echo 13120005330

FILTER, FUEL
(Superseded to 13120002830)

Note: Includes items 13 and 14

$9.99

$

In Stock, Qty 20+

0

13

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

14

Echo 13121402830

FUEL STRAINER COVER
(Superseded to Discontinued)

$

$

Not available
