CS-601 SVL - Echo Chainsaw Oiler Parts Diagram

Chainsaw

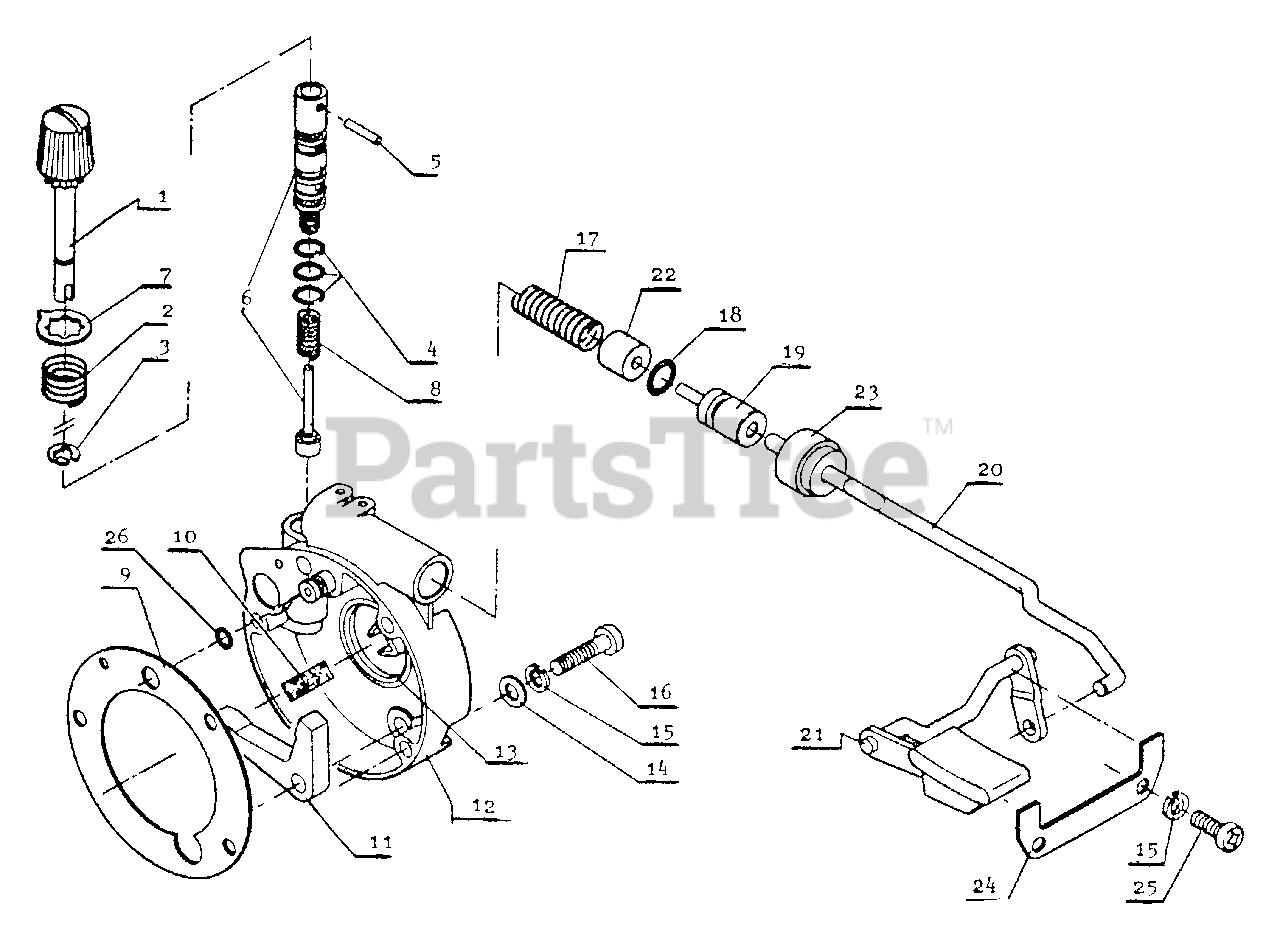

Oiler Parts Diagram

  • Title

1

Echo 43700902830

KNOB
(Superseded to Discontinued)

$

$

Not available

2

Echo 43701502832

SPRING
(Superseded to Discontinued)

$

$

Not available

3

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 43702002830

O-RING

$2.49

$

In Stock, Qty 7

0

5

Echo 43704002830

PIN, SPRING
(Superseded to 90034016010)

$0.99

$

Usually ships in 2-4 days

0

6

Echo 43700202831

PUMP KIT
(Superseded to 43700002830)

$

$

Not available

7

Echo 43704702831

DIAL, AUTO-OILER
(Superseded to Discontinued)

$

$

Not available

8

Echo 43701902830

SPRING

$1.49

$

In Stock, only 3 left!

0

9

Echo 43703802830

OIL PUMP BODY GASKET
(Superseded to Discontinued)

$

$

Not available

10

Echo 43705002830

PAD
(Superseded to Discontinued)

$

$

Not available

11

Echo 43703702831

CAM ARM
(Superseded to Discontinued)

$

$

Not available

12

Echo 43700502833

OIL PUMP BODY
(Superseded to Discontinued)

Note: Includes ITEM 13

$

$

Not available

13

Echo 43704202830

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

14

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

15

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

16

Echo 90022004018

SCREW 4×18

$0.99

$

Usually ships in 2-4 days

0

17

Echo 43711100231

SPRING, OIL PUMP

$2.49

$

Usually ships in 2-4 days

0

18

Echo 90072000006

O-RING 6 MM

$1.49

$

In Stock, only 1 left!

0

19

Echo 43711202830

PISTON, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

20

Echo 70701003630

OIL PUMP ROD
(Superseded to Discontinued)

$

$

Not available

21

Echo 70700503631

OIL PUMP LEVER
(Superseded to Discontinued)

$

$

Not available

22

Echo 43712002830

RETAINER, SPRING
(Superseded to Discontinued)

$

$

Not available

23

Echo 43705302831

PISTON COVER
(Superseded to Discontinued)

$

$

Not available

24

Echo 70711203630

OIL PUMP LEVER RETAINER
(Superseded to Discontinued)

$

$

Not available

25

Echo 90022004010

SCREW 4×10

$

$

Not available

26

Echo 43705602830

O-RING

$1.99

$

Usually ships in 2-4 days

0
