CS-602 VL - Echo Chainsaw Clutch And Guide Bar Parts Diagram

Chainsaw

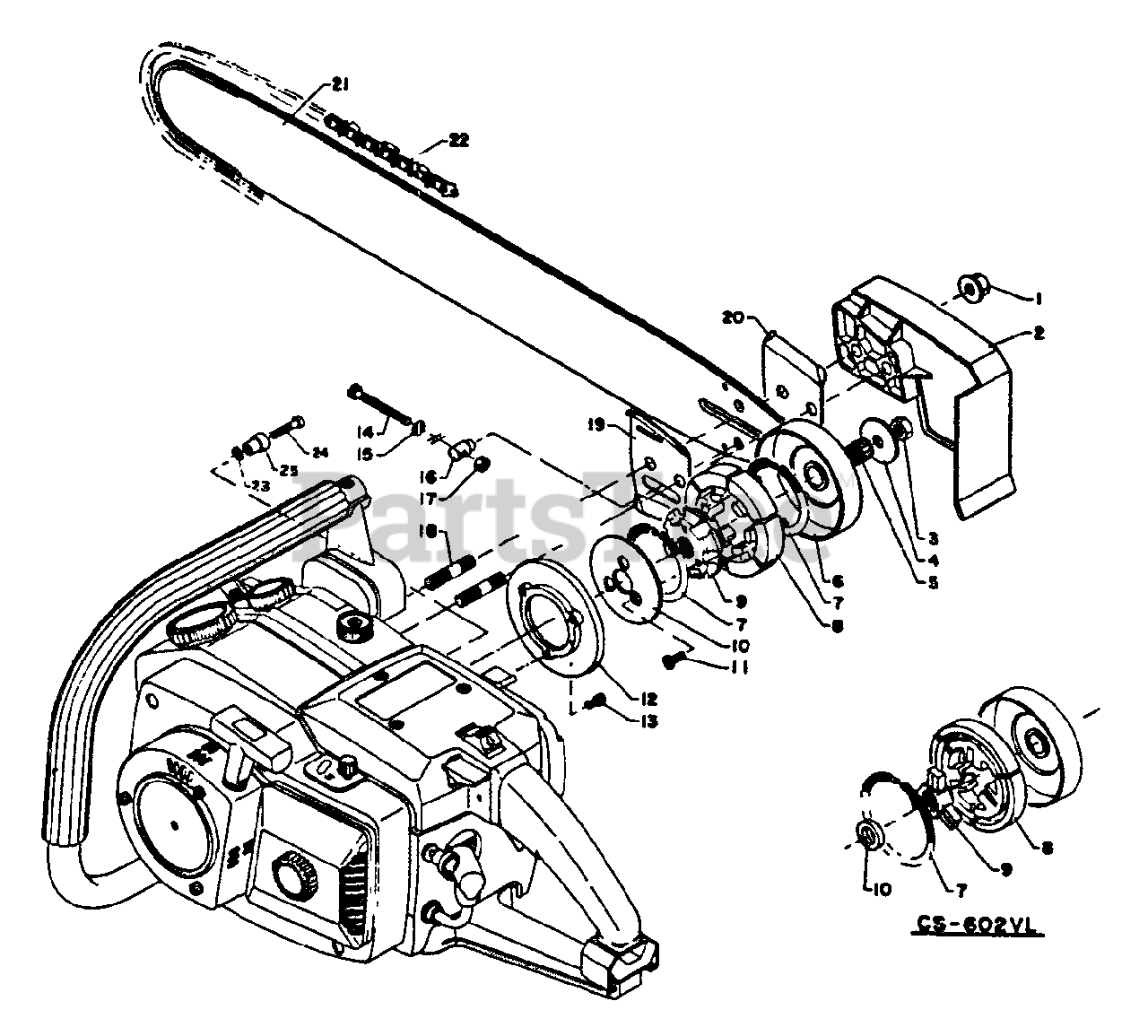

Clutch And Guide Bar Parts Diagram

  • Title

1

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

2

Echo 43301010230

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

3

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.49

$

In Stock, Qty 12

0

4

Echo 17501503430

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

5

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

Note: (KTV 10, 14, 12, 5)

$10.99

$

In Stock, Qty 11

0

6

Echo 17500510230

DRUM, CLUTCH
(Superseded to 17500512130)

$

$

Not available

6

Echo 17500610230

DRUM, CLUTCH
(Superseded to Discontinued)

Note: Pitch 404 - Optional

$

$

Not available

Echo 17500010230

CLUTCH ASSY
(Superseded to 17500010231)

Note: Includes Items 7-9 Below;Order P/N 17501810230 for model 702VL or P/N 17501802831 for model CS-602VL

$

$

Not available

Echo 17500003430

CLUTCH ASSY
(Superseded to 17500016130)

$

$

Not available

7

Echo 17501810230

SPRING, CLUTCH
(Superseded to 17501810231)

$

$

Not available

7

Echo 17501802831

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

8

Echo 17501700430

SHOE, CLUTCH

$11.99

$

In Stock, only 1 left!

0

8

Echo 17501802830

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

9

Echo 17501610230

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

9

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

$

$

Not available

10

Echo 17501910231

PLATE, CLUTCH

$9.99

$

Usually ships in 2-4 days

0

10

Echo 17501410330

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

11

Echo 90021405012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

12

Echo 17531010230

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

13

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

14

Echo 43301602830

SCREW, TENSIONER

$3.99

$

In Stock, only 1 left!

0

15

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

16

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

17

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

In Stock, only 3 left!

0

18

Echo 43301112330

STUD, GUIDE BAR

$2.49

$

In Stock, only 4 left!

0

19

Echo 43301302830

PLATE, GUIDE - INNER
(Superseded to 43301312332)

$6.49

$

In Stock, only 2 left!

0

20

Echo 43301212331

PLATE, GUIDE - OUTER
(Superseded to 43301212332)

$6.49

$

In Stock, only 3 left!

0

21

Echo 43021312331

GUIDE BAR - 60M50

$

$

Currently unavailable

21

Echo 43021210230

GUIDE BAR - 50" (127cm)

Note: CS-602VL ONLY

$

$

Currently unavailable

22

Echo 43101310330

SAW CHAIN - 72LP-84E

$

$

Currently unavailable

22

Echo 43101210330

SAW CHAIN - 72LP-72E

Note: CS-602VL ONLY

$

$

Currently unavailable

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, Qty 5

0

25

Echo 43300612830

CATCHER, CHAIN
(Superseded to 43300012830)

$

$

Not available
