CS-602 VL - Echo Chainsaw Magneto And Starter For Models CS-702VL And CS-602VL Parts Diagram

CS-602VL - 2-cycle, air-cooled, single-cylinder, 59.8 cc (46 x 36 mm) - Bore x stroke: 46 mm x 36 mm, 3.6 cu in. - Magneto: flywheel, rev counter-clockwise. - Plug: NGK BM-6A. - Carburetor: Tillotson diaphragm, HS-94A/HS-166A. - Fuel: 20 : 1 gasoline-oil mix. - Cooling: forced air; starting: recoil starter. - Lubrication: manual & auto oiler. - Transmission: centrifugal clutch. - Fuel tank: 0.75 L; oil tank: 0.3 L. - Chain: 3/8" pitch, 0.050" gauge. - Bar: 24k50/60m50. - Dry weight: 7.5 kg (bar & chain excluded).

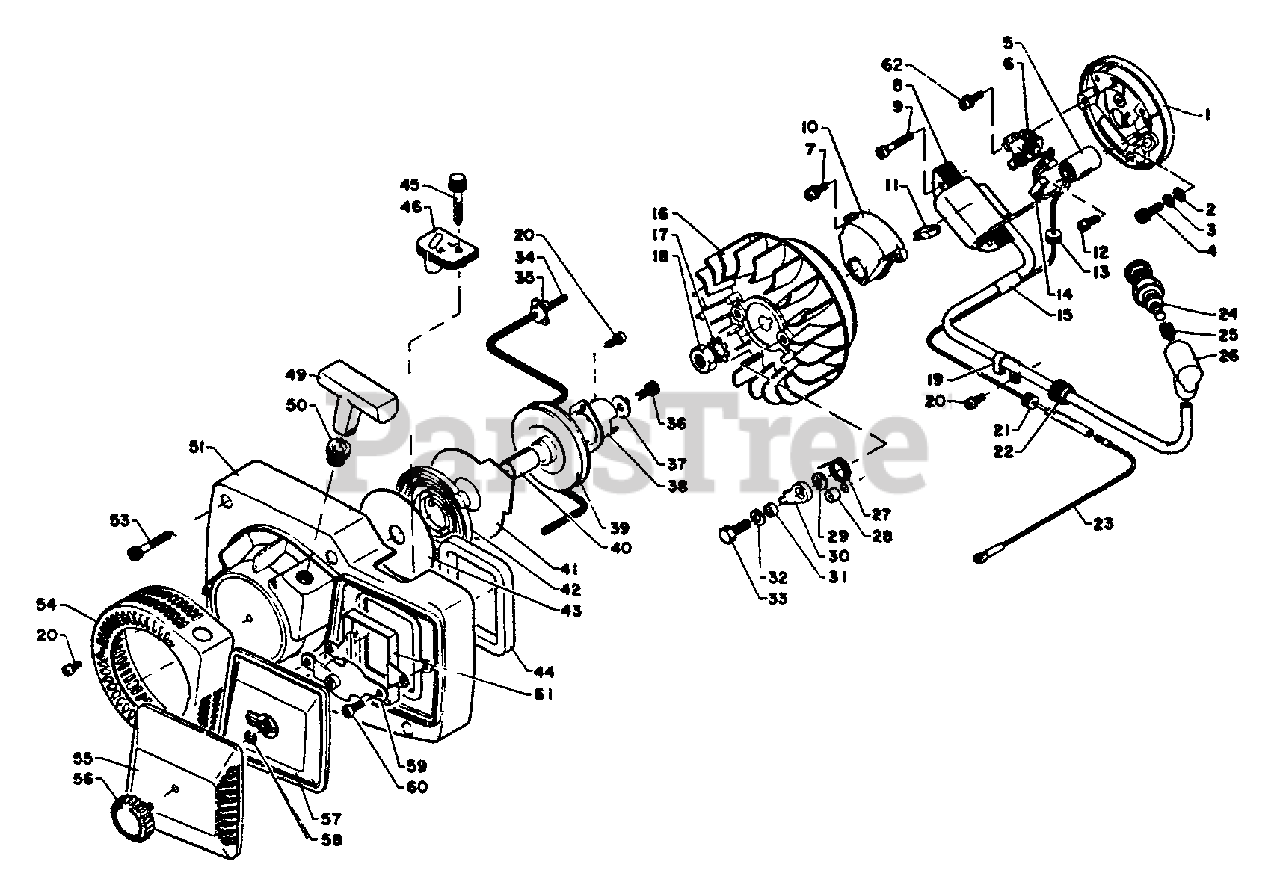

Magneto And Starter For Models CS-702VL And CS-602VL Parts Diagram

  • Title

Echo 15600010230

IGNITION ASSY
(Superseded to Discontinued)

Note: Comprising P/N 15610010230 and items 5 thru 16 plus item 62.

$

$

Not available

1

Echo 15613203731

PLATE, STATOR

$14.99

$

Usually ships in 2-4 days

0

2

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 7

0

4

Echo 90010505015

SCREW - 5×15

$1.49

$

Usually ships in 2-4 days

0

5

Echo 15612703731

CONDENSER
(Superseded to Discontinued)

$

$

Not available

6

Echo 15610110230

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

7

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

8

Echo 15312602830

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

9

Echo 90024104025

SCREW 4×25
(Superseded to Discontinued)

$

$

Not available

10

Echo 15612803730

COVER, BREAKER

$6.49

$

Usually ships in 2-4 days

0

11

Echo 15613403730

PAD, OIL
(Superseded to Discontinued)

$

$

Not available

12

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

13

Echo 15611403731

GROMMET
(Superseded to Discontinued)

$

$

Not available

14

Echo 15613503730

GROMMET
(Superseded to Discontinued)

$

$

Not available

15

UNKNOWN

$

$

Not available

16

Echo 15620010230

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

17

Echo 90061100010

WASHER, LOCK

$0.99

$

Usually ships in 2-4 days

0

18

Echo 10014402830

NUT

$1.49

$

In Stock, only 4 left!

0

19

Echo 15911010230

CLIP, CORD
(Superseded to Discontinued)

$

$

Not available

20

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 15411103430

GROMMET
(Superseded to 15411103431)

$1.99

$

Usually ships in 2-4 days

0

22

Echo 15311002830

GROMMET

$0.99

$

Usually ships in 2-4 days

0

23

Echo 15613103731

LEAD - GROUND

$6.49

$

Usually ships in 2-4 days

0

24

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

25

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

26

Echo 15901203433

CAP, SPARK PLUG

Note: Optional: P/N 15901210230 = Anti radio interference plug cap.

$8.49

$

In Stock, Qty 20+

0

26

Echo 15901210230

CAP, SPARK PLUG

Note: OPTIONAL

$13.99

$

Usually ships in 2-4 days

0

27

Echo 17723402831

SPRING

$2.99

$

Usually ships in 2-4 days

0

28

Echo 17724502830

CAP

$0.99

$

In Stock, Qty 6

0

29

Echo 17802000310

WASHER

$0.99

$

In Stock, only 1 left!

0

30

Echo 17721802830

PAWL, STARTER

$7.49

$

Usually ships in 2-4 days

0

31

Echo 17724702830

SPACER

$

$

Not available

32

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

33

Echo 90010006016

BOLT 6×16

$0.99

$

Usually ships in 2-4 days

0

34

Echo 17722602830

ROPE, STARTER
(Superseded to 17722607060)

$12.99

$

In Stock, only 2 left!

0

35

Echo 17724602832

RETAINER, ROPE

$

$

Not available

36

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

37

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

Usually ships in 2-4 days

0

38

Echo 17724302833

PAWL CATCHER

$12.99

$

Usually ships in 2-4 days

0

39

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

40

Echo 17721602832

BUSHING

$1.99

$

In Stock, only 1 left!

0

41

Echo 17724202832

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

42

Echo 17722002834

SPRING, RECOIL

$25.99

$

In Stock, Qty 12

0

43

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, Qty 7

0

44

Echo 13032002831

GASKET, CARBURETOR CASE
(Superseded to Discontinued)

$

$

Not available

45

Echo 17800703430

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

46

Echo 17821202831

GROMMET
(Superseded to Discontinued)

$

$

Not available

49

Echo 17722812330

HANDLE

$30.99

$

In Stock, Qty 10

0

50

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

51

Echo 10150702834

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

54

Echo 10061602831

FILTER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

55

Echo 13031302830

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

56

Echo 13040610230

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

57

Echo 13031010230

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

58

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

59

Echo 13040502830

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

60

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

60

Echo 17720002834

STARTER ASSY
(Superseded to Discontinued)

Note: Comprising items 20, 34 thru 43 and 49 thru 51 and Item 54.

$

$

Not available

60

Echo 15610010230

STATOR ASSY
(Superseded to Discontinued)

Note: Comprising items 5 thru 14 and item 62.

$

$

Not available

61

Echo 13042402830

BRACKET

$8.99

$

Usually ships in 2-4 days

0

62

Echo 15313302830

SCREW
(Superseded to Discontinued)

$

$

Not available
