CS-620 P - Echo Chainsaw (SN: C26712001001 - C26712999999) Fuel System, Handle Parts Diagram

Chainsaw

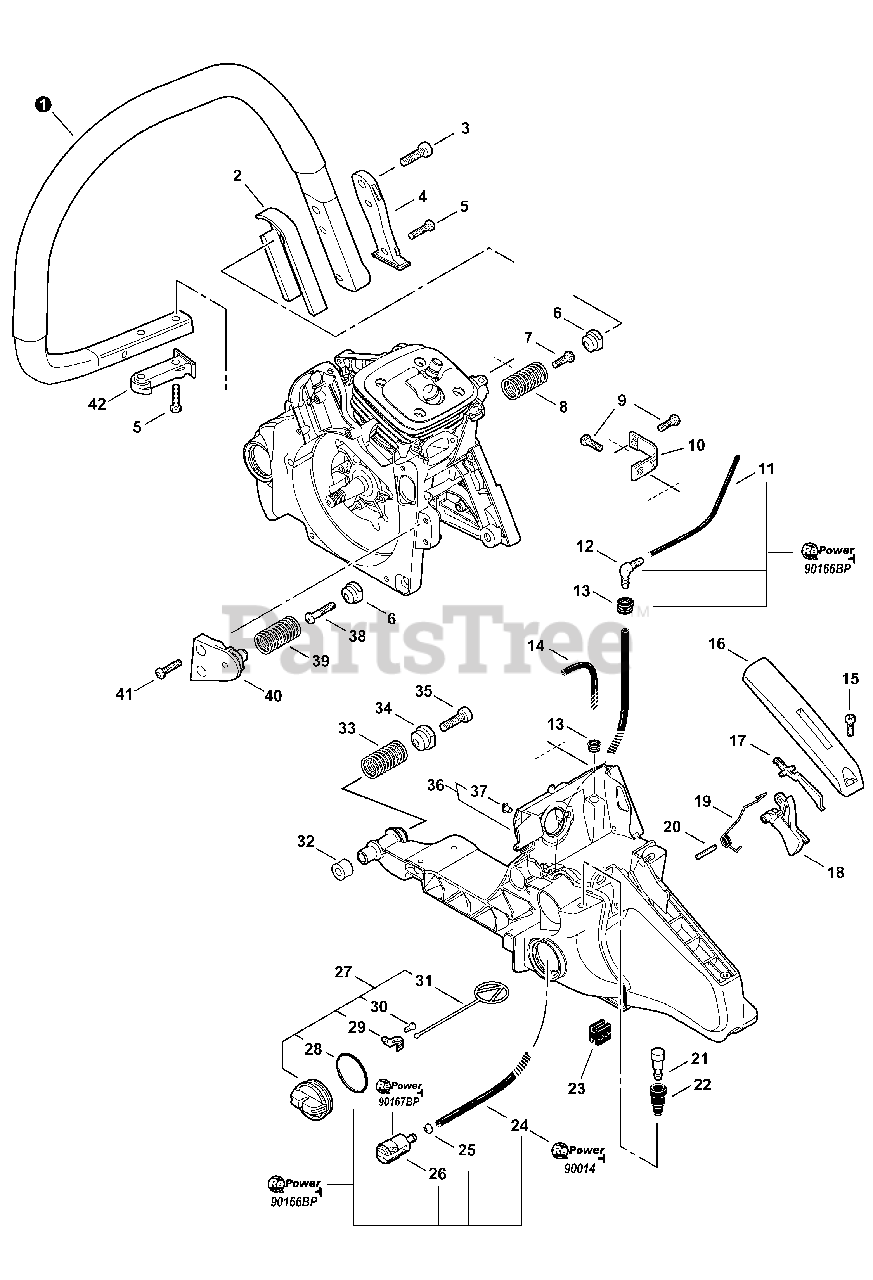

Fuel System, Handle Parts Diagram

  • Title

1

Echo C400001171

HANDLE, FRONT

$97.99

$

In Stock, only 1 left!

0

2

Echo V456000280

HOLDER, SPRING

$2.99

$

In Stock, only 2 left!

0

3

Echo V806000000

BOLT, TORX 6×20

$1.99

$

In Stock, Qty 5

0

4

Echo C405000560

MOUNT, HANDLE

$2.99

$

Usually ships in 2-4 days

0

5

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo V456000080

HOLDER, SPRING Ø14.4

$3.49

$

In Stock, only 3 left!

0

7

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

8

Echo V450000730

SPRING, COMPRESSION Ø17×38.4×2.6

$10.99

$

In Stock, only 2 left!

0

9

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo C617000362

STRAP, SAFETY

$3.49

$

In Stock, only 2 left!

0

11

Echo V471003860

PIPE, FUEL 3×6×135
(Superseded to V471003861)

Note: See RePower Maintenance Kits

$5.99

$

In Stock, only 2 left!

0

12

Echo V186000500

CONNECTOR, PIPE

Note: See RePower Maintenance Kits

$0.99

$

In Stock, Qty 20+

0

13

Echo 13211501461

GROMMET
(Superseded to 13211501462)

Note: See RePower Maintenance Kits

$1.99

$

In Stock, Qty 20+

0

14

Echo 13011030830

PIPE, IMPULSE 3×6(8)×160
(Superseded to 13011030831)

$3.49

$

In Stock, only 2 left!

0

15

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

16

Echo C411000001

COVER, HANDLE

$9.99

$

In Stock, only 2 left!

0

17

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 1 left!

0

18

Echo C450000360

TRIGGER, THROTTLE

$5.49

$

In Stock, only 2 left!

0

19

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 20+

0

20

Echo 90034540025

PIN, SPRING 4×25 SUS

$1.99

$

In Stock, Qty 13

0

21

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 7

0

22

Echo A359000000

GROMMET, VENT
(Superseded to A359000001)

$8.99

$

In Stock, only 2 left!

0

23

Echo 15011404920

GROMMET, LEAD

$1.49

$

In Stock, Qty 5

0

24

Echo V471000600

PIPE, FUEL 3×5×120 BLACK
(Superseded to V471000601)

Note: See RePower Maintenance Kits

$1.49

$

In Stock, only 2 left!

0

25

Echo V490001240

CLIP Ø6

Note: See RePower Maintenance Kits

$0.99

$

In Stock, Qty 9

0

26

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

Note: See RePower Maintenance Kits

$9.99

$

In Stock, Qty 20+

0

27

Echo P021037420

CAP ASSY, FUEL

Note: Includes Items 28-31

$4.49

$

In Stock, Qty 18

0

28

Echo V581000600

O-RING 29

Note: See RePower Maintenance Kits

$2.99

$

In Stock, only 2 left!

0

29

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

30

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

31

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

32

Echo V404000210

CUSHION 10

$5.49

$

In Stock, only 2 left!

0

33

Echo V450000770

SPRING, COMPRESSION Ø20×40×3.3
(Superseded to V450000771)

$10.99

$

In Stock, only 2 left!

0

34

Echo V456000101

HOLDER, SPRING Ø17

$3.49

$

In Stock, only 2 left!

0

35

Echo V806000000

BOLT, TORX 6×20

$1.99

$

In Stock, Qty 5

0

36

Echo C410001252

HANDLE, REAR

Note: Includes Item 37

$102.99

$

In Stock, only 1 left!

0

37

Echo V263000450

NUT M5

$2.49

$

In Stock, only 2 left!

0

38

Echo V805000230

BOLT, TORX 5×25

$1.49

$

In Stock, only 3 left!

0

39

Echo V450000760

SPRING, COMPRESSION Ø17×36.7×2.6

$9.49

$

In Stock, only 2 left!

0

40

Echo V456000090

HOLDER, SPRING

$4.99

$

In Stock, Qty 6

0

41

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

42

Echo C405000570

MOUNT, HANDLE

$2.49

$

In Stock, Qty 13

0
