CS-620 P - Echo Chainsaw (SN: C26813001001 - C26813999999) Chain Brake Parts Diagram

Chainsaw

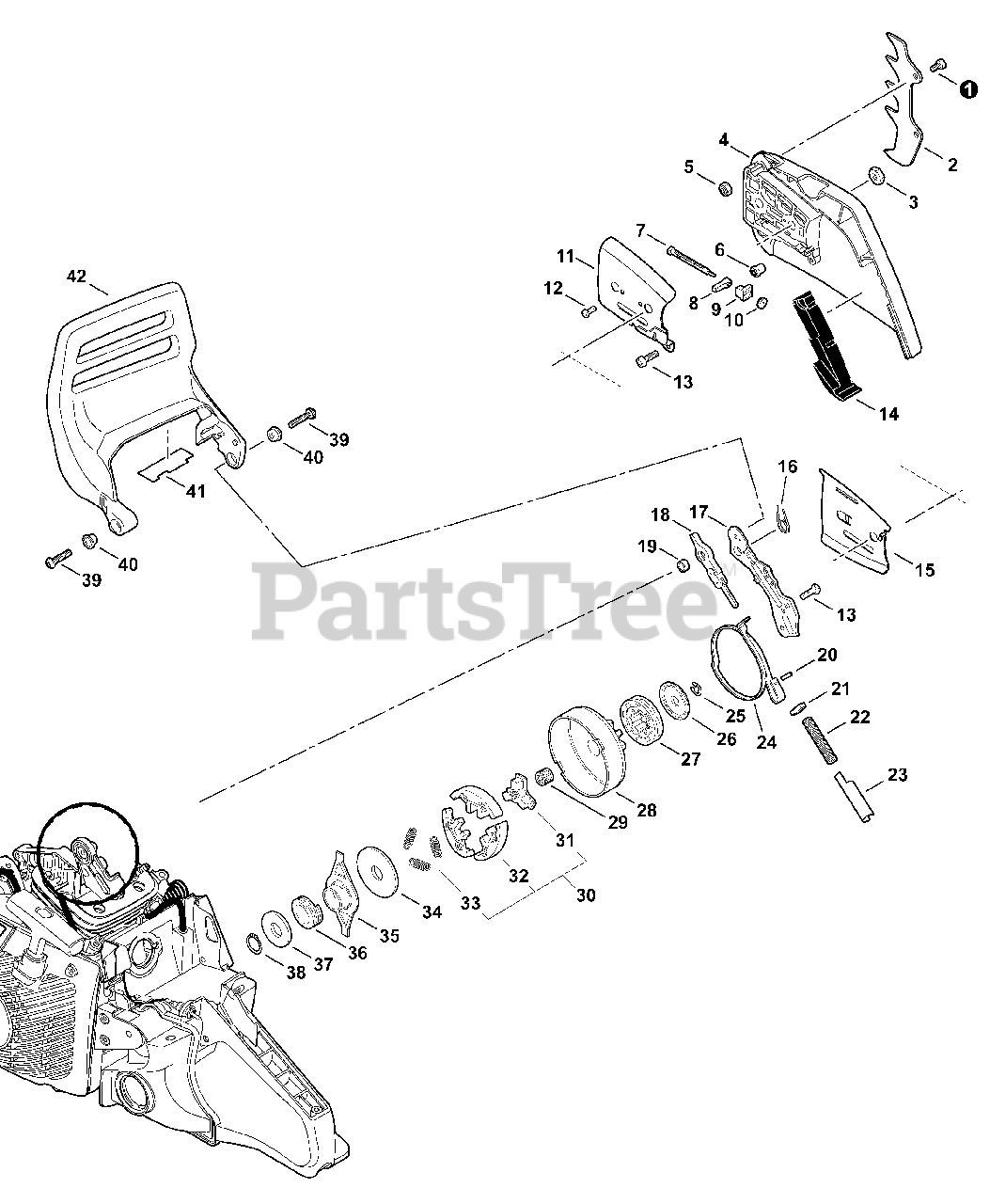

Chain Brake Parts Diagram

  • Title

1

Echo V805000300

BOLT, TORX 5×12

$1.99

$

In Stock, Qty 14

0

2

Echo C304000300

SPIKE, BUMPER

$24.99

$

In Stock, only 1 left!

0

3

Echo V265000250

NUT 8

$1.49

$

In Stock, Qty 11

0

4

Echo C300000991

GUARD, SPROCKET
(Superseded to C300001200)

$61.99

$

In Stock, only 1 left!

0

5

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

6

Echo V651001040

GEAR, BEVEL

$18.99

$

In Stock, Qty 9

0

7

Echo V203002140

SCREW, CHAIN TENSION 63 MM

$6.99

$

In Stock, Qty 8

0

8

Echo C309000160

TENSIONER, CHAIN

$6.99

$

In Stock, Qty 19

0

9

Echo V651001050

GEAR, BEVEL

$8.99

$

In Stock, Qty 9

0

10

Echo V355000800

COLLAR 8

$1.99

$

In Stock, Qty 20+

0

11

Echo C305000101

PLATE, GUIDE - OUTER

$14.99

$

In Stock, only 2 left!

0

12

Echo 9132503005

SCREW 3×5

$0.99

$

In Stock, Qty 8

0

13

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

14

Echo C302000011

CUSHION

$14.99

$

In Stock, Qty 7

0

15

Echo C305000111

PLATE, GUIDE - INNER

$16.99

$

In Stock, only 2 left!

0

16

Echo V452000400

SPRING, TORSION

$3.99

$

In Stock, Qty 11

0

17

Echo C345000283

COVER, BRAKE

$10.99

$

In Stock, Qty 7

0

18

Echo C334000110

CONNECTOR, BRAKE
(Superseded to C334000111)

$19.99

$

In Stock, only 3 left!

0

19

Echo V356000470

SPACER 12×10×T: 1.0

$7.49

$

In Stock, only 2 left!

0

20

Echo 9305030098

PIN, SPRING 3x-9.8

$0.99

$

In Stock, Qty 20+

0

21

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

22

Echo V450000740

SPRING, COMPRESSION Ø12×70.5

$17.99

$

In Stock, only 2 left!

0

23

Echo C603000220

PLATE, SIDE

$4.99

$

In Stock, only 2 left!

0

24

Echo C328000121

BAND, BRAKE

$16.99

$

In Stock, only 2 left!

0

25

Echo V583000440

E-RING Ø8.1

$1.99

$

In Stock, Qty 20+

0

26

Echo V307000520

WASHER 10

$2.49

$

In Stock, only 2 left!

0

27

Echo 17503314731

SPROCKET, RIM 3/8"×7T

$17.99

$

In Stock, Qty 7

0

28

Echo A556001610

DRUM, CLUTCH

$79.99

$

In Stock, only 2 left!

0

29

Echo V555000160

BEARING, NEEDLE 10
(Superseded to V555000010)

$11.99

$

In Stock, Qty 18

0

30

Echo A056000221

CLUTCH ASSY

Note: Includes Items 31-33

$69.99

$

In Stock, only 3 left!

0

31

Echo A552000110

HUB, CLUTCH

$76.99

$

Usually ships in 2-4 days

0

32

Echo P021007051

SHOE SET, CLUTCH (3PCS)

$40.99

$

In Stock, only 2 left!

0

33

Echo V451000500

SPRING, TENSION

$3.99

$

In Stock, Qty 11

0

34

Echo A551000110

PLATE, CLUTCH

$10.99

$

In Stock, Qty 6

0

35

Echo V358000090

COLLAR 15×19×73

$15.99

$

In Stock, Qty 16

0

36

Echo V652000050

GEAR, WORM

$13.99

$

In Stock, only 2 left!

0

37

Echo V311000090

WASHER 15.5×22.5×0.5

$2.49

$

In Stock, Qty 20+

0

38

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 2 left!

0

39

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

40

Echo V356000440

COLLAR 11.2×16.2×T0.6

$3.99

$

In Stock, Qty 12

0

41

Echo V341000131

SHIELD, HEAT 75×27×0.15

$3.49

$

In Stock, only 2 left!

0

42

Echo C320000182

LEVER, BRAKE

$30.99

$

Usually ships in 2-4 days

0
