CS-620 P - Echo Chainsaw (SN: C32026001001 - C32026999999) Engine Cover, Oil System Parts Diagram

Chainsaw

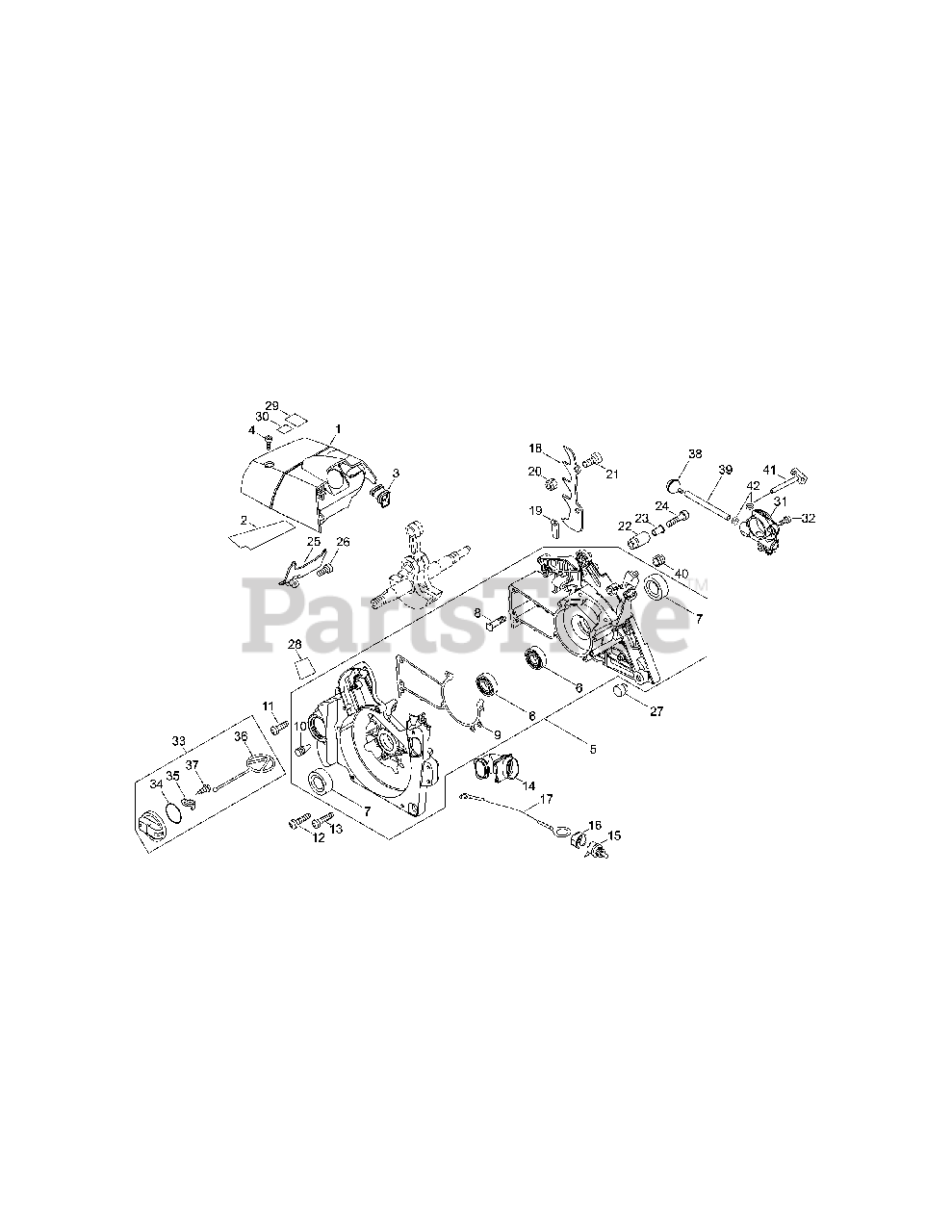

Engine Cover, Oil System Parts Diagram

  • Title

1

Echo A160001081

COVER, ENGINE

$21.99

$

In Stock, only 2 left!

0

2

Echo V341000140

SHIELD, HEAT 75×32×0.15

$3.49

$

In Stock, only 1 left!

0

3

Echo A239000070

PIPE, INTAKE

$7.49

$

In Stock, only 1 left!

0

4

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

5

Echo P021044011

CRANKCASE KIT
(Superseded to P200001310)

Note: Includes Items 6-10

$166.99

$

Usually ships in 2-4 days

0

6

Echo 9403646202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

7

Echo V508000010

SEAL, OIL 15
(Superseded to V508000100)

$6.49

$

In Stock, only 4 left!

0

8

Echo V205000401

BOLT, STUD M8×1.25×34.5
(Superseded to 43301119831)

$3.49

$

In Stock, Qty 15

0

9

Echo V102000060

GASKET, CRANKCASE

$5.99

$

In Stock, only 1 left!

0

10

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

11

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

12

Echo V805000020

BOLT, TORX 5×35
(Superseded to Discontinued)

$

$

Not available

13

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo A239000060

PIPE, AIR INTAKE

$16.99

$

Usually ships in 2-4 days

0

15

Echo A440001190

SWITCH, ON-OFF

$14.99

$

In Stock, only 3 left!

0

16

Echo A472000091

CAP, SWITCH

$2.49

$

Usually ships in 2-4 days

0

17

Echo V485001101

LEAD - GROUND L= 170

$4.49

$

In Stock, only 1 left!

0

18

Echo C304000290

SPIKE, BUMPER

$24.99

$

Usually ships in 2-4 days

0

19

Echo V376001890

SPACER

$1.99

$

Usually ships in 2-4 days

0

20

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

21

Echo V805000250

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

22

Echo C310000030

CHAIN CATCHER

$2.99

$

Usually ships in 2-4 days

0

23

Echo V353000120

COLLAR 5

$5.99

$

Usually ships in 2-4 days

0

24

Echo V805000020

BOLT, TORX 5×35
(Superseded to Discontinued)

$

$

Not available

25

Echo E106000020

GUIDE, AIR

$3.99

$

In Stock, only 1 left!

0

26

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

27

Echo V420003800

CUSHION

$1.99

$

In Stock, only 1 left!

0

28

Echo V376001780

CUSHION

$1.99

$

Usually ships in 2-4 days

0

29

Echo 89034539231

LABEL, CAUTION

$3.49

$

Usually ships in 2-4 days

0

30

Echo X505006940

LABEL, CAUTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo C022000052

AUTO-OILER ASSY
(Superseded to C022000053)

$67.99

$

In Stock, only 4 left!

0

32

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

33

Echo P021016031

CAP ASSY, OIL
(Superseded to P100004881)

Note: Includes Items 34-37

$14.99

$

In Stock, Qty 8

0

34

Echo 90072000028

O-RING 28

$3.99

$

In Stock, only 1 left!

0

35

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

36

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 7

0

37

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

38

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, only 3 left!

0

39

Echo 43721030830

PIPE, FUEL 3×6×210 BLACK
(Superseded to 43721030831)

$6.99

$

In Stock, only 1 left!

0

40

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

41

Echo V470000830

PIPE, OIL
(Superseded to V470000831)

$11.99

$

Usually ships in 2-4 days

0

42

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, only 3 left!

0
