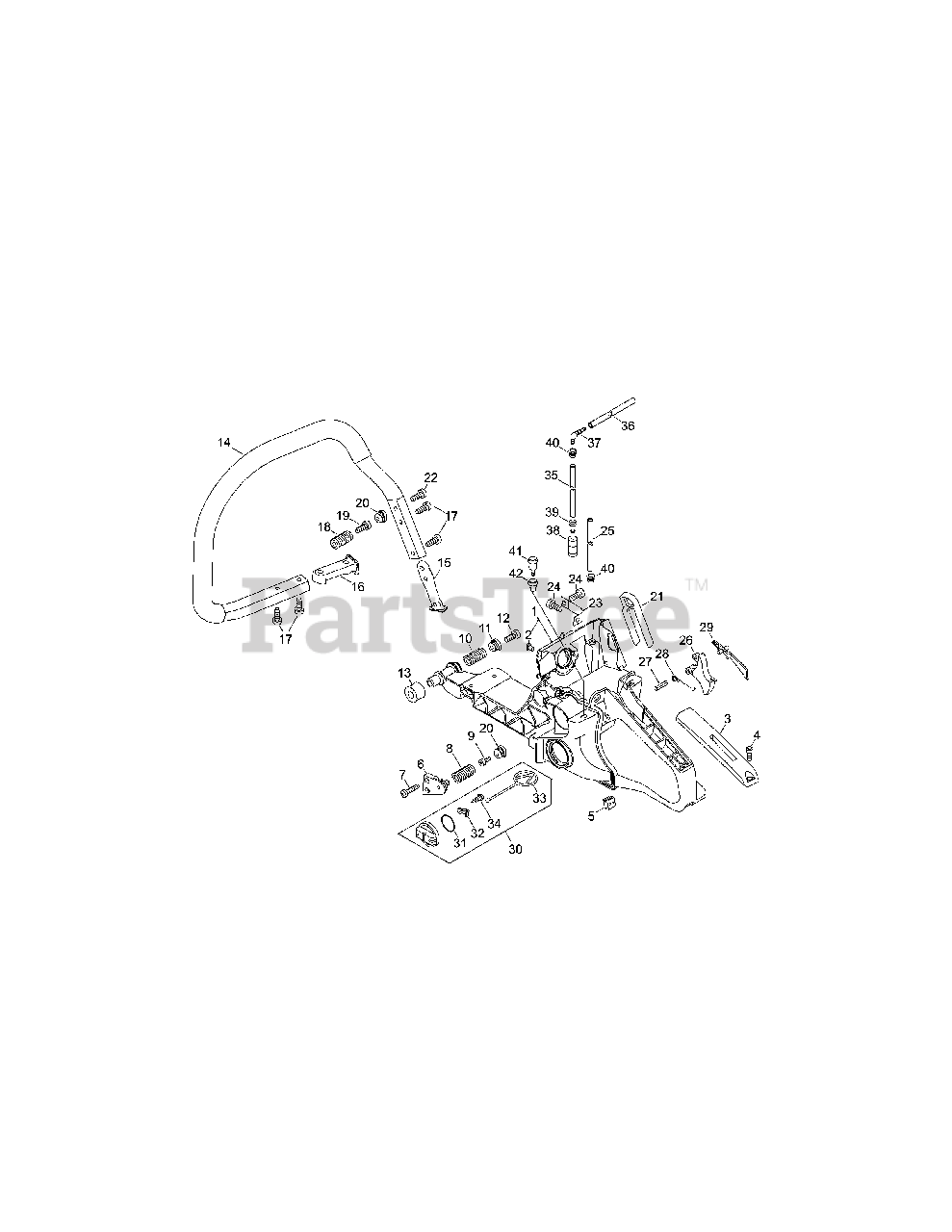

CS-620 P - Echo Chainsaw (SN: C32026001001 - C32026999999) Fuel System, Handle Parts Diagram

Chainsaw

Fuel System, Handle Parts Diagram

  • Title

1

Echo C410001252

HANDLE, REAR

$85.99

$

In Stock, only 1 left!

0

2

Echo V263000450

NUT,5

$1.99

$

Usually ships in 2-4 days

0

3

Echo C411000001

LID,HANDLE

$8.49

$

In Stock, only 1 left!

0

4

Echo V804000000

BOLT, TORX 4

$0.99

$

In Stock, Qty 20+

0

5

Echo 15011404920

BUSHING

$1.49

$

Usually ships in 2-4 days

0

6

Echo V456000090

HOLDER,SPRING

$4.49

$

In Stock, only 1 left!

0

7

Echo V805000010

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

8

Echo V450000760

SPRING,COMPRESSION

$7.99

$

In Stock, Qty 5

0

9

Echo V805000230

BOLT, TORX 5

$1.49

$

In Stock, Qty 10

0

10

Echo V450000770

SPRING,COMPRESSION
(Superseded to V450000771)

$9.49

$

Usually ships in 2-4 days

0

11

Echo V456000101

HOLDER,SPRING

$2.99

$

In Stock, only 1 left!

0

12

Echo V806000000

BOLT, TORX 6

$1.99

$

In Stock, Qty 5

0

13

Echo V404000210

CUSHION

$4.49

$

Usually ships in 2-4 days

0

14

Echo C400001171

HANDLE, FRONT

$81.99

$

In Stock, only 1 left!

0

15

Echo C405000560

BRACKET,HANDLE

$2.49

$

Usually ships in 2-4 days

0

16

Echo C405000570

BRACKET,HANDLE

$1.99

$

In Stock, only 2 left!

0

17

Echo V805000010

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

18

Echo V450000730

SPRING,COMPRESSION

$9.49

$

In Stock, Qty 5

0

19

Echo V805000000

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

20

Echo V456000080

HOLDER,SPRING

$2.99

$

In Stock, only 2 left!

0

21

Echo V456000280

HOLDER,SPRING

$2.49

$

In Stock, Qty 5

0

22

Echo V806000000

BOLT, TORX 6

$1.99

$

In Stock, Qty 5

0

23

Echo C617000362

STOPPER

$2.99

$

In Stock, only 2 left!

0

24

Echo V805000000

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 13011030830

PIPE, IMPULSE
(Superseded to 13011030831)

$2.99

$

Usually ships in 2-4 days

0

26

Echo C450000360

CONTROL, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

27

Echo 90034540025

PIN, SPRING 4*25SUS

$1.99

$

In Stock, Qty 5

0

28

Echo V452000260

SPRING,TORSION

$1.99

$

In Stock, Qty 13

0

29

Echo 17809037930

LOCKOUT, T. CONTROL

$4.99

$

In Stock, only 1 left!

0

30

Echo P021016041

CAP,FUER ASSY

Note: Includes Items 31-34

$14.99

$

Usually ships in 2-4 days

0

31

Echo 90072020029

O-RING 29

$3.49

$

In Stock, only 1 left!

0

32

Echo 13105019830

RETAINER, LINK
(Superseded to Discontinued)

$

$

Not available

33

Echo 13105119830

LINK
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

34

Echo 90024603008

SCREW 3×8

$

$

Not available

35

Echo V471000600

PIPE
(Superseded to V471000601)

$0.99

$

In Stock, Qty 8

0

36

Echo 13011014530

PIPE, IMPULSE

$2.99

$

In Stock, only 1 left!

0

37

Echo V186000500

JOINT,PIPE

$0.99

$

In Stock, Qty 20+

0

38

Echo 13120519832

STRAINER, FUEL
(Superseded to A369000460)

$9.49

$

In Stock, Qty 20+

0

39

Echo V490001240

CLIP

$0.99

$

In Stock, Qty 20+

0

40

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 20+

0

41

Echo 13130056431

VENT ASSEMBLY, FUEL

$7.49

$

In Stock, Qty 20+

0

42

Echo A359000000

COVER,VENT
(Superseded to A359000001)

$7.49

$

In Stock, only 1 left!

0
