CS-620 P - Echo Chainsaw (SN: C32026001001 - C32026999999) Intake Parts Diagram

Chainsaw

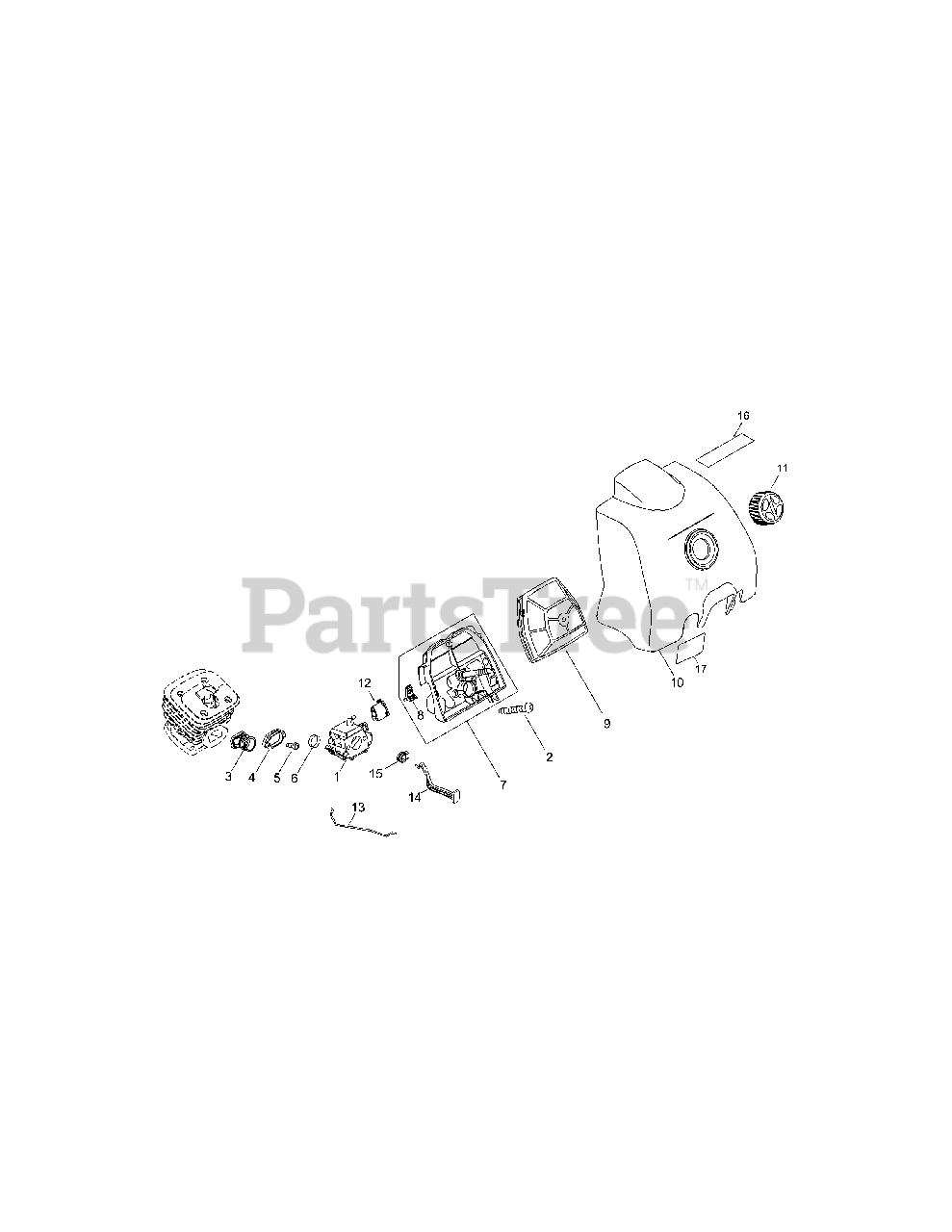

Intake Parts Diagram

  • Title

1

Echo A021004320

CARBURETOR

$140.99

$

Usually ships in 2-4 days

0

2

Echo V805000080

BOLT, TORX 5×50

$1.99

$

In Stock, only 2 left!

0

3

Echo A202000081

BELLOWS, INTAKE

$24.99

$

In Stock, only 4 left!

0

4

Echo A206000010

HOLDER, BELLOWS

$9.99

$

In Stock, only 2 left!

0

5

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

6

Echo V360000060

COLLAR 18.6×20.4×4

$3.99

$

In Stock, Qty 8

0

7

Echo P021016022

CASE ASSY, AIR FILTER
(Superseded to P021045990)

Note: Includes Item 8

$69.99

$

In Stock, only 1 left!

0

8

Echo A219000000

SHUTTER, AIR

$3.49

$

In Stock, only 2 left!

0

9

Echo P021016371

FILTER ASSY, AIR
(Superseded to P021016372)

$36.99

$

In Stock, only 3 left!

0

10

Echo A232000472

COVER, AIR FILTER

$13.99

$

In Stock, Qty 5

0

11

Echo A235000191

KNOB, AIR FILTER COVER

$8.99

$

Usually ships in 2-4 days

0

12

Echo V131000020

GROMMET, NEEDLE

$6.49

$

In Stock, only 2 left!

0

13

Echo C454000170

ROD, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

14

Echo A241000171

ROD, CHOKE
(Superseded to A241000172)

$13.99

$

In Stock, only 3 left!

0

15

Echo V130000030

GROMMET, CHOKE

$1.99

$

In Stock, Qty 5

0

16

Echo X503012230

LABEL, MODEL CS-620P

$3.49

$

In Stock, only 3 left!

0

17

Echo 89015739131

LABEL, ON-OFF

$2.99

$

Usually ships in 2-4 days

0
