CS-620 P - Echo Chainsaw (SN: C69215001001 - C69215999999) Intake Parts Diagram

Engine displacement: 59.8 cc (3.64 cu in) Starting system: decompression Ignition: digital Oiling: automatic/adjustable (clutch-driven) Vibration reduction: standard Bar lengths: 50 cm / 20 in, 60 cm / 24 in Oil capacity: 0.30 L (10.1 fl oz) Dry weight: 6.2 kg (13.7 lb) Fuel capacity: 0.65 L (21.8 fl oz) Sprocket cover: magnesium Bar type: PowerMatch Sprocket type: rim Handle: aluminum with rubber

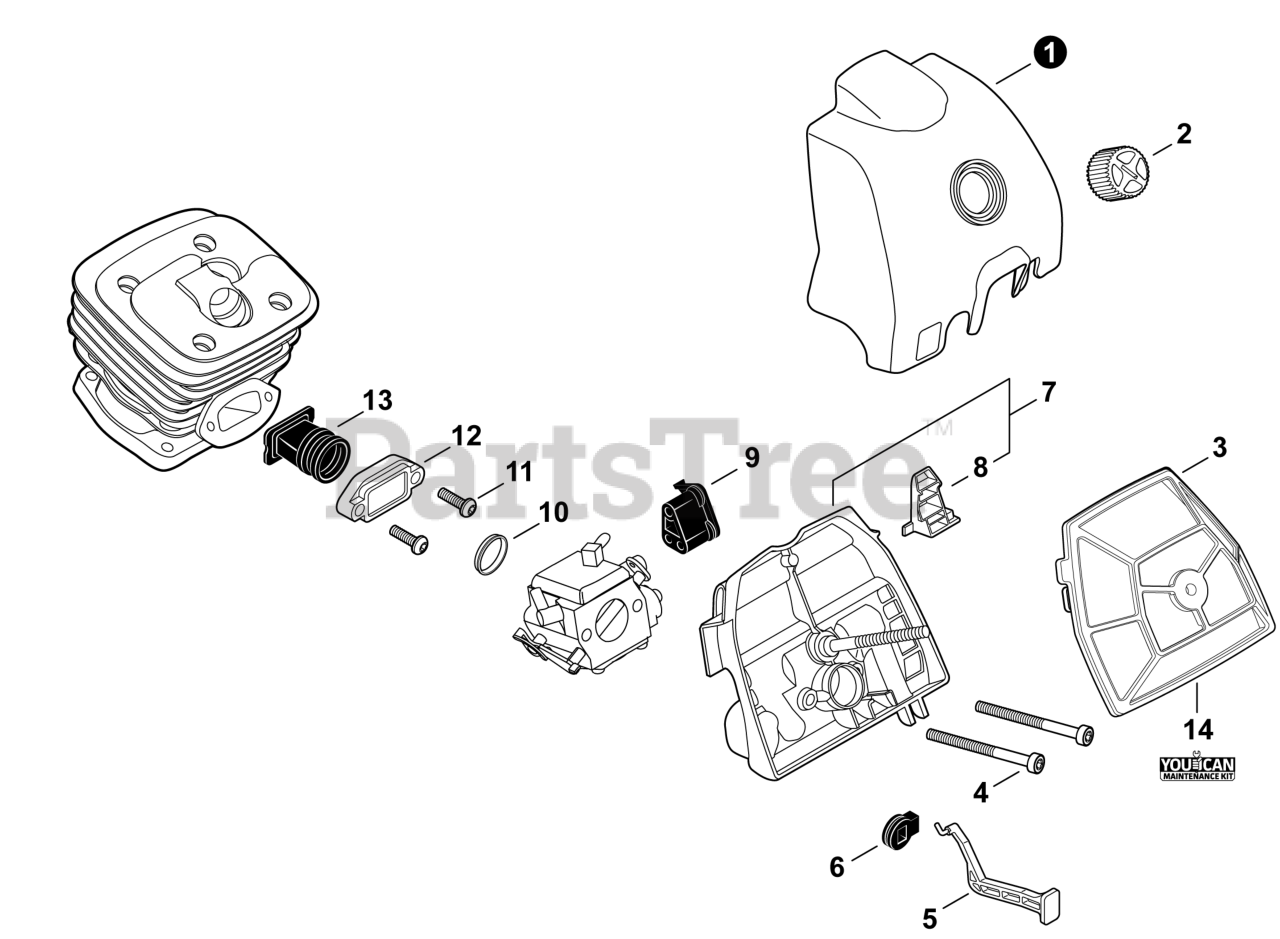

Intake Parts Diagram

  • Title

1

Echo A232000472

COVER, AIR FILTER

$13.99

$

In Stock, Qty 10

0

2

Echo A235000201

KNOB, AIR FILTER COVER

$7.49

$

In Stock, Qty 6

0

3

Echo P021016372

FILTER ASSY, AIR

Note: Included in Tune-Up Kit

$36.99

$

In Stock, Qty 20+

0

4

Echo V805000080

BOLT, TORX 5×50

$1.99

$

In Stock, only 2 left!

0

5

Echo A241000171

ROD, CHOKE
(Superseded to A241000172)

$13.99

$

In Stock, only 2 left!

0

6

Echo V130000030

GROMMET, CHOKE

$1.99

$

In Stock, only 3 left!

0

7

Echo P021016023

CASE, AIR FILTER

Note: Includes Item 9

$16.99

$

In Stock, Qty 6

0

8

Echo A219000000

SHUTTER, AIR

$3.49

$

In Stock, only 2 left!

0

9

Echo V131000020

GROMMET, NEEDLE

$6.49

$

In Stock, only 2 left!

0

10

Echo V360000060

COLLAR 18.6×20.4×4

$3.99

$

In Stock, Qty 7

0

11

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo A206000010

HOLDER, BELLOWS

$9.99

$

In Stock, only 2 left!

0

13

Echo A202000081

BELLOWS, INTAKE

$24.99

$

In Stock, only 3 left!

0

14

Echo 90167Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$47.99

$

In Stock, Qty 15

0
