CS-620 P - Echo Chainsaw (SN: C84429001001 - C84429999999) Chain Brake Parts Diagram

Engine displacement: 59.8 cc (3.64 cu in) Starting system: decompression Ignition: digital Oiling: automatic/adjustable (clutch-driven) Vibration reduction: standard Bar lengths: 50 cm / 20 in, 60 cm / 24 in Oil capacity: 0.30 L (10.1 fl oz) Dry weight: 6.2 kg (13.7 lb) Fuel capacity: 0.65 L (21.8 fl oz) Sprocket cover: magnesium Bar type: PowerMatch Sprocket type: rim Handle: aluminum with rubber

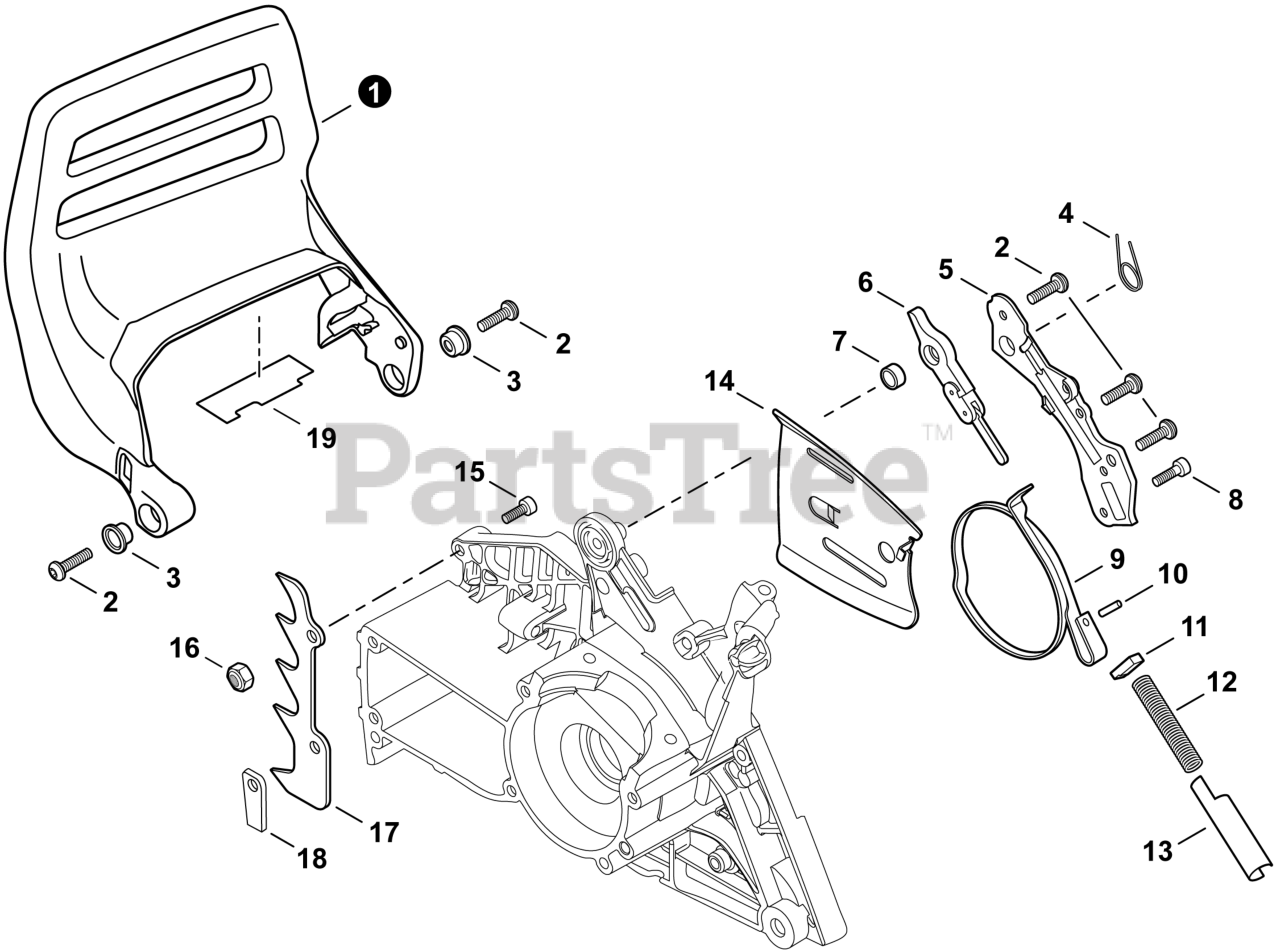

Chain Brake Parts Diagram

  • Title

1

Echo C320000182

LEVER, BRAKE

$30.99

$

Usually ships in 2-4 days

0

2

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

3

Echo V356000440

COLLAR 11.2x16.2xT0.6

$3.99

$

In Stock, Qty 20+

0

4

Echo V452000400

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

5

Echo C345000283

COVER, BRAKE

$10.99

$

In Stock, Qty 5

0

6

Echo C334000111

CONNECTOR, BRAKE

$19.99

$

In Stock, only 1 left!

0

7

Echo V356000470

SPACER 12x10xT: 1.0

$7.49

$

In Stock, only 4 left!

0

8

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

9

Echo C328000121

BAND, BRAKE

$16.99

$

In Stock, Qty 7

0

10

Echo 9305030098

PIN, SPRING 3x9.8

$0.99

$

In Stock, Qty 20+

0

11

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 19

0

12

Echo V450000740

SPRING, COMPRESSION 12x70.5

$17.99

$

In Stock, only 2 left!

0

13

Echo C603000220

PLATE, SIDE

$4.99

$

In Stock, only 1 left!

0

14

Echo C305000111

PLATE, GUIDE - INNER

$16.99

$

In Stock, only 2 left!

0

15

Echo V805000250

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

16

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 7

0

17

Echo C304000290

SPIKE, BUMPER

$24.99

$

Usually ships in 2-4 days

0

18

Echo V376001890

SPACER

$1.99

$

Usually ships in 2-4 days

0

19

Echo V341000131

SHIELD, HEAT 75x27x0.15

$3.49

$

In Stock, Qty 10

0
