CS-620 P - Echo Chainsaw (SN: C84429001001 - C84429999999) Clutch Parts Diagram

Chainsaw

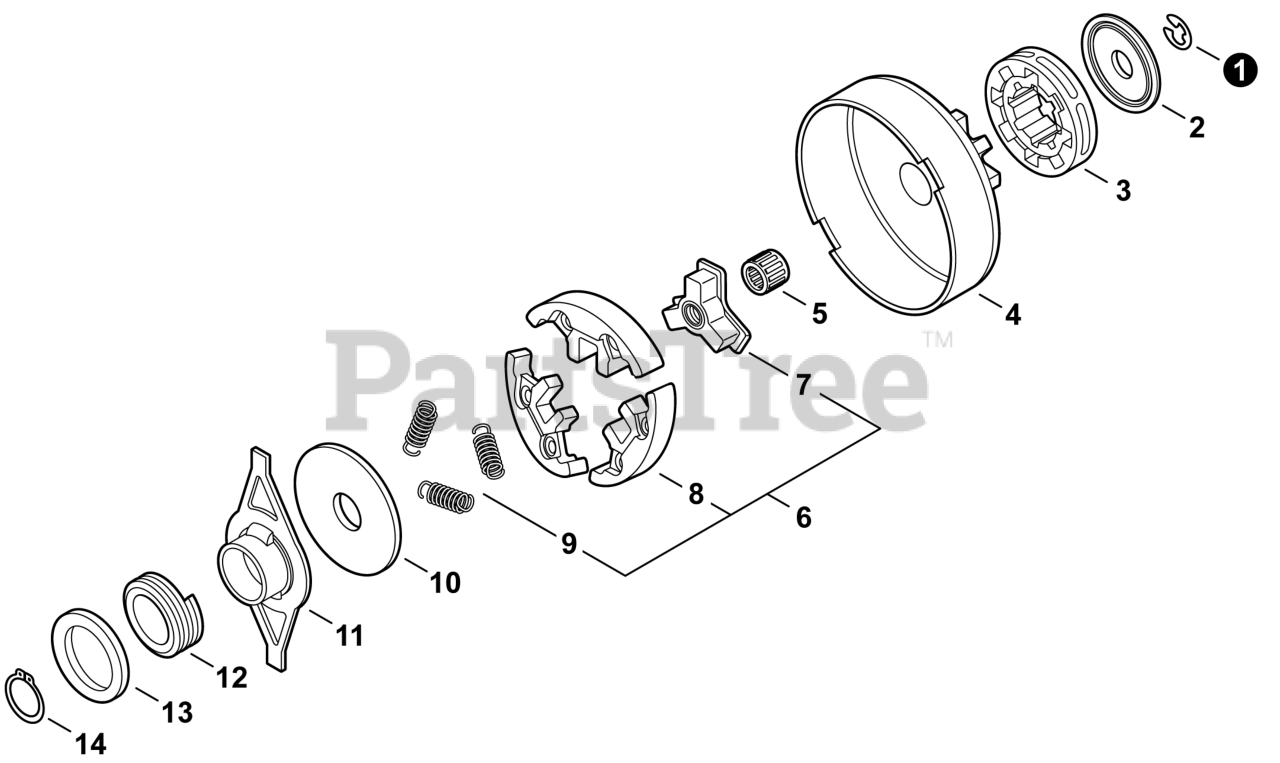

Clutch Parts Diagram

  • Title

1

Echo V583000440

E-RING 8.1

$1.99

$

In Stock, Qty 20+

0

2

Echo V307000520

WASHER 10

$2.49

$

In Stock, Qty 20+

0

3

Echo 682100

SPROCKET, RIM 3/8"x7T

$16.99

$

In Stock, Qty 15

0

4

Echo A556001610

DRUM, CLUTCH

$73.99

$

In Stock, only 4 left!

0

5

Echo V555000010

BEARING, NEEDLE 10

$10.99

$

In Stock, Qty 20+

0

6

Echo A056000221

CLUTCH ASSY

Note: Includes Items 7-9

$64.99

$

In Stock, only 2 left!

0

7

Echo A552000110

HUB, CLUTCH

$70.99

$

Usually ships in 2-4 days

0

8

Echo P021007051

CLUTCH SHOE SET (3PCS)

$37.99

$

In Stock, only 2 left!

0

9

Echo V451000500

SPRING, TENSION

$3.99

$

In Stock, Qty 20+

0

10

Echo A551000110

PLATE, CLUTCH

$9.49

$

In Stock, only 2 left!

0

11

Echo V358000090

COLLAR 15x19x73

$14.99

$

In Stock, only 3 left!

0

12

Echo V652000050

GEAR, WORM

$12.99

$

In Stock, Qty 13

0

13

Echo V311000090

WASHER 15.5x22.5x0.5

$2.49

$

In Stock, only 2 left!

0

14

Echo 90070100015

RING, RETAINING 15

$1.49

$

In Stock, only 4 left!

0
