CS-620 P - Echo Chainsaw (SN: C84429001001 - C84429999999) Oil System Parts Diagram

Engine displacement: 59.8 cc (3.64 cu in) Starting system: decompression Ignition: digital Oiling: automatic/adjustable (clutch-driven) Vibration reduction: standard Bar lengths: 50 cm / 20 in, 60 cm / 24 in Oil capacity: 0.30 L (10.1 fl oz) Dry weight: 6.2 kg (13.7 lb) Fuel capacity: 0.65 L (21.8 fl oz) Sprocket cover: magnesium Bar type: PowerMatch Sprocket type: rim Handle: aluminum with rubber

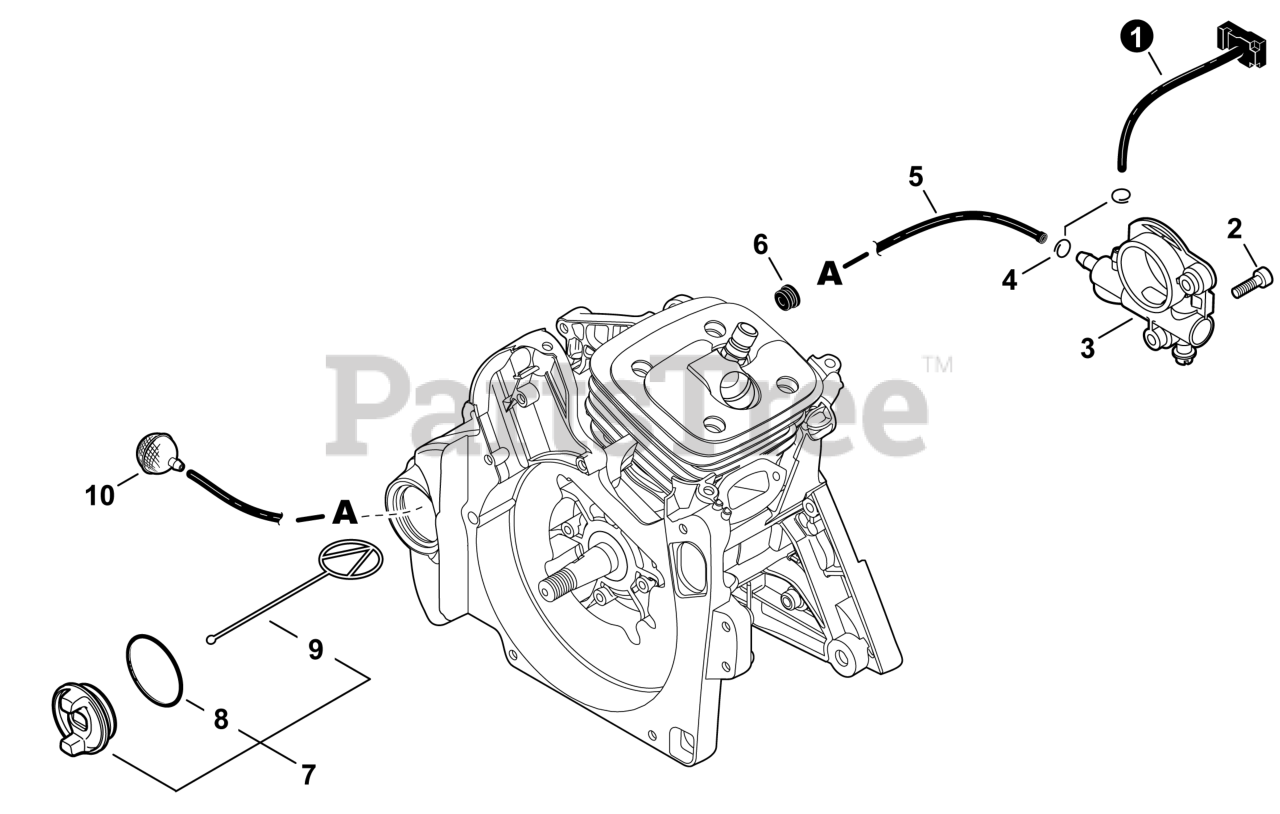

Oil System Parts Diagram

  • Title

1

Echo V470000831

PIPE, OIL

$11.99

$

In Stock, Qty 6

0

2

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

3

Echo C022000053

AUTO-OILER ASSY

$67.99

$

In Stock, Qty 16

0

4

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

5

Echo 43721030831

PIPE, FUEL 3x6x210 BLACK

$6.99

$

In Stock, Qty 15

0

6

Echo 13211501462

GROMMET

$1.99

$

In Stock, Qty 20+

0

7

Echo P100004881

CAP ASSY, OIL

Note: Includes Items 8-9

$14.99

$

In Stock, Qty 15

0

8

Echo 90072020029

O-RING 29

$3.99

$

In Stock, only 2 left!

0

9

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

10

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, Qty 17

0
