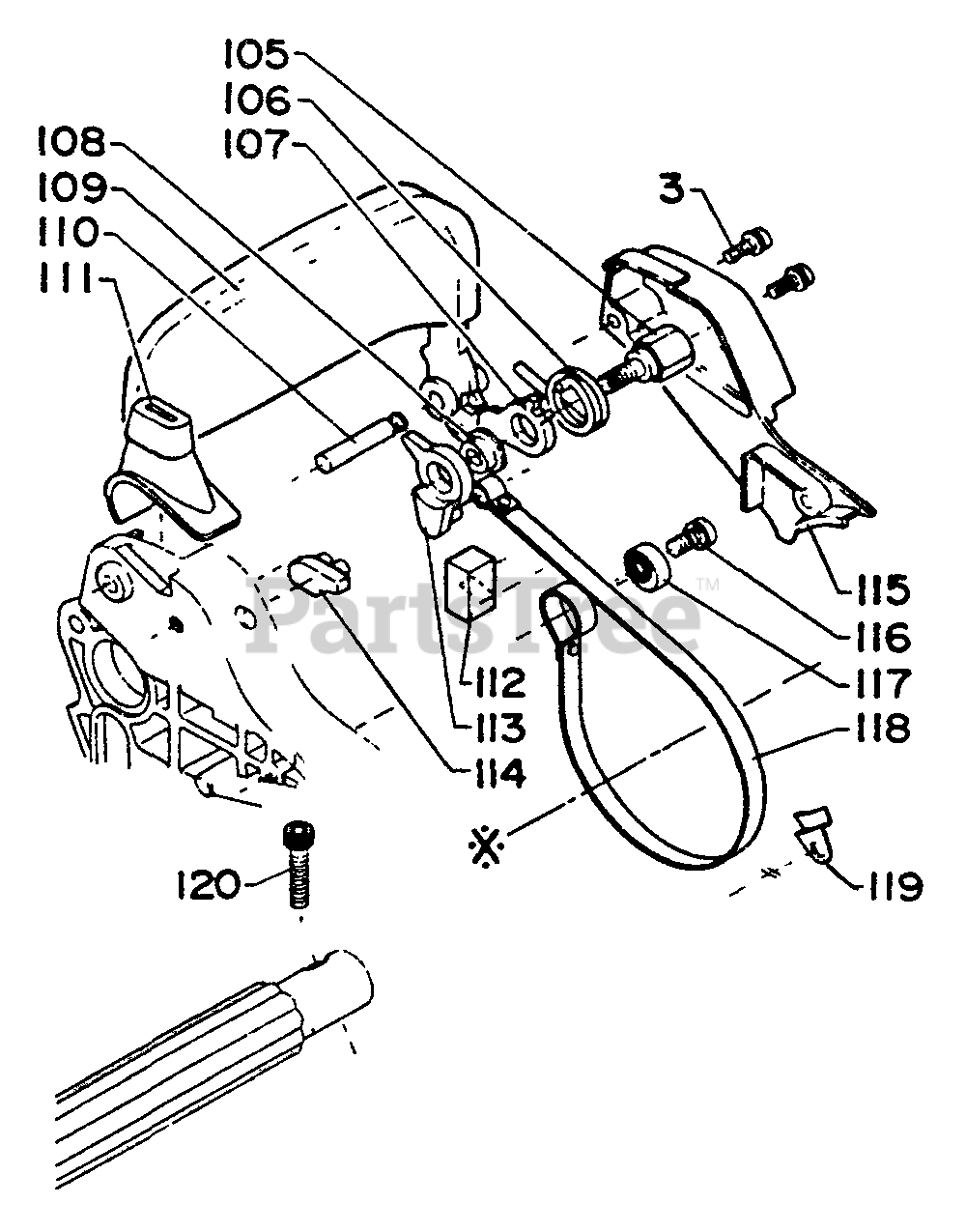

Chain Brake Parts Diagram

  • Title

Echo 43310014330

CHAIN BRAKE ASSY
(Superseded to 43310014431)

$

$

Not available

3

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

105

Echo 43313412330

BOLT

$7.99

$

In Stock, only 1 left!

0

106

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

107

Echo 43311912330

STOPPER

$4.99

$

In Stock, only 4 left!

0

108

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

109

Echo 43310512331

HANDLE, BRAKE
(Superseded to 43310512332)

$

$

Not available

110

Echo 43311312330

SCREW

$3.99

$

Usually ships in 2-4 days

0

111

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

112

Echo 43331312330

SEAL
(Superseded to Discontinued)

$

$

Not available

113

Echo 43311712330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

114

Echo 43314912530

RESET, BRAKE

$3.99

$

Usually ships in 2-4 days

0

115

Echo 43331014330

COVER

$4.49

$

Usually ships in 2-4 days

0

116

Echo 90024105010

SCREW 5×10

$0.99

$

In Stock, only 3 left!

0

117

Echo 43314212330

ADJUSTER, BRAKE BAND

$2.49

$

In Stock, only 2 left!

0

118

Echo 43312314330

BAND, BRAKE
(Superseded to Discontinued)

$

$

Not available

119

Echo 43314414330

RETAINER, BRAKE BAND

$2.49

$

Usually ships in 2-4 days

0

120

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0
