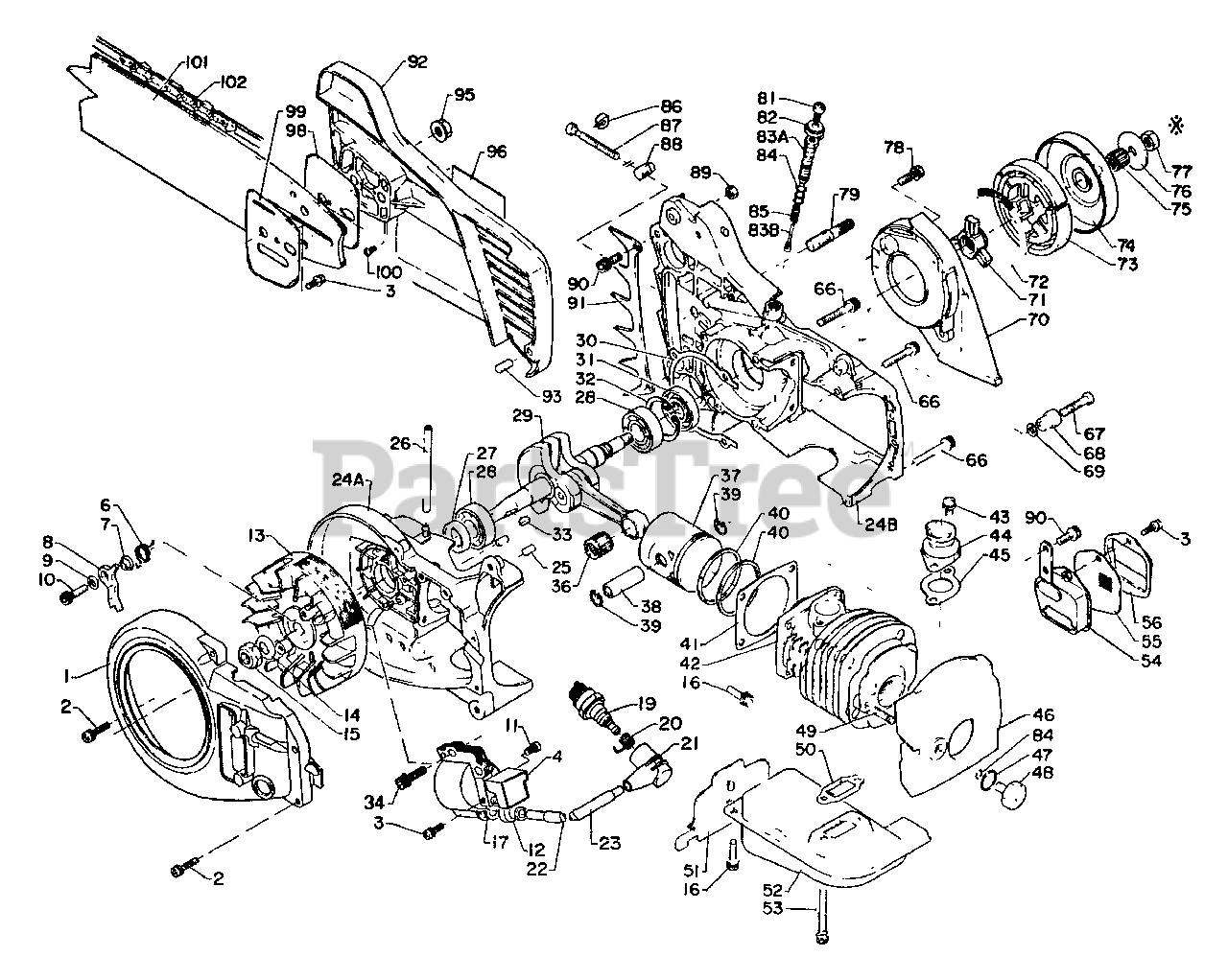

CS-650 EVL - Echo Chainsaw Engine,Exhaust,Ignition,Clutch,Oiler Automatic,Crankcase,Cutting Attach Parts Diagram

Chainsaw

Engine,Exhaust,Ignition,Clutch,Oiler Automatic,Crankcase,Cutting Attach Parts Diagram

  • Title

1

Echo 10153514331

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

2

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

3

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

Echo 15060214331

IGNITION COIL ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

4

Echo 15060114333

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024104006

SCREW - 4X6

$0.99

$

In Stock, only 3 left!

0

17

Echo 15062614333

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

12

Echo 15063214330

CAP

$1.99

$

Usually ships in 2-4 days

0

22

Echo 15063114330

LEAD, SPARK PLUG

$2.49

$

Usually ships in 2-4 days

0

23

Echo 15063314330

TUBE

$0.99

$

Usually ships in 2-4 days

0

6

Echo 17723412330

SPRING, RETURN

$1.99

$

In Stock, Qty 14

0

7

Echo 17724712330

SPACER
(Superseded to 17724712331)

$2.99

$

In Stock, Qty 9

0

8

Echo 17721814331

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

9

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

13

Echo 15080114330

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 10014314330

LOCKWASHER

$0.99

$

In Stock, only 3 left!

0

15

Echo 10014412331

NUT

$1.99

$

In Stock, Qty 5

0

16

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

20

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

21

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

24

Echo 10020014331

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

24A

Echo 10020014331

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 24, Crankcase set, P/N 10020014331

$

$

Not available

24B

Echo 10020014331

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 24, Crankcase set, P/N 10020014331

$

$

Not available

25

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

26

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 13

0

27

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

28

Echo 90081006202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

29

Echo 10010014333

CRANKSHAFT ASSY
(Superseded to 10010418430)

$

$

Not available

30

Echo 10024214330

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

31

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

32

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 16

0

33

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 20+

0

34

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

36

Echo 10001202830

BEARING, NEEDLE
(Superseded to 10001202831)

$

$

Not available

37

Echo 10001014330

PISTON
(Superseded to 10000014330)

$

$

Not available

38

Echo 10001301510

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

39

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

40

Echo 10001114330

RING, PISTON
(Superseded to 10001618430)

$

$

Not available

41

Echo 10101014330

GASKET, CYLINDER
(Superseded to 10101014331)

$

$

Not available

42

Echo 10101114330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

43

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

44

Echo 13050812331

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

45

Echo 13001012330

GASKET, INTAKE
(Superseded to 13001012331)

$1.49

$

In Stock, only 4 left!

0

46

Echo 10151414330

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

47

Echo 90072000012

O-RING - 12

$1.49

$

In Stock, only 2 left!

0

48

Echo 10151914330

NUT
(Superseded to Discontinued)

$

$

Not available

49

Echo 10152514330

STUD

$1.49

$

In Stock, only 1 left!

0

50

Echo 14551012330

GASKET, EXHAUST
(Superseded to 14551012331)

$2.49

$

Usually ships in 2-4 days

0

51

Echo 10027014330

INSULATOR

$13.99

$

Usually ships in 2-4 days

0

52

Echo 14561014330

MUFFLER
(Superseded to Discontinued)

$

$

Not available

53

Echo 90016205045

SCREW - 5X40

$1.49

$

In Stock, only 3 left!

0

54

Echo 14580614330

ADAPTOR
(Superseded to Discontinued)

$

$

Not available

55

Echo 14586214330

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

56

Echo 14586314330

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

66

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 16

0

68

Echo 43300012830

CHAIN CATCHER KIT
(Superseded to Discontinued)

$

$

Not available

67

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, Qty 5

0

69

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

70

Echo 17531014330

SEAL, DUST

$7.49

$

Usually ships in 2-4 days

0

Echo 17500012330

CLUTCH ASSY
(Superseded to 17500016130)

$

$

Not available

71

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

$

$

Not available

72

Echo 17501802830

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

73

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

74

Echo 17500511030

DRUM, CLUTCH
(Superseded to 17500514330)

$57.99

$

Usually ships in 2-4 days

0

75

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

76

Echo 17501503430

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

77

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.49

$

In Stock, Qty 12

0

78

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

79

Echo 43301112330

STUD, GUIDE BAR

$2.49

$

In Stock, only 4 left!

0

81

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 10

0

82

Echo 43705911133

LOCKWASHER

$2.99

$

Usually ships in 2-4 days

0

83

Echo 43700003430

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

83A

Echo 43700003430

AUTO-OILER ASSY
(Superseded to Discontinued)

Note: See Ref No. 83A, Auto, oiler ass'y, P/N 43700043430

$

$

Not available

83B

Echo 43700003430

AUTO-OILER ASSY
(Superseded to Discontinued)

Note: See Ref No. 83A, Auto, oiler ass'y, P/N 43700043430

$

$

Not available

84

Echo 43702002830

O-RING - 5

$1.99

$

In Stock, only 4 left!

0

85

Echo 43701902830

SPRING

$1.49

$

In Stock, Qty 6

0

84

Echo 43702002830

O-RING - 5

$1.99

$

In Stock, only 4 left!

0

86

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 14

0

87

Echo 43301611031

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

88

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

89

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

90

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

91

Echo 88021014330

SPIKE
(Superseded to Discontinued)

$

$

Not available

92

Echo 43301014431

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

93

Echo 43303014430

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

95

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

96

Echo 89002103932

LABEL - ECHO
(Superseded to 89011818331)

$

$

Not available

98

Echo 43301212332

PLATE, GUIDE - OUTER

$6.49

$

In Stock, only 3 left!

0

99

Echo 43301312332

PLATE, GUIDE - INNER

$6.49

$

In Stock, only 2 left!

0

100

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

101

------------------

GUIDE BAR

$

$

Not available

102

------------------

CHAIN, SAW

$

$

Not available
