CS-660 EVL - Echo Chainsaw Chain Brake Parts Diagram

CS-660EVL - Technical Data: - Size: 416 x 262 x 279 mm (16.4" x 10.1" x 11.0") - Weight (dry power head): 6.5 kg (14.3 lb) - Engine: air-cooled, 2-cycle, single cylinder, 64.2 cc (3.86 cu in) - Carburetor: Walbro HDB diaphragm - Magneto: flywheel, CDI - Spark plug: NGK BPM7A - Starter: recoil - Transmission: automatic centrifugal clutch - Fuel: 32:1 or 50:1 gasoline-2-stroke oil; tank 0.65 L (22 fl oz) - Chain oil tank: 0.30 L (10.2 fl oz) - chain: low kick-guard link (#20�, 20s50k 8048h; 38" 72lg 60; 24" 24s50k 8010h) - Chain brake: model CS-660EVLP only

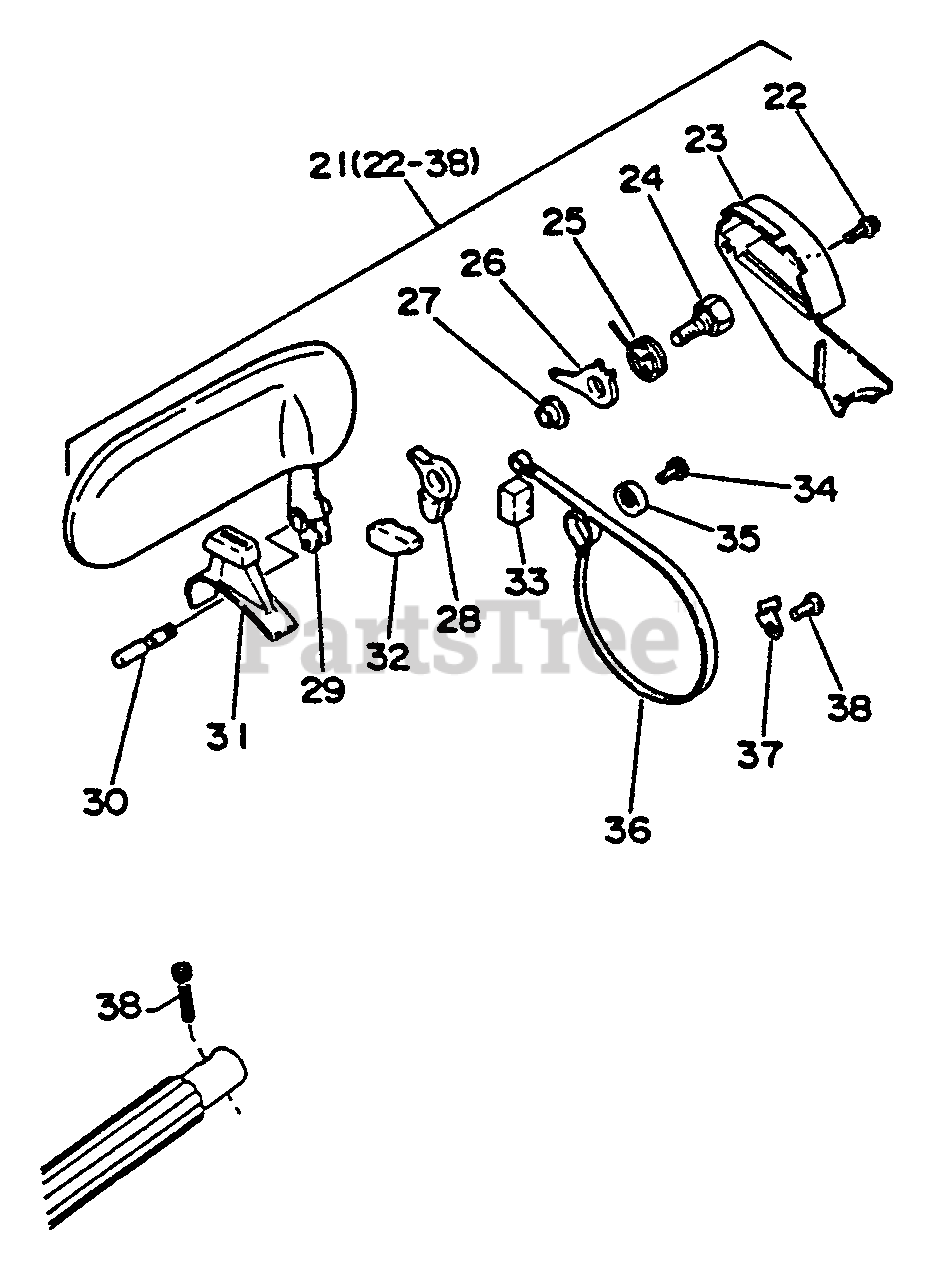

Chain Brake Parts Diagram

  • Title

21

Echo 43310014430

CHAIN BRAKE ASSY
(Superseded to 43310014431)

$

$

Not available

22

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

23

Echo 43331014330

COVER

$4.49

$

Usually ships in 2-4 days

0

24

Echo 43313412330

BOLT

$7.99

$

In Stock, only 1 left!

0

25

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

26

Echo 43311912330

STOPPER

$4.99

$

In Stock, only 4 left!

0

27

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

28

Echo 43311712330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

29

Echo 43310512530

HANDLE
(Superseded to 43310512531)

$

$

Not available

30

Echo 43311312330

SCREW

$3.99

$

Usually ships in 2-4 days

0

31

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

32

Echo 43314912530

RESET, BRAKE

$3.99

$

Usually ships in 2-4 days

0

33

Echo 43331312330

SEAL
(Superseded to Discontinued)

$

$

Not available

34

Echo 90024105010

SCREW 5×10

$0.99

$

In Stock, only 3 left!

0

35

Echo 43314212330

ADJUSTER, BRAKE BAND

$2.49

$

In Stock, only 2 left!

0

36

Echo 43312314330

BAND, BRAKE
(Superseded to Discontinued)

$

$

Not available

37

Echo 43314414330

RETAINER, BRAKE BAND

$2.49

$

Usually ships in 2-4 days

0

38

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0
