CS-660 EVL - Echo Chainsaw Clutch, Cutting Attachment Parts Diagram

CS-660EVL - Technical Data: - Size: 416 x 262 x 279 mm (16.4" x 10.1" x 11.0") - Weight (dry power head): 6.5 kg (14.3 lb) - Engine: air-cooled, 2-cycle, single cylinder, 64.2 cc (3.86 cu in) - Carburetor: Walbro HDB diaphragm - Magneto: flywheel, CDI - Spark plug: NGK BPM7A - Starter: recoil - Transmission: automatic centrifugal clutch - Fuel: 32:1 or 50:1 gasoline-2-stroke oil; tank 0.65 L (22 fl oz) - Chain oil tank: 0.30 L (10.2 fl oz) - chain: low kick-guard link (#20�, 20s50k 8048h; 38" 72lg 60; 24" 24s50k 8010h) - Chain brake: model CS-660EVLP only

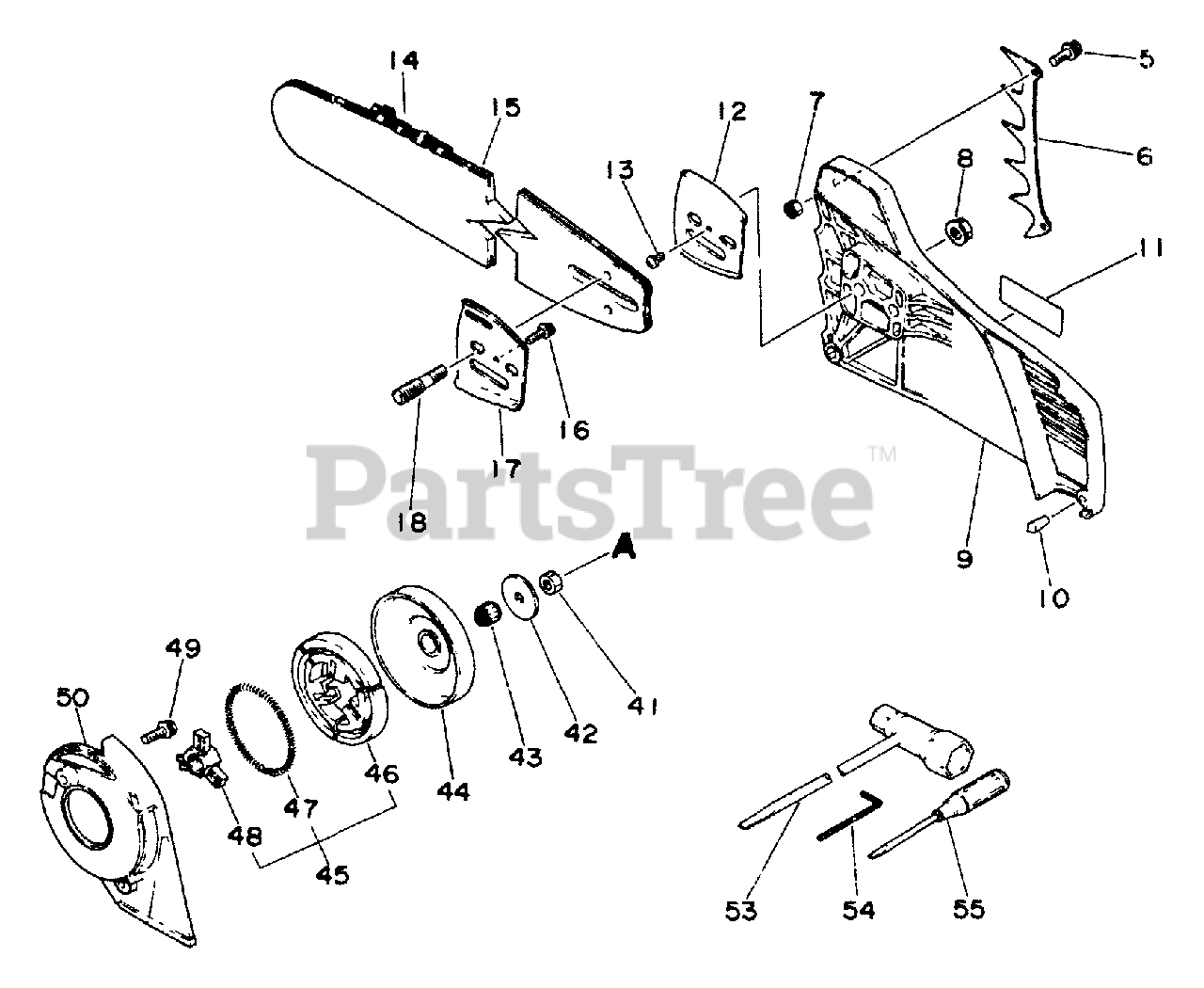

Clutch, Cutting Attachment Parts Diagram

  • Title

5

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

6

Echo 88021014330

SPIKE, BUMPER
(Superseded to Discontinued)

$

$

Not available

7

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 5

0

8

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

9

Echo 43301018430

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

10

Echo 43303014430

PIN, DOWEL
(Superseded to Discontinued)

$

$

Not available

11

Echo 89011818331

LABEL - ECHO
(Superseded to 89011838130)

$

$

Not available

12

Echo 43301212332

PLATE, SIDE

$7.49

$

In Stock, only 4 left!

0

13

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 20+

0

14

CHAIN

$

$

Not available

15

GUIDE BAR

$

$

Not available

16

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

17

Echo 43301312332

PLATE, SIDE

$7.99

$

In Stock, Qty 7

0

18

Echo 43301112330

STUD, GUIDE BAR

$2.99

$

Usually ships in 2-4 days

0

41

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$5.49

$

In Stock, only 2 left!

0

42

Echo 17501503430

WASHER, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

43

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 1 left!

0

44

Echo 17500514330

DRUM, CLUTCH

$

$

Not available

45

Echo 17500012330

CLUTCH ASSY
(Superseded to 17500016130)

$

$

Not available

46

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

47

Echo 17501802830

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

48

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

$

$

Not available

49

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, Qty 8

0

50

Echo 17531014330

PLATE

$

$

Not available

53

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

54

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable

55

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0
