CS-660 EVL - Echo Chainsaw Ignition, Starter Parts Diagram

CS-660EVL - Technical Data: - Size: 416 x 262 x 279 mm (16.4" x 10.1" x 11.0") - Weight (dry power head): 6.5 kg (14.3 lb) - Engine: air-cooled, 2-cycle, single cylinder, 64.2 cc (3.86 cu in) - Carburetor: Walbro HDB diaphragm - Magneto: flywheel, CDI - Spark plug: NGK BPM7A - Starter: recoil - Transmission: automatic centrifugal clutch - Fuel: 32:1 or 50:1 gasoline-2-stroke oil; tank 0.65 L (22 fl oz) - Chain oil tank: 0.30 L (10.2 fl oz) - chain: low kick-guard link (#20�, 20s50k 8048h; 38" 72lg 60; 24" 24s50k 8010h) - Chain brake: model CS-660EVLP only

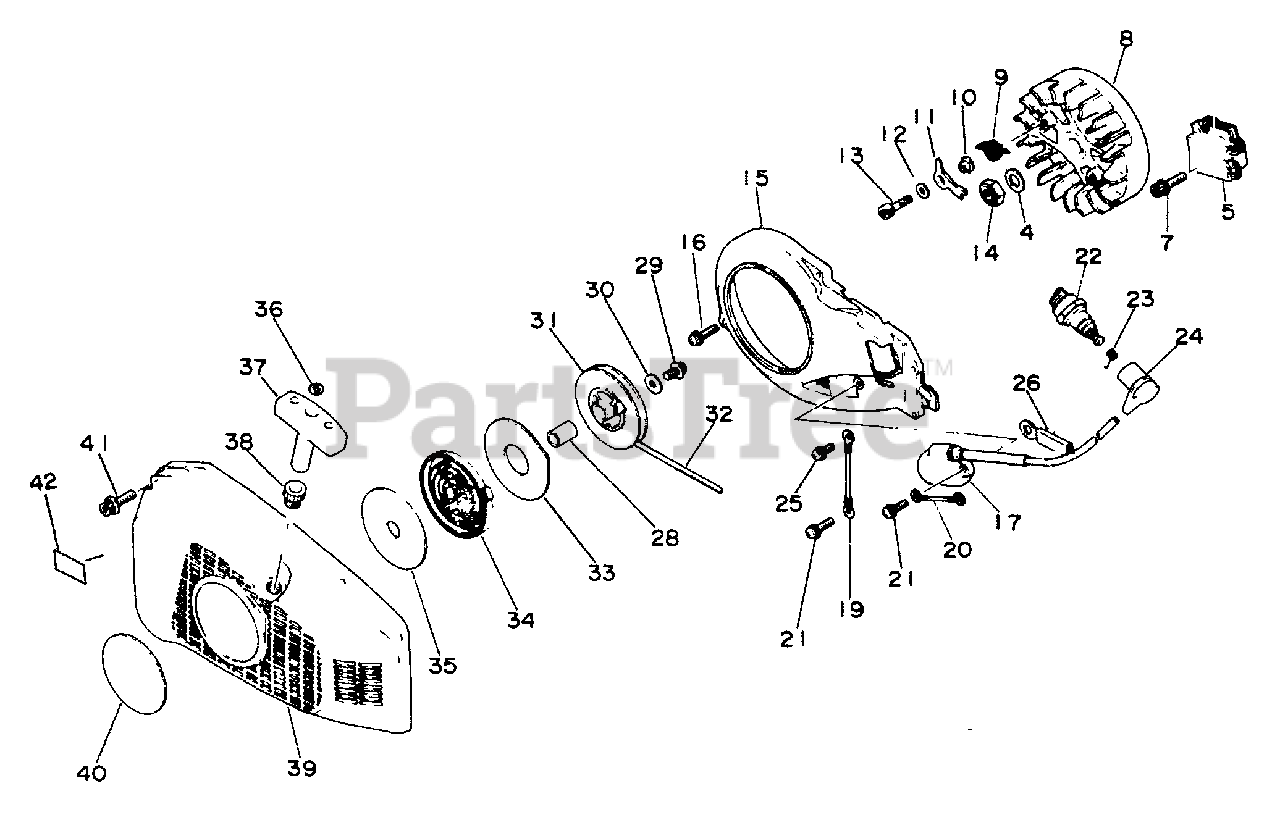

Ignition, Starter Parts Diagram

  • Title

4

Echo 10014314330

WASHER

$0.99

$

Usually ships in 2-4 days

0

5

Echo 15660118430

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

7

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo 15080118431

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 17723412330

SPRING

$1.99

$

In Stock, Qty 6

0

10

Echo 17724712330

SPACER
(Superseded to 17724712331)

$3.49

$

In Stock, only 4 left!

0

11

Echo 17721814331

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010505020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

14

Echo 10014412331

NUT

$2.49

$

In Stock, only 4 left!

0

15

Echo 10153518430

COVER, FAN

$14.99

$

Usually ships in 2-4 days

0

16

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

17

Echo 15062618430

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

19

Echo 15063014330

LEAD
(Superseded to Discontinued)

$

$

Not available

20

Echo 15063518430

LEAD
(Superseded to Discontinued)

$

$

Not available

21

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

22

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

23

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

24

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

25

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

26

Echo 15911318430

CLIP

$1.99

$

Usually ships in 2-4 days

0

Echo 17720014330

STARTER ASSY
(Superseded to Discontinued)

Note: Includes 28 thru 39.

$

$

Not available

28

Echo 177216-12330

BUSHING

$1.99

$

In Stock, Qty 20+

0

29

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

30

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

Usually ships in 2-4 days

0

31

Echo 17720614330

REEL, ROPE

$35.99

$

In Stock, only 2 left!

0

32

Echo 17722607060

ROPE, STARTER 4.0×950

Note: RePower BULK OPTION: 99944450000

$12.99

$

In Stock, only 2 left!

0

33

Echo 17724212330

PLATE, SIDE

$6.49

$

In Stock, only 2 left!

0

34

Echo 17722002834

SPRING, RECOIL

$25.99

$

In Stock, Qty 12

0

35

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, Qty 7

0

36

Echo 17722914330

SPACER

$1.49

$

In Stock, only 1 left!

0

37

Echo 17722812330

HANDLE

$30.99

$

In Stock, Qty 10

0

38

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

39

Echo 10150714330

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

40

Echo 89011218331

LABEL - ECHO
(Superseded to 89011238130)

$9.49

$

In Stock, only 3 left!

0

41

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

42

Echo 89017613031

LABEL - NOISE

$3.49

$

Usually ships in 2-4 days

0
