CS-6700 - Echo Chainsaw (SN: 001001 - 023377) Carburetor Parts Diagram

Dimensions: 413x231x302 mm (16.3x9.1x11.9 in) Weight (dry, no chain/bar): 6.3 kg Engine: air-cooled 2-stroke, 66.7 cc (4.073 cu in) Carb: Walbro HDA diaphragm; Ignition: CDI + magneto, Champ CJ-6Y plug Starter: recoil; Transmission: auto centrifugal clutch Fuel: unleaded <5 octane + 32:1 Echo oil; fuel tank 0.64 L (21.6 fl oz) Oil tank 0.37 L (12.5 fl oz); Chain: automatic plunger, adjustable/manual

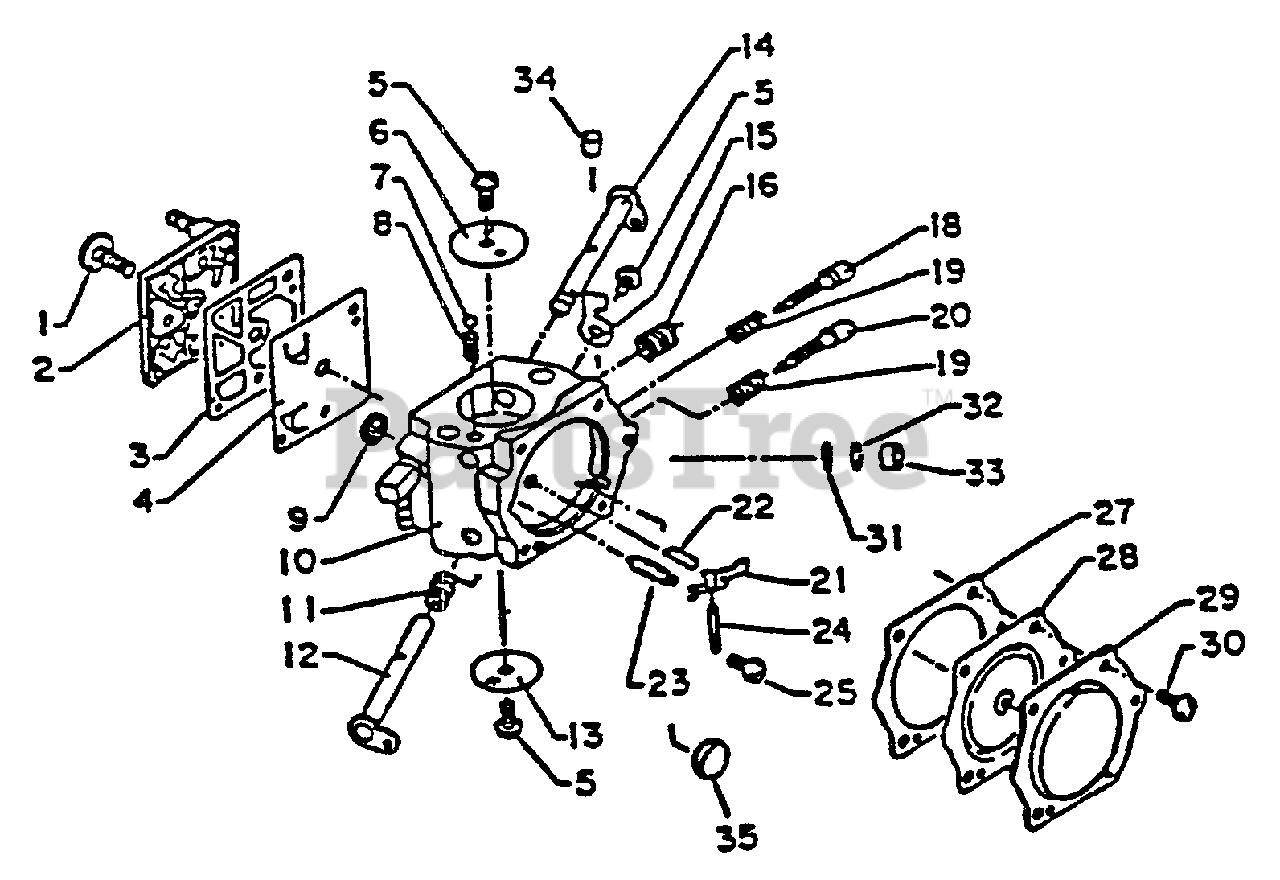

Carburetor Parts Diagram

  • Title

Echo 12300032432

CARBURETOR

Note: REVISED 05-94

$

$

Not available

1

Echo 12311016130

SCREW

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12312419830

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

3

GASKET, PUMP

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

4

DIAPHRAGM, PUMP

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

6

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

STRAINER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

10

Echo 12310019830

REPAIR KIT, CARBURETOR

Note: Use Carb Ass'y P/N 12300032432

$32.99

$

Usually ships in 2-4 days

0

11

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12311732430

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

13

Echo 12313216130

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

14

Echo 12313119830

SHAFT, CHOKE

$6.49

$

Usually ships in 2-4 days

0

15

Echo 12315612330

STOP, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

18

Echo 12311818331

NEEDLE, IDLE

$5.99

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

20

Echo 12312018330

NEEDLE, HIGH SPEED

$5.99

$

Usually ships in 2-4 days

0

21

LEVER, METERING

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

22

SPRING, METERING LEVER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

23

VALVE, INLET NEEDLE

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

24

PIN, METERING LEVER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

25

SCREW

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

27

GASKET, METERING

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

28

DIAPHRAGM, METERING

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

29

Echo 12314217330

COVER, METERING DIAPHRAGM

$4.99

$

Usually ships in 2-4 days

0

30

SCREW

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

31

STRAINER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

32

RING, RETAINING

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

33

PLUG, WELCH

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

34

Echo 12317815030

PLUG, FRICTION

$9.99

$

Usually ships in 2-4 days

0

35

PLUG, WELCH

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

Echo 161386001

GUIDE BAR - 16"

$

$

Not available

Echo 201387001

GUIDE BAR - 20"

$

$

Currently unavailable

Echo 241388101

GUIDE BAR - 24"

$

$

Currently unavailable

Echo 27D0PS3893

GUIDE BAR, 27" POWER MATCH

Note: GAUGE: .050"

$193.99

$

Usually ships in 2-4 days

0

Echo 72V60CQ

SAWING CHAIN - 16" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$31.99

$

Usually ships in 2-4 days

0

Echo 72V70CQ

SAWING CHAIN - 20" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 72V81CQ

SAWING CHAIN - 24" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$49.99

$

In Stock, only 2 left!

0

Echo 72V93CQ

CHAIN

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 12310019830

REPAIR KIT, CARBURETOR

$32.99

$

Usually ships in 2-4 days

0

Echo 12310117330

GASKET / DIAPHRAGM KIT

$

$

Not available
