CS-6700 - Echo Chainsaw (SN: 001001 - 023377) Handles, Fuel System Parts Diagram

Chainsaw

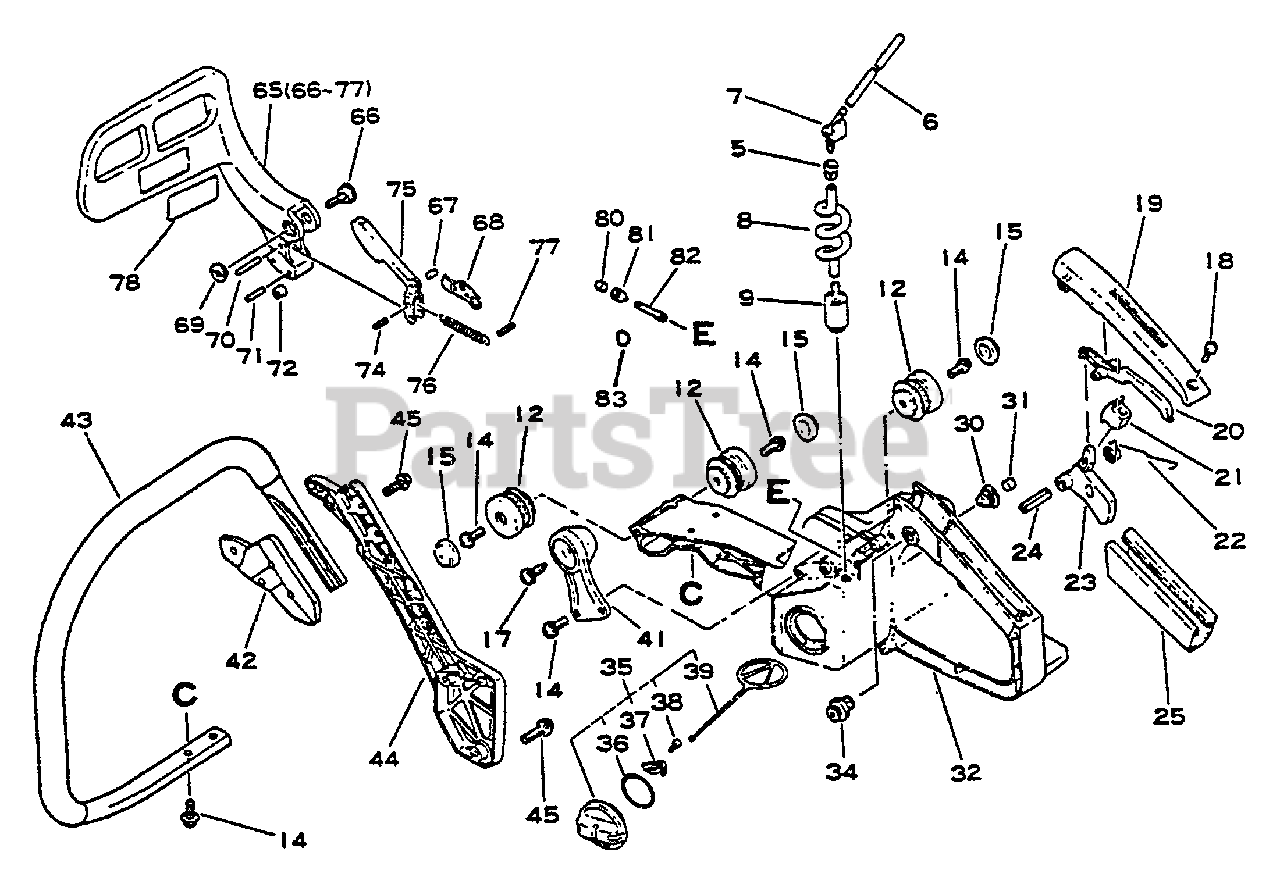

Handles, Fuel System Parts Diagram

  • Title

5

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13201219830

PIPE, FUEL - 3×6×100
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$6.49

$

In Stock, only 2 left!

0

7

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$5.49

$

Usually ships in 2-4 days

0

8

Echo 13201030830

PIPE, FUEL
(Superseded to 13201030831)

$6.99

$

In Stock, only 2 left!

0

9

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

$9.99

$

In Stock, Qty 20+

0

12

Echo 10091032630

CUSHION

$

$

Not available

14

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

15

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, only 2 left!

0

17

Echo 90024605014

SCREW 5×14

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 18

0

19

Echo 35115530131

COVER, HANDLE

$8.99

$

In Stock, only 2 left!

0

20

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 2 left!

0

21

Echo 17807332430

CUSHION, THROTTLE

$3.49

$

In Stock, only 2 left!

0

22

Echo 17804319830

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 7

0

23

Echo 17801038130

TRIGGER, THROTTLE - ORANGE

$6.99

$

In Stock, Qty 5

0

24

Echo 90034550025

PIN, SPRING

$2.49

$

Usually ships in 2-4 days

0

25

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0

30

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

31

Echo 13131505020

FILTER, CHECK VALVE

$0.99

$

In Stock, Qty 8

0

32

Echo 35110338130

HANDLE - REAR
(Superseded to 35110338131)

$

$

Not available

34

Echo 17830237930

LOCK, THROTTLE TRIGGER

$9.99

$

In Stock, only 1 left!

0

35

Echo 13100437630

CAP ASSY
(Superseded to 13100437631)

$4.49

$

In Stock, Qty 18

0

36

Echo 90072000029

O-RING 29

$3.99

$

In Stock, Qty 13

0

37

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

38

Echo 90025803008

SCREW 3×8
(Superseded to Discontinued)

$

$

Not available

39

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, only 1 left!

0

41

Echo 10092132431

CUSHION

$24.99

$

In Stock, only 1 left!

0

42

Echo 35161433530

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

43

Echo 35160632630

HANDLE, FRONT
(Superseded to 35160638130)

$

$

Not available

44

Echo 35161607060

BRACKET, HANDLE

$

$

Not available

45

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

65

Echo 43320332632

LEVER ASSY, BRAKE
(Superseded to Discontinued)

$

$

Not available

66

Echo 43311330130

SCREW

$5.99

$

Usually ships in 2-4 days

0

67

Echo 90033140080

PIN, SPRING - 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

68

Echo 43316332430

STOPPER
(Superseded to Discontinued)

$

$

Not available

69

Echo 43313730130

NUT

$14.99

$

Usually ships in 2-4 days

0

70

Echo 90033030240

PIN 3×24

$0.99

$

In Stock, Qty 20+

0

71

Echo 90033030180

PIN 3×18

$0.99

$

In Stock, Qty 6

0

72

Echo 43316819930

SPACER
(Superseded to Discontinued)

$

$

Not available

74

Echo 90034530012

PIN, SPRING 3×12

$3.99

$

In Stock, only 2 left!

0

75

Echo 43317030130

WEIGHT, BRAKE

$15.99

$

In Stock, only 1 left!

0

76

Echo 43311430130

SPRING, RETURN

$2.99

$

Usually ships in 2-4 days

0

77

Echo 90034530016

PIN, SPRING

$1.99

$

Usually ships in 2-4 days

0

78

UNKNOWN

$

$

Not available

80

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

81

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

82

Echo 13131232430

PIPE, VENT

$16.99

$

In Stock, only 2 left!

0

83

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0
