CS-6700 - Echo Chainsaw (SN: 023378 - 031240) Carburetor Parts Diagram

Chainsaw

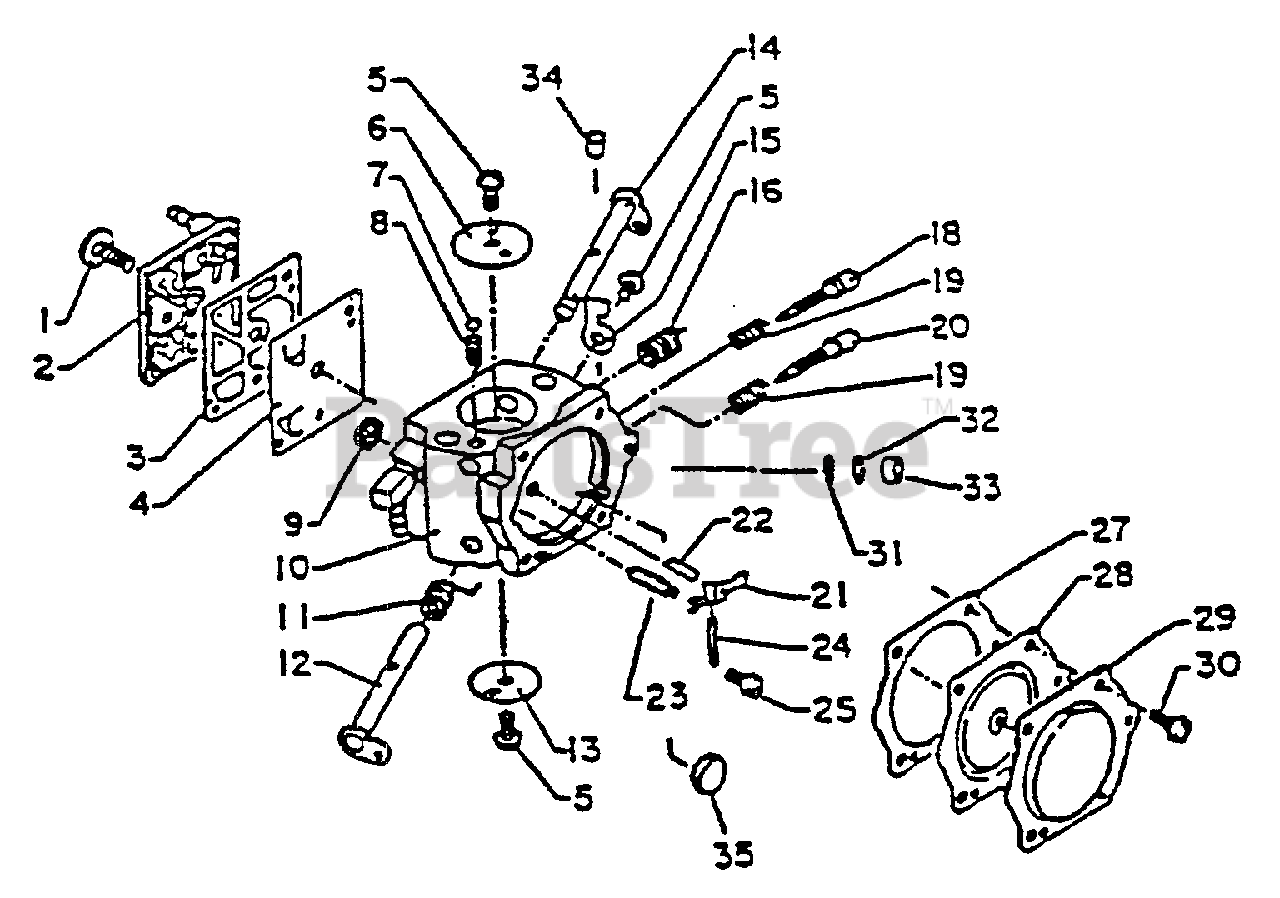

Carburetor Parts Diagram

  • Title

Echo 12300032432

CARBURETOR HDA-76

$

$

Not available

1

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12312419830

COVER, PUMP

$8.99

$

In Stock, only 2 left!

0

3

------------------

GASKET, PURGE

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT AND 12310117330 CARBURETOR GASKET/DIAPHRAGM KIT

$

$

Not available

4

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT AND 12310117330 CARBURETOR GASKET/DIAPHRAGM KIT

$

$

Not available

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 11

0

6

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

7

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

------------------

STRAINER

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT.

$

$

Not available

10

------------------

BODY, CARBURETOR

Note: Use Carb Ass'y P/N 12300032432

$

$

Not available

11

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12311732630

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

13

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12313119830

SHAFT, CHOKE

$5.99

$

Usually ships in 2-4 days

0

15

Echo 12315612330

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

18

------------------

NEEDLE, IDLE

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT.

$

$

Not available

19

Echo 12312116130

SPRING

$1.49

$

Usually ships in 2-4 days

0

20

Echo 12312032430

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

21

------------------

LEVER, METERING

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT.

$

$

Not available

22

------------------

SPRING, METER, LEVER

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT.

$

$

Not available

23

Echo 12313719830

VALVE, INLET NEEDLE

$20.99

$

Usually ships in 2-4 days

0

24

------------------

PIN, METERING LEVER

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT.

$

$

Not available

25

Echo 12313903930

SCREW, METERING LEVER PIN

$6.49

$

In Stock, only 1 left!

0

27

Echo 12314016131

GASKET, METERING

$15.99

$

Usually ships in 2-4 days

0

28

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT AND 12310117330 CARBURETOR GASKET/DIAPHRAGM KIT

$

$

Not available

29

Echo 12314217330

COVER, METERING

$4.49

$

Usually ships in 2-4 days

0

30

------------------

SCREW

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT

$

$

Not available

31

------------------

STRAINER

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT

$

$

Not available

32

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

33

------------------

PLUG, WELCH

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT

$

$

Not available

34

Echo 12317815030

PLUG

$9.49

$

Usually ships in 2-4 days

0

35

------------------

PLUG, WELCH

Note: INCLUDED IN 12310019830 CARBURETOR REPAIR KIT

$

$

Not available

Echo 161386001

GUIDE BAR - 16" (40cm)

Note: BAR & CHAIN OPTION

$

$

Not available

Echo 201387001

GUIDE BAR - 20" (50cm)

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 241388101

GUIDE BAR - 24" (60cm)

Note: BAR & CHAIN OPTION

$

$

Currently unavailable

Echo 27D0PS3893

GUIDE BAR - 27" (68cm)

Note: GAUGE: .050"

$124.99

$

Usually ships in 2-4 days

0

Echo 72V60CQ

SAW CHAIN - 16" (40cm)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

Usually ships in 2-4 days

0

Echo 72V70CQ

SAW CHAIN - 20" (50cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 72V81CQ

SAW CHAIN - 24" (60cm)

Note: GAUGE: .050" / PITCH: .375"

$43.99

$

In Stock, only 2 left!

0

Echo 72V93CQ

SAW CHAIN - 27" (68cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 12310019830

REPAIR KIT

$29.99

$

Usually ships in 2-4 days

0

Echo 12310117330

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
