CS-6700 - Echo Chainsaw (SN: 023378 - 031240) Ignition, Starter Parts Diagram

Chainsaw

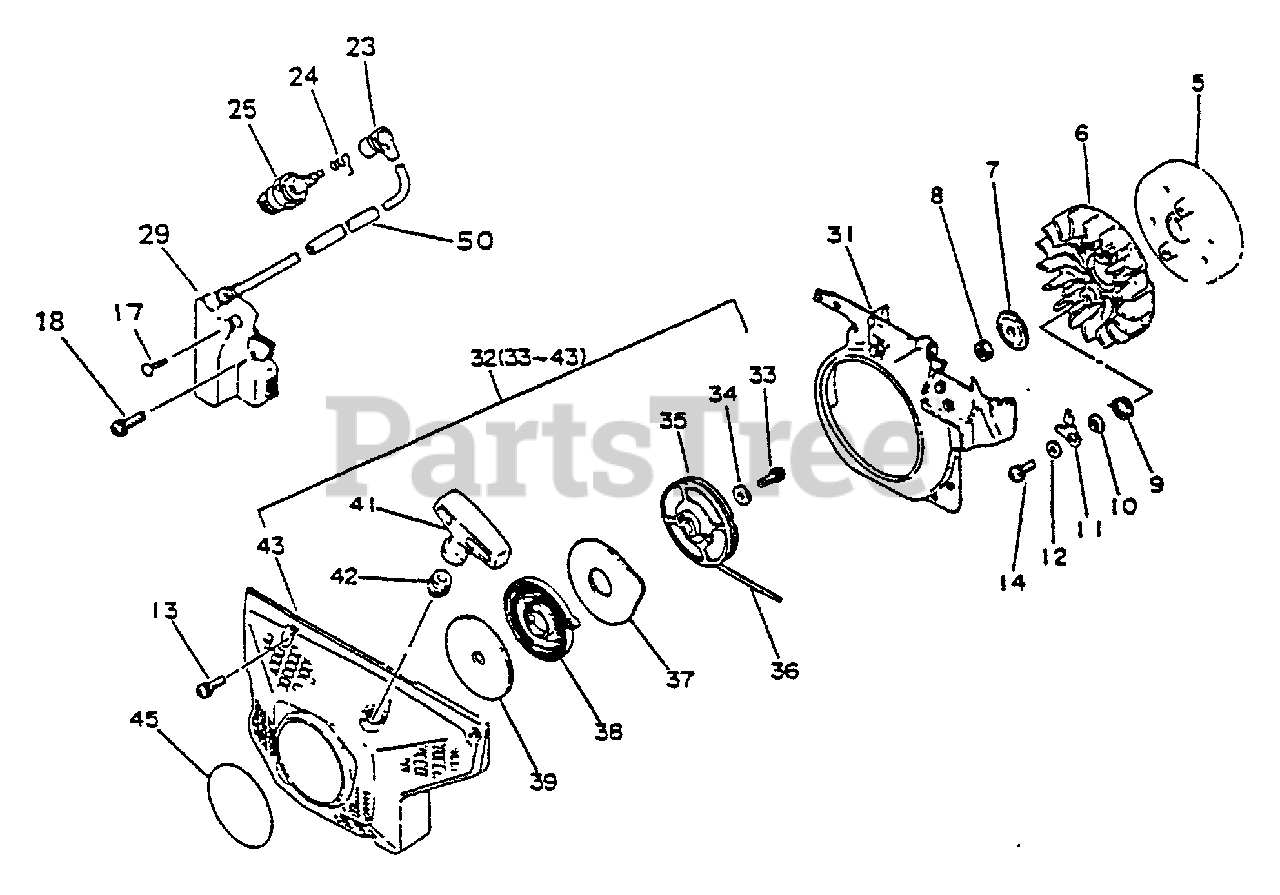

Ignition, Starter Parts Diagram

  • Title

5

Echo 15680032630

FLYWHEEL
(Superseded to 15680032631)

$104.99

$

Usually ships in 2-4 days

0

6

Echo 10152132330

FAN

$14.99

$

Usually ships in 2-4 days

0

7

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, Qty 20+

0

8

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

9

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.49

$

In Stock, Qty 7

0

10

Echo 17724719830

SPACER

$1.99

$

In Stock, only 1 left!

0

11

Echo 17721832630

PAWL, STARTER
(Superseded to P021009870)

$16.99

$

Usually ships in 2-4 days

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

14

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

17

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

18

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

23

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

25

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

27

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

29

Echo 15660132630

COIL, IGNITION
(Superseded to 15660132631)

$138.99

$

In Stock, only 1 left!

0

31

Echo 10153507060

SHIELD, FAN
(Superseded to 10153507061)

$22.99

$

Usually ships in 2-4 days

0

32

Echo 17720007630

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

33

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

34

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 17721532330

REEL, ROPE

$8.99

$

Usually ships in 2-4 days

0

36

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 13

0

37

Echo 17722107060

PLATE, STARTER

$10.99

$

In Stock, only 1 left!

0

38

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 17

0

39

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 12

0

41

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$5.99

$

Usually ships in 2-4 days

0

42

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

43

Echo 10150707061

CASE, STARTER
(Superseded to 10150707062)

$92.99

$

Usually ships in 2-4 days

0

45

Echo 89011238130

LABEL - ECHO
(Superseded to 89011817930)

$7.99

$

In Stock, Qty 11

0

50

Echo 15061132430

TUBE
(Superseded to 15661119830)

$1.99

$

Usually ships in 2-4 days

0
