CS-6700 - Echo Chainsaw (SN: 031241 - 999999) Carburetor Parts Diagram

Chainsaw

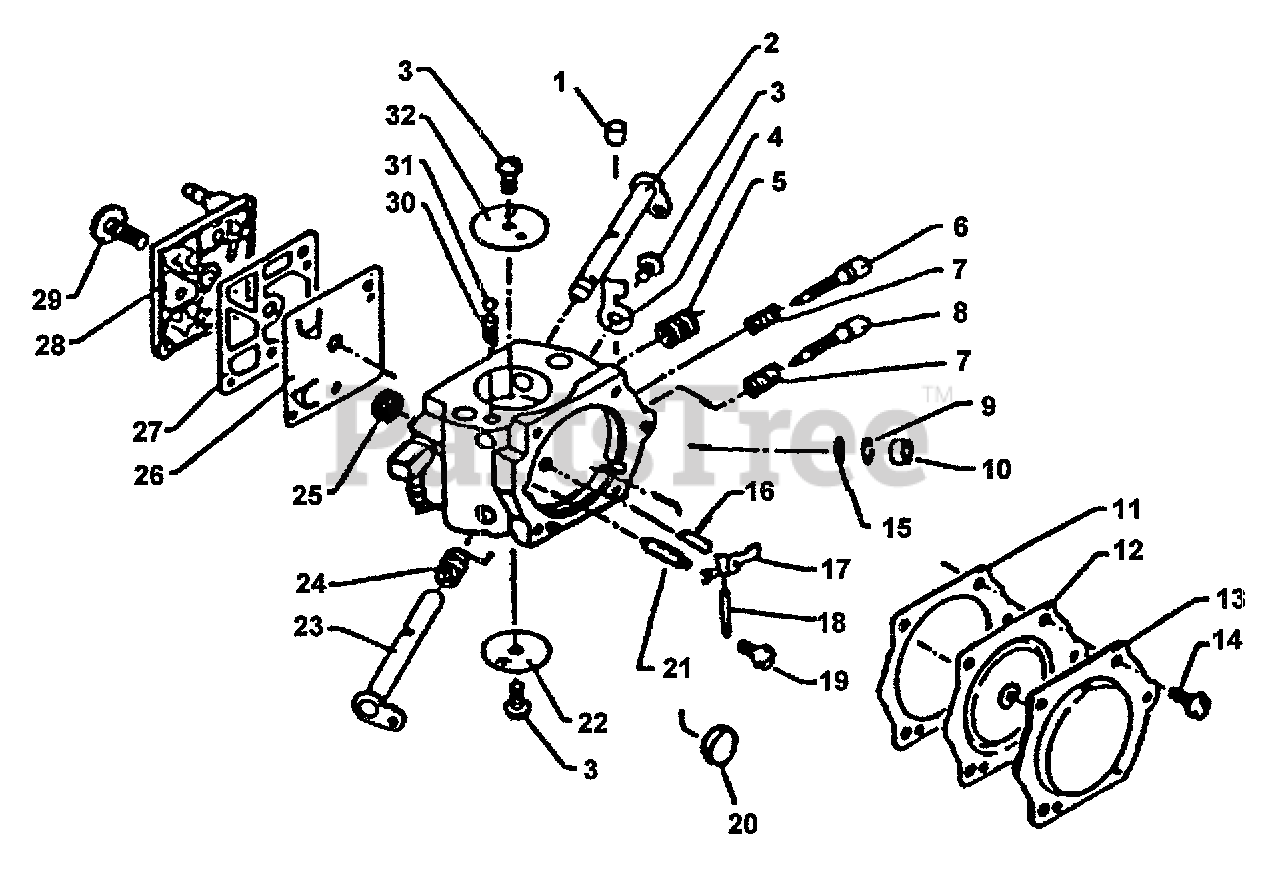

Carburetor Parts Diagram

  • Title

Echo 12300032432

CARBURETOR HDA-76

Note: Includes ITEMS 1-32

$109.99

$

Usually ships in 2-4 days

0

1

Echo 12317815030

PLUG

$4.99

$

Usually ships in 2-4 days

0

2

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

3

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

4

Echo 12315612330

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

6

Echo 12311818331

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

7

------------------

SPRING

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

8

Echo 12312032430

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

9

------------------

RING, RETAINING

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

10

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

11

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310019830 AND DIAPHRAGM/GASKET KIT P/N 12310117330

$

$

Not available

12

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310019830 AND DIAPHRAGM/GASKET KIT P/N 12310117330

$

$

Not available

13

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

14

------------------

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

15

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

16

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

17

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

18

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

19

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

20

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

21

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310019830

$

$

Not available

22

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

23

Echo 12311732630

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

24

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

25

------------------

STRAINER

$

$

Not available

26

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310019830 AND DIAPHRAGM/GASKET KIT P/N 12310117330

$

$

Not available

27

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310019830 AND DIAPHRAGM/GASKET KIT P/N 12310117330

$

$

Not available

28

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

29

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

31

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

32

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

Echo 12310117330

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0

Echo 12310019830

REPAIR KIT

$23.99

$

Usually ships in 2-4 days

0
