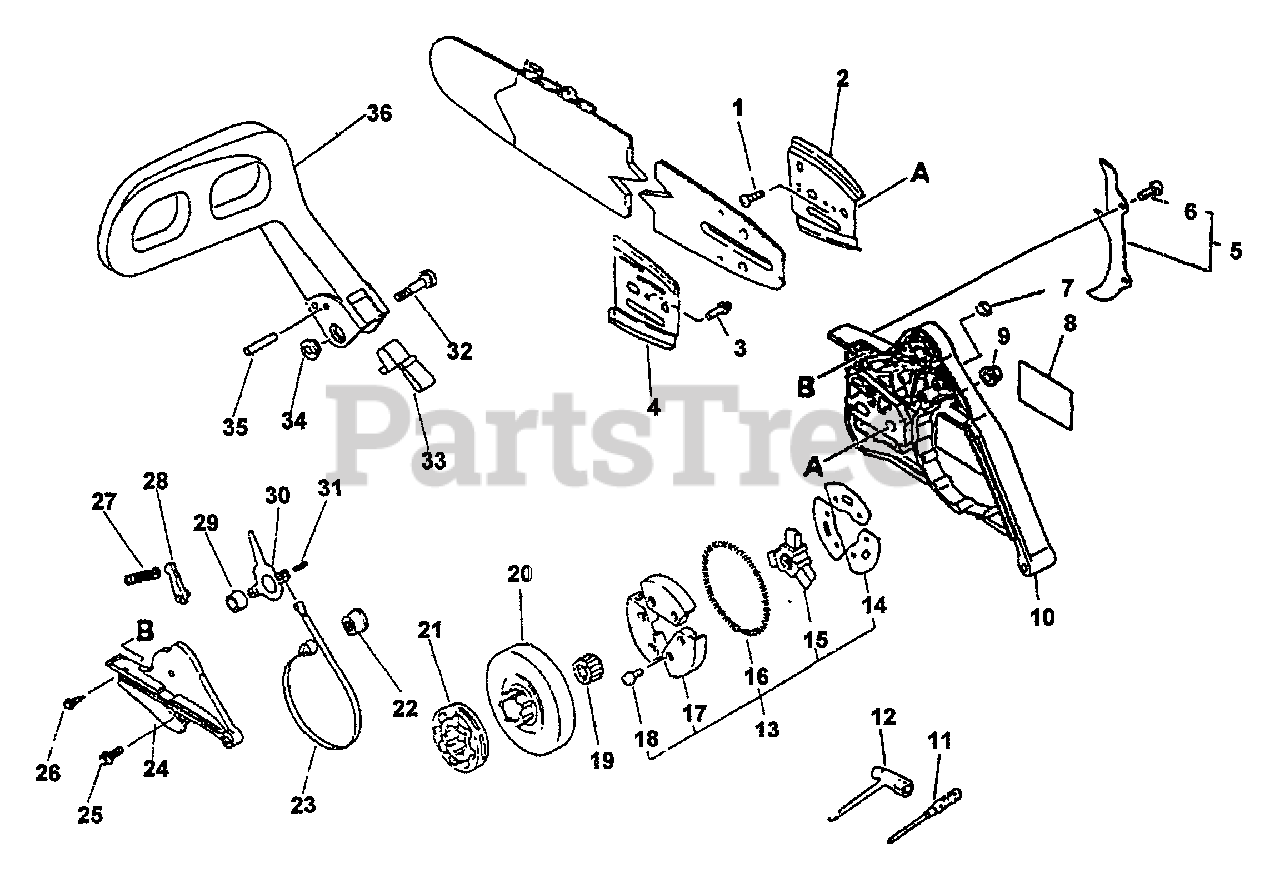

CS-6700 - Echo Chainsaw (SN: 031241 - 999999) Clutch, Cutting Attch, Chain Brake Parts Diagram

Dimensions: 413x231x302 mm (16.3x9.1x11.9 in) Weight (dry, no chain/bar): 6.3 kg Engine: air-cooled 2-stroke, 66.7 cc (4.073 cu in) Carb: Walbro HDA diaphragm; Ignition: CDI + magneto, Champ CJ-6Y plug Starter: recoil; Transmission: auto centrifugal clutch Fuel: unleaded <5 octane + 32:1 Echo oil; fuel tank 0.64 L (21.6 fl oz) Oil tank 0.37 L (12.5 fl oz); Chain: automatic plunger, adjustable/manual

Clutch, Cutting Attch, Chain Brake Parts Diagram

  • Title

1

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, only 2 left!

0

2

Echo 43301230830

PLATE, GUIDE - OUTER

$6.49

$

In Stock, only 2 left!

0

3

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

4

Echo 43301330830

PLATE, GUIDE - INNER

$6.49

$

In Stock, only 2 left!

0

5

Echo 88020032430

SPIKED BUMPER KIT
(Superseded to P021002880)

$12.99

$

In Stock, only 1 left!

0

6

Echo 88021130130

BOLT

$12.99

$

In Stock, only 1 left!

0

7

Echo 90050000003

NUT 3 MM

$0.99

$

Usually ships in 2-4 days

0

8

Echo 89011838130

LABEL, ECHO
(Superseded to Discontinued)

$

$

Not available

9

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

10

Echo 43300538230

GUARD, SPROCKET
(Superseded to P021002291)

$

$

Not available

11

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

12

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

13

Echo 17500032431

CLUTCH ASSY
(Superseded to 17500032432)

$93.99

$

Usually ships in 2-4 days

0

14

Echo 17501916130

PLATE, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

15

Echo 17501632430

HUB, CLUTCH

$20.99

$

Usually ships in 2-4 days

0

16

Echo 17501832430

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

17

Echo 17500232430

CLUTCH SHOE SET
(Superseded to 17500232431)

$73.99

$

Usually ships in 2-4 days

0

18

Echo 90010504006

BOLT 4×6

$0.99

$

Usually ships in 2-4 days

0

19

Echo 17501232430

BEARING, NEEDLE

$16.99

$

In Stock, only 3 left!

0

20

Echo 17510532430

DRUM, CLUTCH
(Superseded to 17510532431)

$48.99

$

In Stock, only 2 left!

0

21

Echo 682100

SPROCKET, RIM 3/8"×7T

$17.99

$

In Stock, Qty 13

0

22

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 1 left!

0

23

Echo 43312338131

BAND, BRAKE

$11.99

$

In Stock, only 2 left!

0

24

Echo 43331038230

COVER, BRAKE

$7.49

$

Usually ships in 2-4 days

0

25

Echo 90022003018

SCREW 3×18

$0.99

$

In Stock, only 4 left!

0

26

Echo 90025204012

SCREW 4×12

$0.99

$

Usually ships in 2-4 days

0

27

Echo 43312238130

SPRING, BRAKE

$8.49

$

Usually ships in 2-4 days

0

28

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 2 left!

0

29

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, Qty 15

0

30

Echo 43320835430

LEVER, BRAKE
(Superseded to 43320835431)

$22.99

$

In Stock, only 3 left!

0

31

Echo 90034540008

PIN, SPRING - 4×8
(Superseded to 90033040088)

$1.49

$

In Stock, only 4 left!

0

32

Echo 43311337530

MOUNTING KIT
(Superseded to 43311337538)

$6.49

$

In Stock, Qty 10

0

33

Echo 43311438130

SPRING, RETURN
(Superseded to 43311438131)

$8.49

$

In Stock, only 1 left!

0

34

Echo 43313730130

NUT

$14.99

$

Usually ships in 2-4 days

0

35

Echo 90033035260

PIN 3.5×26

$0.99

$

In Stock, Qty 7

0

36

Echo 43310533530

LEVER, BRAKE
(Superseded to 43310533531)

$

$

Not available

Echo 16D0PS3860

GUIDE BAR, 16" POWER MATCH

Note: GAUGE: .050"

$

$

Not available

Echo 20D0PS3870

GUIDE BAR, 20" POWER MATCH

Note: GAUGE: .050"

$

$

Not available

Echo 24D0PS3881

GUIDE BAR, 24" POWER MATCH
(Superseded to 24D0PS3881C)

Note: GAUGE: .050"

$171.99

$

In Stock, only 1 left!

0

Echo 27D0PS3893

GUIDE BAR, 27" POWER MATCH

Note: GAUGE: .050"

$193.99

$

Usually ships in 2-4 days

0

Echo 72V60CQ

SAWING CHAIN - 16" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$31.99

$

Usually ships in 2-4 days

0

Echo 72V70CQ

SAWING CHAIN - 20" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 72V81CQ

SAWING CHAIN - 24" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$49.99

$

In Stock, only 2 left!

0

Echo 72V93CQ

CHAIN

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 99988801205

FIXED NOSE CASE

Note: HOLDS UP TO CS-6700 20" BAR

$

$

Currently unavailable

Echo 89850308033

SCABBARD - 4.5×20"

$

$

Currently unavailable
