CS-6700 - Echo Chainsaw (SN: 031241 - 999999) Engine, Crankcase Parts Diagram

Chainsaw

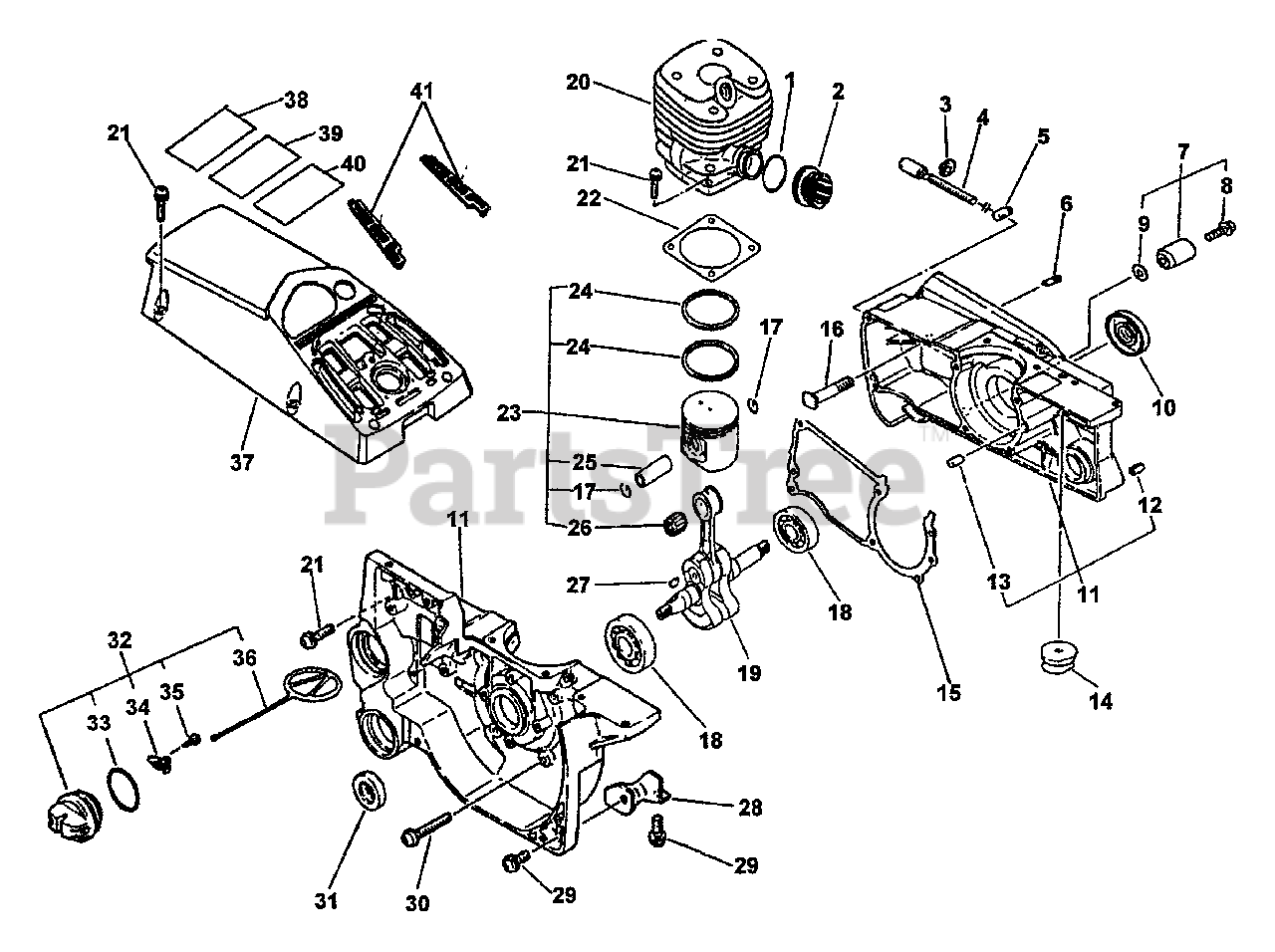

Engine, Crankcase Parts Diagram

  • Title

1

Echo 13051630830

BAND

$2.49

$

In Stock, Qty 11

0

2

Echo 13051032430

BELLOWS, INTAKE

$22.99

$

Usually ships in 2-4 days

0

3

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 9

0

4

Echo 43301611031

SCREW, TENSIONER

$4.99

$

In Stock, Qty 5

0

5

Echo 43301402830

TENSIONER, CHAIN

$5.99

$

In Stock, only 1 left!

0

6

Echo 43611413930

VENT, TANK

$7.49

$

In Stock, Qty 8

0

7

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: INCLUDES ITEMS 8 & 9

$3.49

$

In Stock, only 2 left!

0

8

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 6

0

9

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 10021232430

SEAL, OIL

$6.99

$

In Stock, only 3 left!

0

11

Echo 10020438130

CRANKCASE KIT - GRAY
(Superseded to 10020438132)

Note: INCLUDES ITEMS 6, 10, 12-16, 18 & 31

$

$

Not available

12

Echo 90034550010

PIN - SPRING -- 5X10

$1.99

$

Usually ships in 2-4 days

0

13

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

14

Echo 10025132430

CUSHION - A

$2.49

$

Usually ships in 2-4 days

0

15

Echo 10024232430

GASKET, CRANKCASE

$6.99

$

Usually ships in 2-4 days

0

16

Echo 43301119831

STUD, GUIDE BAR

$3.49

$

In Stock, Qty 20+

0

17

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90081036202

BEARING, BALL - 6202

$11.99

$

In Stock, only 2 left!

0

19

Echo 10010032430

CRANKSHAFT ASSY

$243.99

$

Usually ships in 2-4 days

0

20

Echo 10100132431

CYLINDER KIT

Note: INCLUDES ITEMS 22

$276.99

$

Usually ships in 2-4 days

0

21

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

22

Echo 10101032431

GASKET, CYLINDER

$2.99

$

In Stock, only 2 left!

0

23

Echo 10000032430

PISTON KIT
(Superseded to 10000032431)

Note: Includes ITEMS 17, 23-26

$120.99

$

In Stock, only 1 left!

0

24

Echo 10001132430

RING, PISTON
(Superseded to 10001132431)

$14.99

$

In Stock, only 1 left!

0

25

Echo 10001332430

PIN, PISTON

$9.49

$

Usually ships in 2-4 days

0

26

Echo 10001232430

BEARING, NEEDLE

$15.99

$

Usually ships in 2-4 days

0

27

Echo 10014230830

KEY

$1.99

$

In Stock, only 2 left!

0

28

Echo 10091732430

CUSHION

$19.99

$

Usually ships in 2-4 days

0

29

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 11

0

30

Echo 90016205035

SCREW - 5X35

$1.99

$

In Stock, Qty 17

0

31

Echo 10021219830

SEAL, OIL

$6.49

$

In Stock, Qty 5

0

32

Echo 43600137932

CAP ASSY
(Superseded to 43600137933)

Note: INCLUDES ITEMS 33-36

$16.99

$

In Stock, only 2 left!

0

33

Echo 90072502025

O-RING - 25

$2.99

$

In Stock, Qty 7

0

34

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

35

Echo 90024603008

SCREW - 3X8

$

$

Not available

36

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, only 3 left!

0

37

Echo 10150638131

COVER, ENGINE
(Superseded to 10150638133)

$

$

Not available

38

Echo 89019232630

LABEL - BAR & CHAIN

$3.99

$

Usually ships in 2-4 days

0

39

Echo 89019130130

LABEL - KICK BACK
(Superseded to 89019130131)

$4.99

$

Usually ships in 2-4 days

0

40

Echo 89019131730

LABEL - CAUTION
(Superseded to 89019131731)

$6.99

$

Usually ships in 2-4 days

0

41

Echo 13081132330

DEBRIS FILTER KIT
(Superseded to Discontinued)

$

$

Not available
