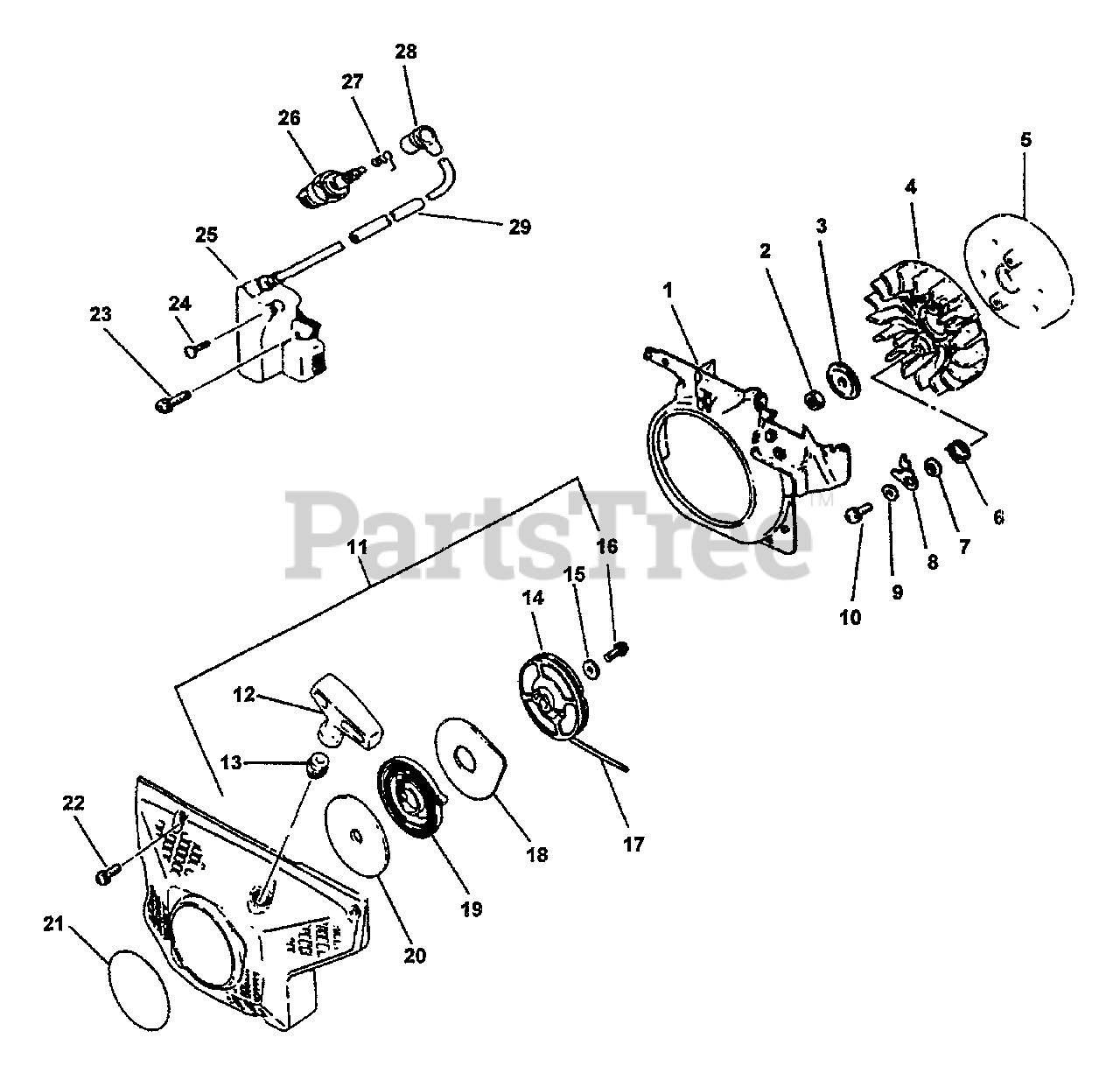

CS-6700 - Echo Chainsaw (SN: 031241 - 999999) Ignition, Starter Parts Diagram

Chainsaw

Ignition, Starter Parts Diagram

  • Title

1

Echo 10153507060

SHIELD, FAN
(Superseded to 10153507061)

$22.99

$

Usually ships in 2-4 days

0

2

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

3

Echo 10014319830

WASHER 8.2×31×0.8

$1.99

$

In Stock, Qty 20+

0

4

Echo 10152132330

FAN

$17.99

$

Usually ships in 2-4 days

0

5

Echo 15680032630

FLYWHEEL
(Superseded to 15680032631)

$124.99

$

Usually ships in 2-4 days

0

6

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.99

$

In Stock, only 2 left!

0

7

Echo 17724719830

SPACER, PAWL

$2.49

$

In Stock, only 1 left!

0

8

Echo 17721832630

PAWL, STARTER
(Superseded to P021009870)

$20.99

$

In Stock, only 1 left!

0

9

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

11

Echo 17720007063

STARTER ASSY
(Superseded to 17720007064)

Note: Includes ITEMS 12-20

$137.99

$

Usually ships in 2-4 days

0

12

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$6.99

$

Usually ships in 2-4 days

0

13

Echo 17722707060

GUIDE, ROPE

$20.99

$

Usually ships in 2-4 days

0

14

Echo 17721532330

REEL, ROPE

$10.99

$

In Stock, only 2 left!

0

15

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

17

Echo 17722607060

ROPE, STARTER 4.0×950

Note: RePower BULK OPTION: 99944450000

$12.99

$

In Stock, only 4 left!

0

18

Echo 17722107060

PLATE, STARTER

$12.99

$

In Stock, only 1 left!

0

19

Echo 17722002834

SPRING, RECOIL

$25.99

$

In Stock, only 1 left!

0

20

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, only 2 left!

0

21

Echo 89011238130

LABEL - ECHO
(Superseded to 89011817930)

$9.49

$

In Stock, only 3 left!

0

22

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

23

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

24

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

25

Echo 15660132630

COIL, IGNITION
(Superseded to 15660132631)

$166.99

$

Usually ships in 2-4 days

0

26

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

27

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

28

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

29

Echo 150611-32430

TUBE
(Superseded to 15661119830)

$1.99

$

Usually ships in 2-4 days

0
