CS-6700 - Echo Chainsaw (Type 1E) Carburetor Parts Diagram

Dimensions: 413x231x302 mm (16.3x9.1x11.9 in) Weight (dry, no chain/bar): 6.3 kg Engine: air-cooled 2-stroke, 66.7 cc (4.073 cu in) Carb: Walbro HDA diaphragm; Ignition: CDI + magneto, Champ CJ-6Y plug Starter: recoil; Transmission: auto centrifugal clutch Fuel: unleaded <5 octane + 32:1 Echo oil; fuel tank 0.64 L (21.6 fl oz) Oil tank 0.37 L (12.5 fl oz); Chain: automatic plunger, adjustable/manual

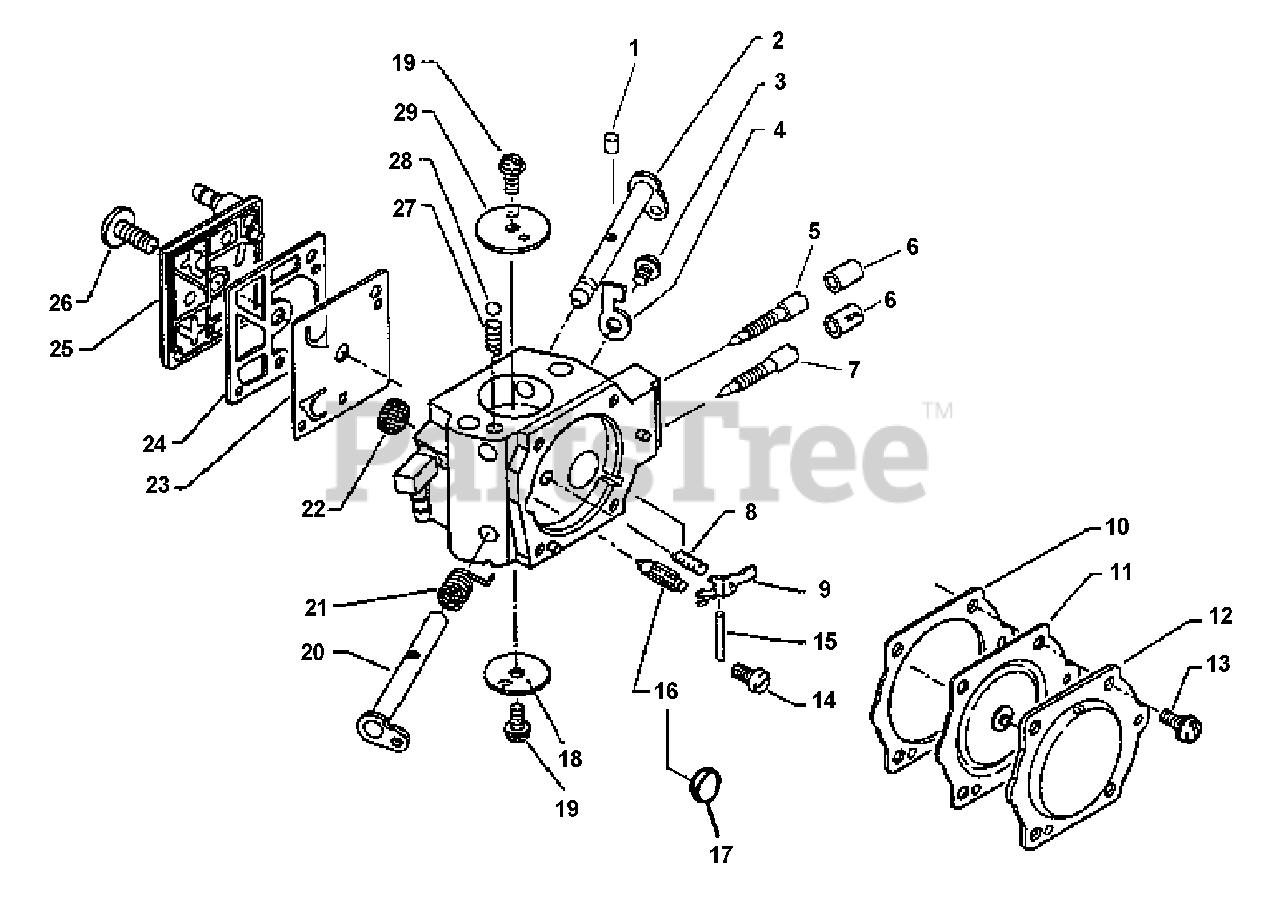

Carburetor Parts Diagram

  • Title

Echo 12300032631

CARBURETOR - HDA-151A
(Superseded to 12300032632)

Note: INCLUDES THE FOLLOWING

$177.99

$

Usually ships in 2-4 days

0

1

PLUG, FRICTION

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

2

Echo 12313119830

SHAFT, CHOKE

$6.49

$

Usually ships in 2-4 days

0

3

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

4

Echo 12315630830

STOP, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

5

Echo 12312032631

NEEDLE, HIGH SPEED

$5.49

$

In Stock, only 2 left!

0

6

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

7

Echo 12311802260

NEEDLE, LOW SPEED

$5.99

$

Usually ships in 2-4 days

0

8

SPRING, METERING LEVER

Note: (Included in Repair Kit 12310032630)

$

$

Not available

9

LEVER, METERING

Note: (Included in Repair Kit 12310032630)

$

$

Not available

10

GASKET, METERING

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

11

DIAPHRAGM, METERING

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

12

Echo 12314217330

COVER, METERING DIAPHRAGM

$4.99

$

Usually ships in 2-4 days

0

13

SCREW

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

14

SCREW, METERING LEVER PIN

Note: (Included in Repair Kit 12310032630)

$

$

Not available

15

PIN, METERING LEVER

Note: (Included in Repair Kit 12310032630)

$

$

Not available

16

VALVE, INLET NEEDLE

Note: (Included in Repair Kit 12310032630)

$

$

Not available

17

PLUG, WELCH

Note: (Included in Repair Kit 12310032630)

$

$

Not available

18

Echo 12313216130

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

20

Echo 12311732630

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

21

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

22

STRAINER

Note: (Included in Repair Kit 12310032630)

$

$

Not available

23

DIAPHRAGM, PUMP

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

24

GASKET, PUMP

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

25

Echo 12312419830

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

26

Echo 12311016130

SCREW

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

28

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

29

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

Echo 12310032630

REPAIR KIT

$21.99

$

Usually ships in 2-4 days

0

Echo 12310117330

GASKET / DIAPHRAGM KIT

$

$

Not available
