CS-680 - Echo Chainsaw (SN: C68615001001 - C68615999999) Oil Pump Parts Diagram

Chainsaw

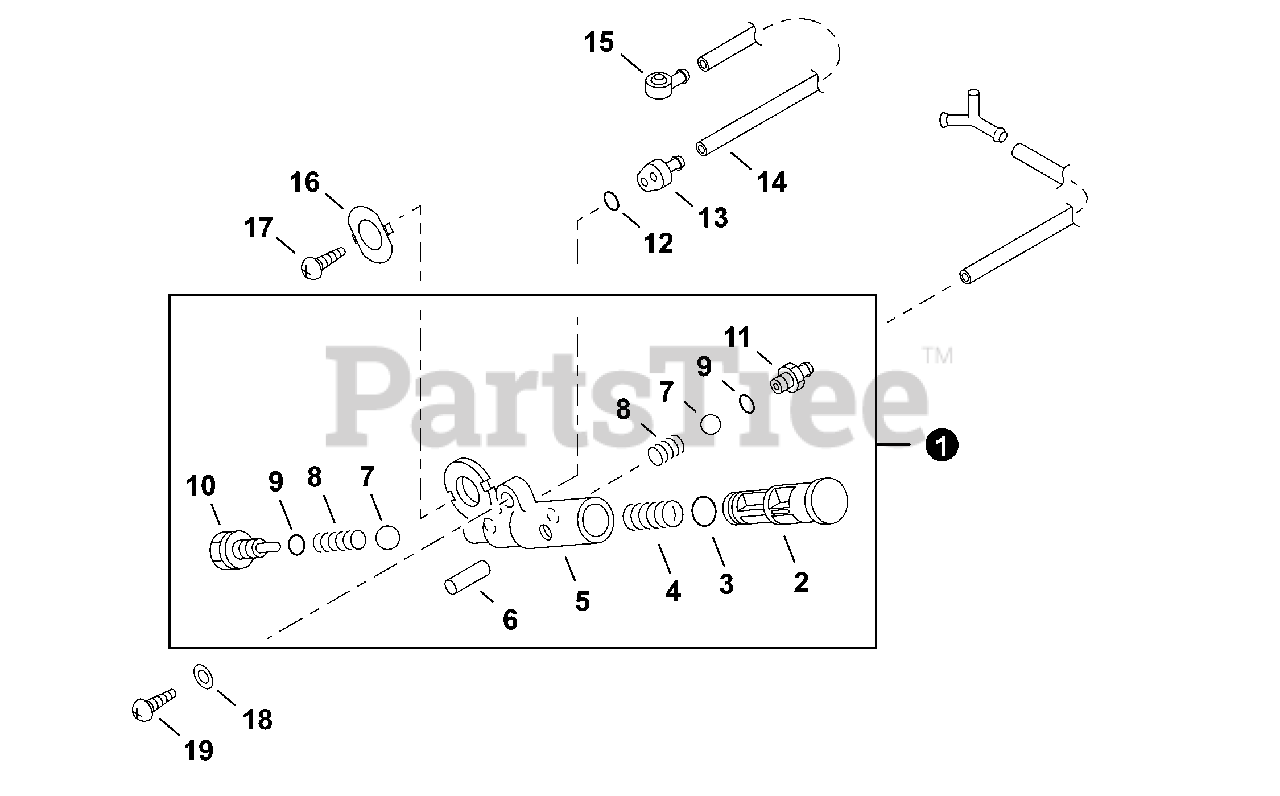

Oil Pump Parts Diagram

  • Title

1

Echo 43710038832

OIL PUMP ASSY

Note: Includes Items 2-11

$21.99

$

Usually ships in 2-4 days

0

2

Echo 43711238731

PISTON, OIL PUMP

$4.49

$

Usually ships in 2-4 days

0

3

Echo 90072000007

O-RING 7 MM

$0.99

$

Usually ships in 2-4 days

0

4

Echo 43711119830

SPRING

$1.49

$

In Stock, only 4 left!

0

5

Echo 43711019831

BODY, OIL PUMP

$7.99

$

Usually ships in 2-4 days

0

6

Echo 90034520016

PIN, SPRING 2×16

$1.99

$

Usually ships in 2-4 days

0

7

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

8

Echo V450000290

SPRING, COMPRESSION

$0.99

$

In Stock, Qty 9

0

9

Echo 43712203430

O-RING

$1.49

$

In Stock, Qty 6

0

10

Echo 43712110130

ADAPTOR, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

11

Echo 43711819830

CONNECTOR, PIPE

$3.49

$

Usually ships in 2-4 days

0

12

Echo 90072000003

O-RING 3

$1.49

$

In Stock, Qty 13

0

13

Echo 43721232630

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

14

Echo 43721632630

PIPE 3×6×125 BLACK

$2.99

$

Usually ships in 2-4 days

0

15

Echo 43723232630

CONNECTOR, PIPE

$3.49

$

Usually ships in 2-4 days

0

16

Echo 43741319830

BRACKET, OIL PUMP

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90025204010

SCREW 4×10

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 90025205020

SCREW 5×20

$0.99

$

Usually ships in 2-4 days

0
