CS-680 - Echo Chainsaw (SN: C68615001001 - C68615999999) Oil System Parts Diagram

Chainsaw

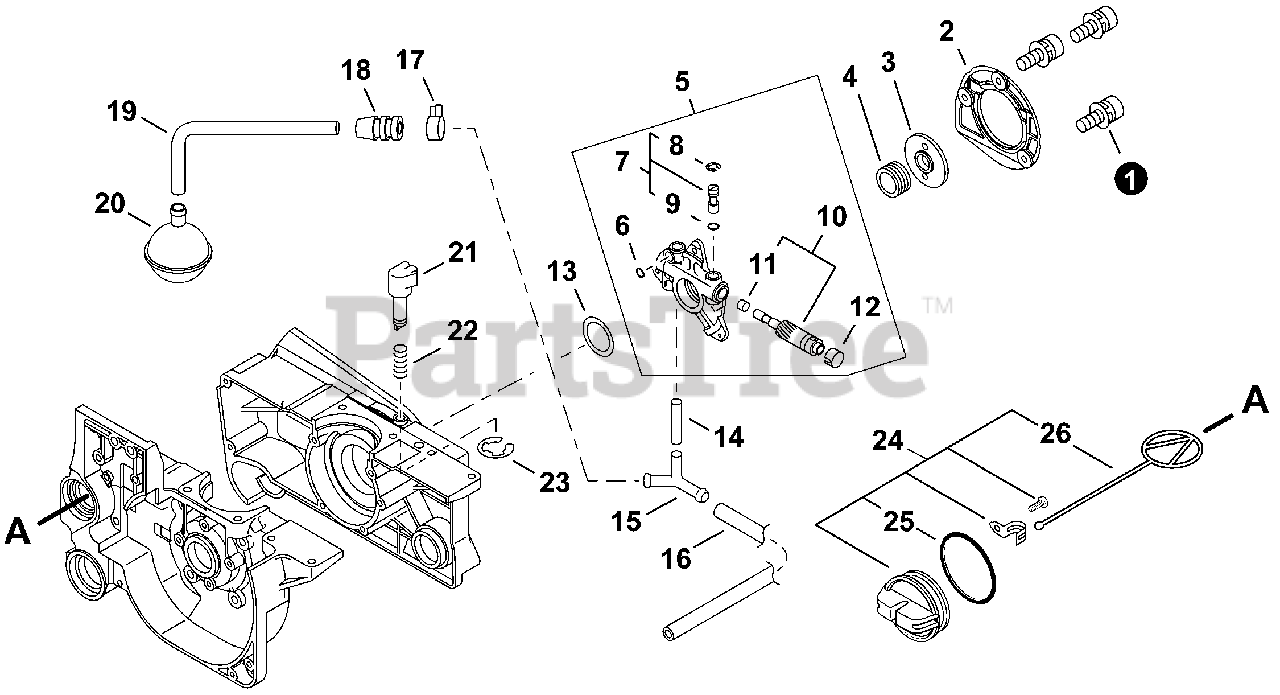

Oil System Parts Diagram

  • Title

1

Echo 90016204012

BOLT 4×12

$1.49

$

In Stock, Qty 20+

0

2

Echo 43760532430

COVER, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

3

Echo V309000040

WASHER 12

$13.99

$

Usually ships in 2-4 days

0

4

Echo 43706319930

GEAR, WORM

$39.99

$

In Stock, only 1 left!

0

5

Echo 43700237530

AUTO-OILER ASSY

Note: Includes Items 6-12

$92.99

$

Usually ships in 2-4 days

0

6

Echo 90072000003

O-RING 3

$1.49

$

In Stock, Qty 13

0

7

Echo 43700935430

PIN ASSY, CONTROL

Note: Includes Items 8-9

$21.99

$

Usually ships in 2-4 days

0

8

Echo 43706519830

C-CLIP

$0.99

$

Usually ships in 2-4 days

0

9

Echo 43703019830

O-RING

$2.99

$

Usually ships in 2-4 days

0

10

Echo 43700632330

PLUNGER KIT

Note: Includes Item 11

$27.99

$

Usually ships in 2-4 days

0

11

Echo 43702032430

PACKING

$4.99

$

Usually ships in 2-4 days

0

12

Echo 43706219830

CAP, PLUNGER

$1.99

$

Usually ships in 2-4 days

0

13

Echo V540000210

O-RING

$7.49

$

Usually ships in 2-4 days

0

14

Echo 43721132430

PIPE, OIL 3×6×20

$2.49

$

In Stock, only 1 left!

0

15

Echo 43721232430

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

16

Echo 43721015130

PIPE, FUEL 3×6×200

$4.99

$

Usually ships in 2-4 days

0

17

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

18

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

19

Echo 43721038330

PIPE, OIL
(Superseded to 43721038331)

$5.49

$

In Stock, Qty 18

0

20

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 4 left!

0

21

Echo 43703937630

KNOB

$2.99

$

Usually ships in 2-4 days

0

22

Echo 43701519830

SPRING

$1.49

$

In Stock, only 2 left!

0

23

Echo 90070000003

E-RING 3

$0.99

$

In Stock, Qty 6

0

24

Echo P021016310

CAP ASSY, OIL

Note: Includes Items 25-26

$14.99

$

Usually ships in 2-4 days

0

25

Echo 90072502025

O-RING

$2.49

$

In Stock, only 2 left!

0

26

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0
