CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Chain Brake Parts Diagram

Chainsaw

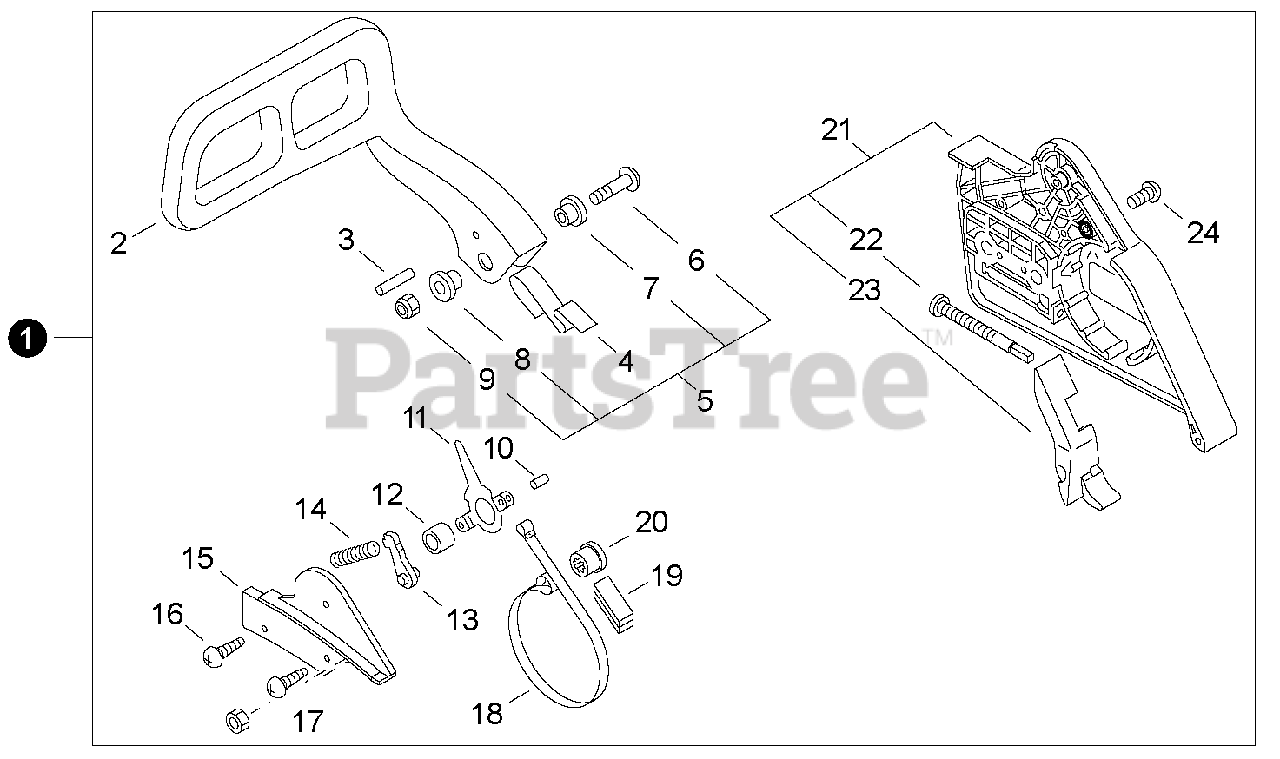

Chain Brake Parts Diagram

  • Title

1

Echo P021010642

BRAKE ASSY, CHAIN
(Superseded to P021044520)

$124.99

$

In Stock, only 3 left!

0

2

Echo 43310538131

LEVER, BRAKE

$47.99

$

Usually ships in 2-4 days

0

3

Echo 90033035260

PIN 3.5×26

$0.99

$

In Stock, Qty 7

0

4

Echo 43311438131

SPRING, FLAT

$8.49

$

In Stock, only 2 left!

0

5

Echo 43311337539

SCREW KIT

$6.49

$

In Stock, Qty 11

0

6

Echo 90020905035

SCREW 5×35

$1.49

$

In Stock, only 3 left!

0

7

Echo 43316739730

COLLAR 5

$3.49

$

In Stock, Qty 10

0

8

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 12

0

9

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

10

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

11

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 2 left!

0

12

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

13

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 2 left!

0

14

Echo 43312238130

SPRING, BRAKE

$8.49

$

Usually ships in 2-4 days

0

15

Echo 43331038130

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

16

Echo 90025204012

SCREW 4×12

$0.99

$

Usually ships in 2-4 days

0

17

Echo 90050000003

NUT 3 MM

$0.99

$

Usually ships in 2-4 days

0

18

Echo 43312338131

BAND, BRAKE

$11.99

$

In Stock, only 2 left!

0

19

Echo 43331232630

SEAL, BRAKE

$1.49

$

In Stock, only 3 left!

0

20

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 2 left!

0

21

Echo P021002286

GUARD KIT, SPROCKET

$31.99

$

In Stock, only 2 left!

0

22

Echo V203000110

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 18

0

23

Echo C302000000

CUSHION

$6.49

$

In Stock, only 2 left!

0

24

Echo 90022003018

SCREW 3×18

$0.99

$

In Stock, only 4 left!

0
