CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Front Handle Parts Diagram

Engine: 66.8 cc, 2-stroke, professional-grade Starting system: standard Oiling system: automatic adjustable Vibration-reduction system: yes Bar lengths: 50 cm (20 in), 60 cm (24 in), 70 cm (28 in) Oil capacity: 0.37 L (12.5 fl oz) Fuel capacity: 0.64 L (21.8 fl oz) Dry weight: 6.6 kg (14.6 lb) Handle: plastic (aluminum frame with rubber grip) Air filter: heavy-duty, automotive-style, side-access chain tensioner Handle length: 0.64 m (21.8 in) Gear type: plastic Performance Cutting System(TM)

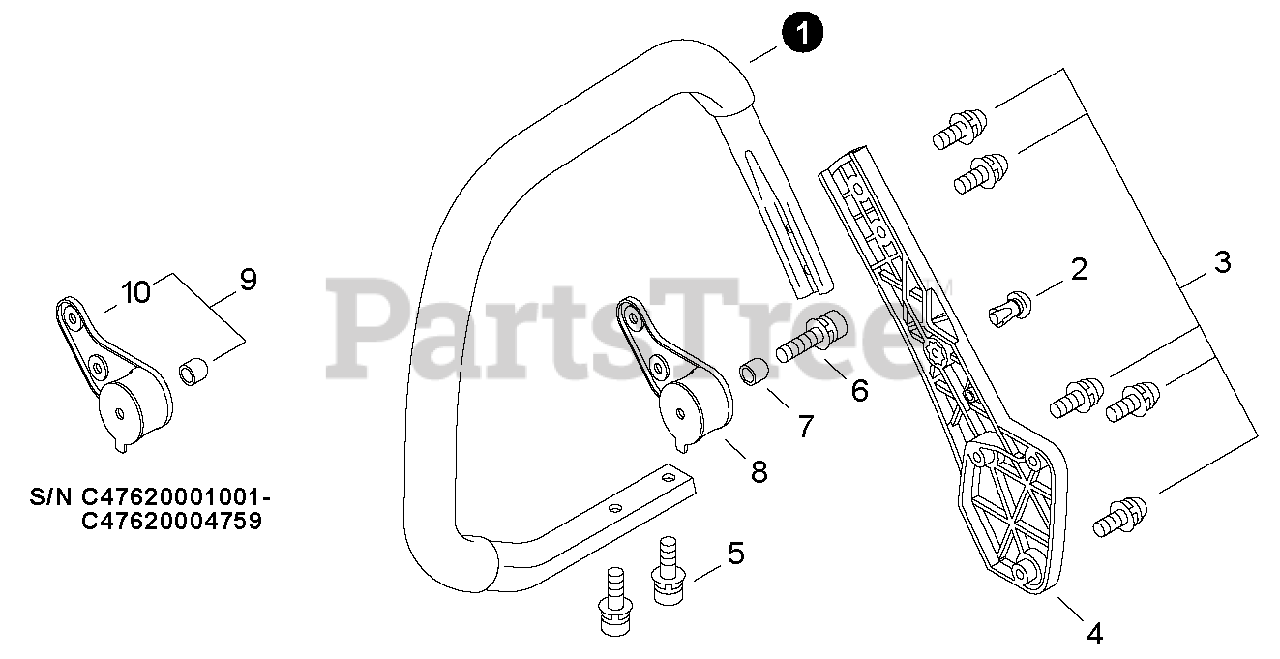

Front Handle Parts Diagram

  • Title

1

Echo C400000101

HANDLE, FRONT

$106.99

$

In Stock, only 1 left!

0

2

Echo V649000010

RIVET

$0.99

$

In Stock, Qty 7

0

3

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 20+

0

4

Echo 35161638130

BRACKET, HANDLE

$46.99

$

Usually ships in 2-4 days

0

5

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 6

0

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo V353000281

COLLAR 5

Note: S/N C47620004760-C47620999999

$3.49

$

Usually ships in 2-4 days

0

8

Echo V401000170

CUSHION 5

$23.99

$

In Stock, only 2 left!

0

9

Echo P021015990

CUSHION KIT

Note: S/N C47620001001-C47620004759

$15.99

$

Usually ships in 2-4 days

0

10

Echo V401000050

CUSHION 5

$19.99

$

Usually ships in 2-4 days

0
