CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Fuel System Parts Diagram

Chainsaw

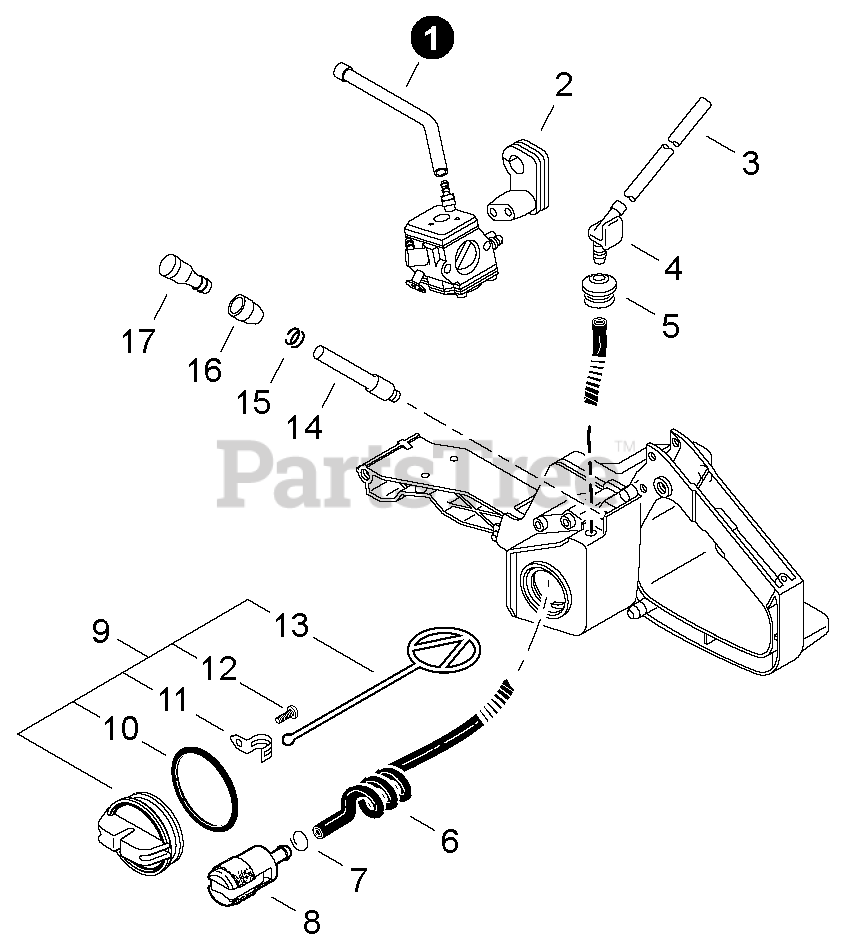

Fuel System Parts Diagram

  • Title

1

Echo 13011019830

PIPE - IMPULSE
(Superseded to 13011019831)

$2.99

$

Usually ships in 2-4 days

0

2

Echo V131000010

GROMMET

$5.49

$

Usually ships in 2-4 days

0

3

Echo 13201056030

PIPE - 3X6X110 -- BLACK
(Superseded to 13201056031)

$2.99

$

In Stock, only 2 left!

0

4

Echo 13201119831

CONNECTOR, PIPE
(Superseded to 13201133031)

$4.49

$

In Stock, only 2 left!

0

5

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 20+

0

6

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

In Stock, only 4 left!

0

7

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

9

Echo 13100437632

CAP ASSY
(Superseded to P021037420)

$3.49

$

In Stock, Qty 6

0

10

Echo V581000600

O-RING - 29

$2.49

$

In Stock, only 2 left!

0

11

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

12

Echo 90024603008

SCREW - 3X8 -- TAPPING

$

$

Not available

13

Echo 13105119830

CONNECTOR, CAP
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

14

Echo 13131232430

PIPE - VENT

$13.99

$

In Stock, only 1 left!

0

15

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

16

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 20+

0

17

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 20+

0
