CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Fuel System Parts Diagram

Chainsaw

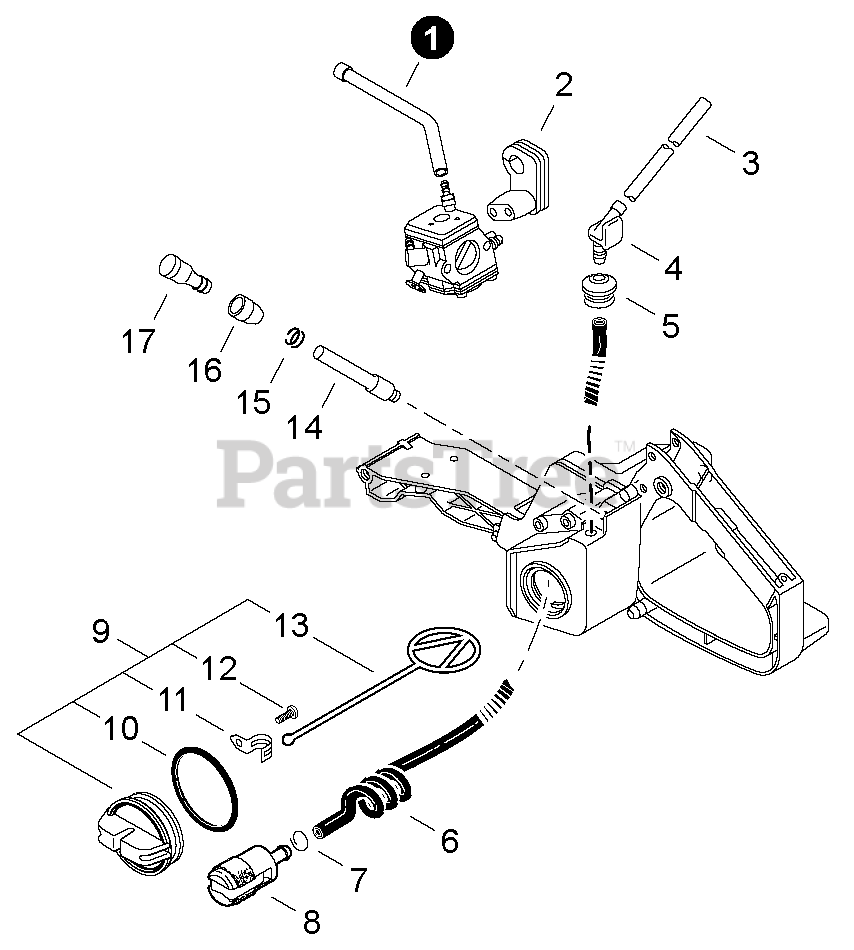

Fuel System Parts Diagram

  • Title

1

Echo 13011019830

PIPE, IMPULSE
(Superseded to 13011019831)

$3.49

$

In Stock, only 3 left!

0

2

Echo V131000010

GROMMET, NEEDLE

$6.49

$

In Stock, only 1 left!

0

3

Echo 13201056030

PIPE, FUEL 3×6×110
(Superseded to 13201056031)

$3.49

$

In Stock, only 2 left!

0

4

Echo 13201119831

CONNECTOR, PIPE
(Superseded to 13201133031)

$5.49

$

In Stock, only 4 left!

0

5

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13201030830

PIPE, FUEL
(Superseded to 13201030831)

$6.99

$

In Stock, only 2 left!

0

7

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

9

Echo 13100437632

CAP ASSY, FUEL
(Superseded to P021037420)

$4.49

$

In Stock, Qty 18

0

10

Echo V581000600

O-RING 29

$2.99

$

In Stock, only 2 left!

0

11

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

12

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

13

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

14

Echo 13131232430

PIPE, VENT

$16.99

$

In Stock, only 2 left!

0

15

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

16

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

17

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 7

0
