CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Ignition, Throttle Control Parts Diagram

Chainsaw

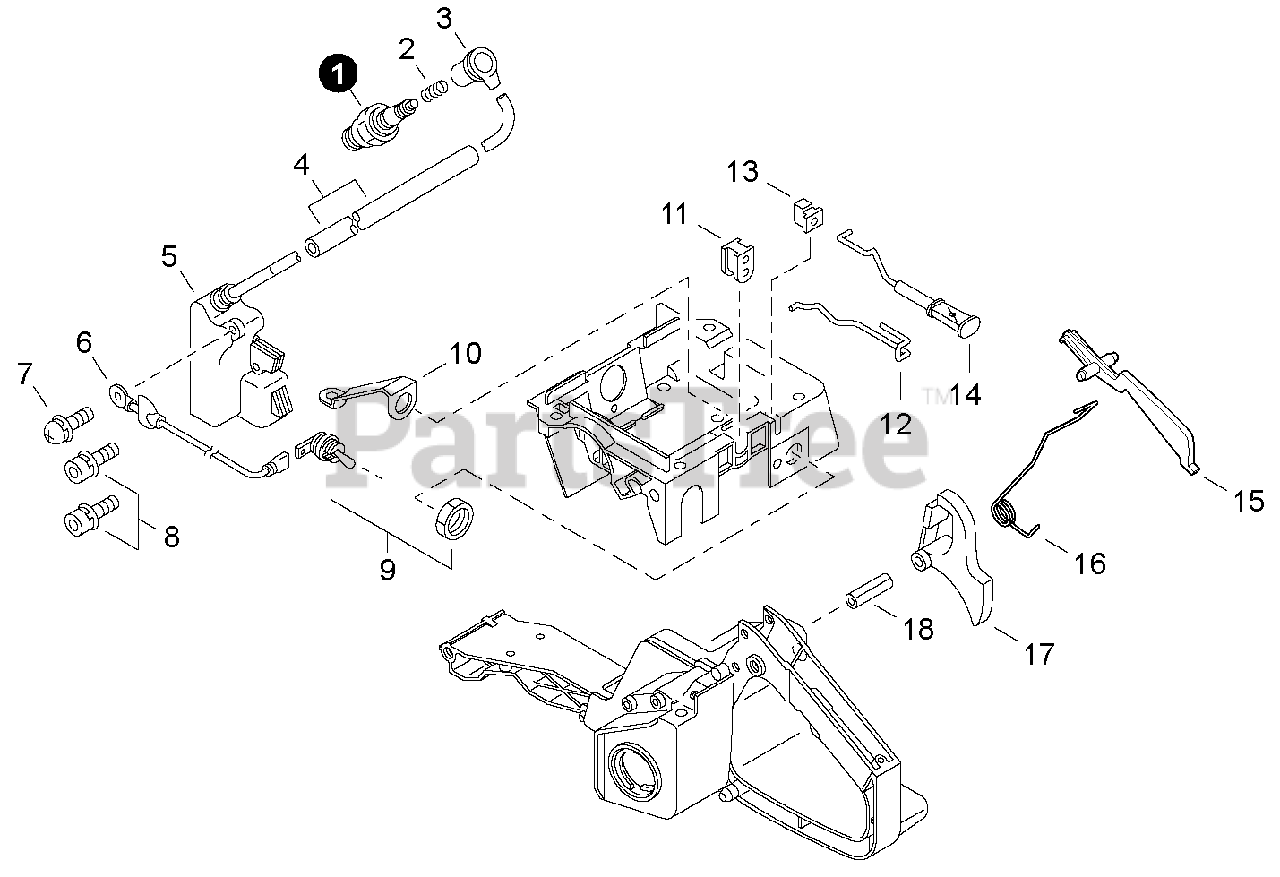

Ignition, Throttle Control Parts Diagram

  • Title

1

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

2

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 12

0

3

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

4

Echo 15661119830

PIPE

$1.99

$

Usually ships in 2-4 days

0

5

Echo 15660132632

COIL, IGNITION

$166.99

$

Usually ships in 2-4 days

0

6

Echo 16202132431

LEAD

$6.49

$

Usually ships in 2-4 days

0

7

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

8

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

9

Echo 16340032430

SWITCH, ON-OFF

$12.99

$

In Stock, only 2 left!

0

10

Echo 15663532430

PLATE, GROUND

$2.49

$

Usually ships in 2-4 days

0

11

Echo 17811432630

GROMMET, THROTTLE ROD

$1.99

$

Usually ships in 2-4 days

0

12

Echo C454000181

ROD, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

13

Echo 17881033331

GROMMET, CHOKE

$1.99

$

In Stock, only 1 left!

0

14

Echo A241000030

ROD, CHOKE

$7.49

$

Usually ships in 2-4 days

0

15

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 2 left!

0

16

Echo 17804319830

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 7

0

17

Echo C450000042

TRIGGER, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

18

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.99

$

In Stock, Qty 8

0
