CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Intake Parts Diagram

Engine: 66.8 cc, 2-stroke, professional-grade Starting system: standard Oiling system: automatic adjustable Vibration-reduction system: yes Bar lengths: 50 cm (20 in), 60 cm (24 in), 70 cm (28 in) Oil capacity: 0.37 L (12.5 fl oz) Fuel capacity: 0.64 L (21.8 fl oz) Dry weight: 6.6 kg (14.6 lb) Handle: plastic (aluminum frame with rubber grip) Air filter: heavy-duty, automotive-style, side-access chain tensioner Handle length: 0.64 m (21.8 in) Gear type: plastic Performance Cutting System(TM)

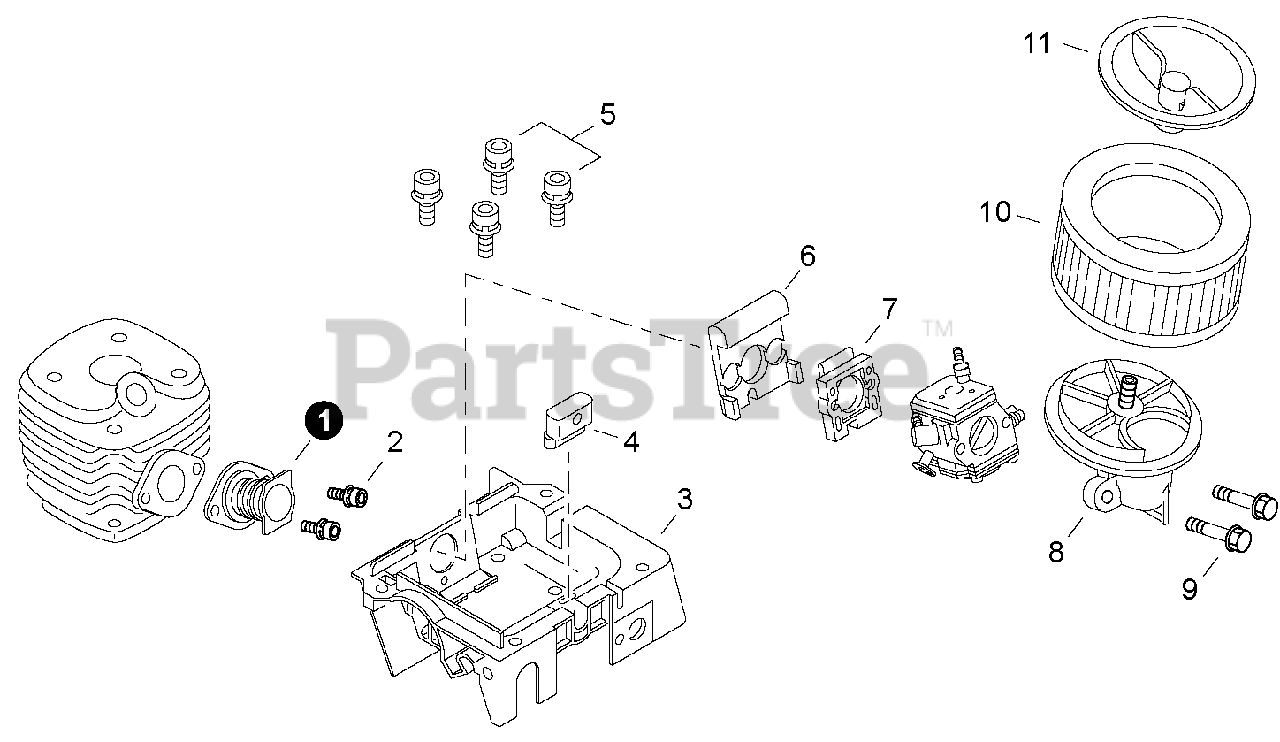

Intake Parts Diagram

  • Title

1

Echo A202000011

BELLOWS, INTAKE
(Superseded to A202000012)

$25.99

$

In Stock, only 2 left!

0

2

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 6

0

3

Echo A220000012

CASE, CARBURETOR

$29.99

$

Usually ships in 2-4 days

0

4

Echo V420000540

CUSHION

$3.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo V420000320

CUSHION
(Superseded to V420000321)

$6.99

$

In Stock, only 2 left!

0

7

Echo P021002801

INSULATOR, INTAKE

$16.99

$

Usually ships in 2-4 days

0

8

Echo A204000020

MOUNT, AIR FILTER

$13.99

$

Usually ships in 2-4 days

0

9

Echo 9110705050

BOLT, FLANGE

$0.99

$

Usually ships in 2-4 days

0

10

Echo A226000070

FILTER, AIR

$30.99

$

In Stock, Qty 15

0

11

Echo A238000030

COVER, AIR FILTER

$16.99

$

In Stock, only 2 left!

0
