CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Oil Pump Parts Diagram
Engine: 66.8 cc, 2-stroke, professional-grade Starting system: standard Oiling system: automatic adjustable Vibration-reduction system: yes Bar lengths: 50 cm (20 in), 60 cm (24 in), 70 cm (28 in) Oil capacity: 0.37 L (12.5 fl oz) Fuel capacity: 0.64 L (21.8 fl oz) Dry weight: 6.6 kg (14.6 lb) Handle: plastic (aluminum frame with rubber grip) Air filter: heavy-duty, automotive-style, side-access chain tensioner Handle length: 0.64 m (21.8 in) Gear type: plastic Performance Cutting System(TM)

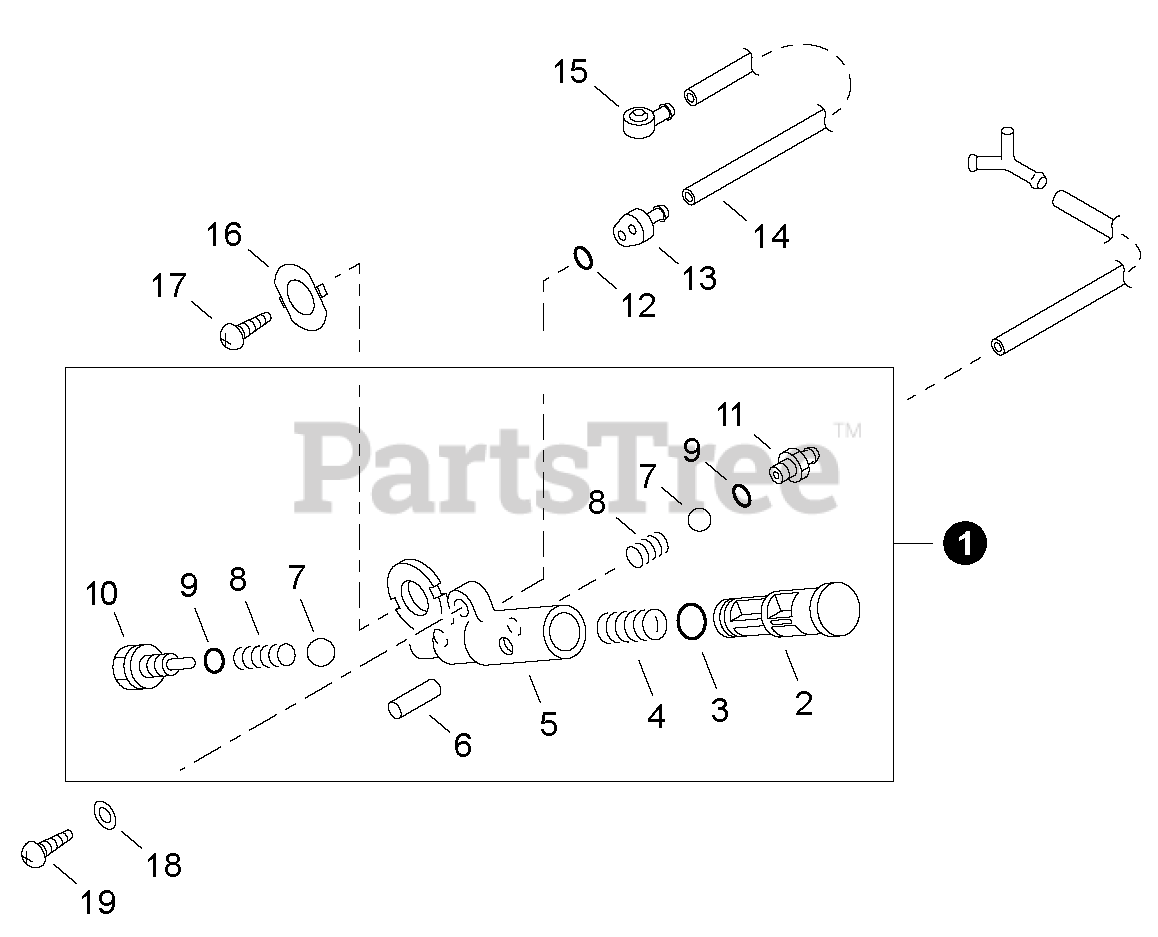

Oil Pump Parts Diagram
Echo 43710038832
$26.99
$
Echo 43711238731
$5.49
$
Echo 90072000007
$0.99
$
Echo 43711119830
$1.99
$
Echo 43711019831
$9.49
$
Echo 90034520016
$2.49
$
Echo 43701200330
$0.99
$
Echo V450000290
$1.49
$
Echo 43712203430
$1.49
$
Echo 43712110130
$5.99
$
Echo 43711819830
$3.99
$
Echo 90072000003
$1.49
$
Echo 43721232630
$4.99
$
Echo 43721632630
$2.99
$
Echo 43723232630
$4.49
$
Echo 43741319830
$1.99
$
Echo 90025204010
$0.99
$
Echo 900603-00005
$0.99
$
Echo 90025205020
$0.99
$
