CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Sprocket Guard, Clutch Parts Diagram

Engine: 66.8 cc, 2-stroke, professional-grade Starting system: standard Oiling system: automatic adjustable Vibration-reduction system: yes Bar lengths: 50 cm (20 in), 60 cm (24 in), 70 cm (28 in) Oil capacity: 0.37 L (12.5 fl oz) Fuel capacity: 0.64 L (21.8 fl oz) Dry weight: 6.6 kg (14.6 lb) Handle: plastic (aluminum frame with rubber grip) Air filter: heavy-duty, automotive-style, side-access chain tensioner Handle length: 0.64 m (21.8 in) Gear type: plastic Performance Cutting System(TM)

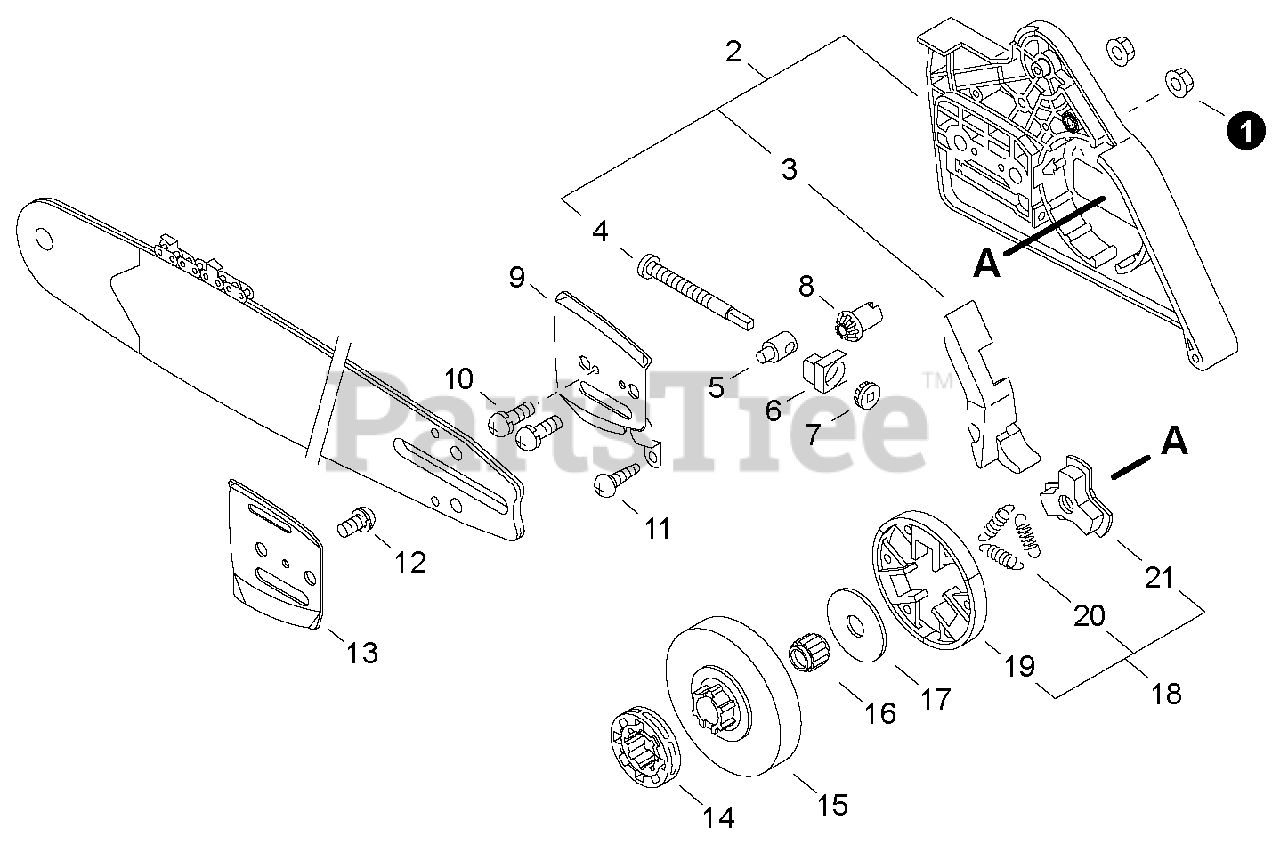

Sprocket Guard, Clutch Parts Diagram

  • Title

1

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

2

Echo P021002286

GUARD KIT, SPROCKET

$31.99

$

In Stock, Qty 5

0

3

Echo C302000000

CUSHION

$6.49

$

In Stock, Qty 7

0

4

Echo V203000110

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 20+

0

5

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

6

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.99

$

In Stock, Qty 20+

0

7

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

8

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

9

Echo C305000040

PLATE, GUIDE - OUTER

$7.99

$

In Stock, only 3 left!

0

10

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, only 2 left!

0

11

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

12

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

13

Echo 43301330830

PLATE, GUIDE - INNER

$6.49

$

In Stock, only 2 left!

0

14

Echo 17503314731

SPROCKET, RIM 3/8"×7T

$17.99

$

In Stock, Qty 13

0

15

Echo 17510532431

DRUM, CLUTCH

$48.99

$

In Stock, only 2 left!

0

16

Echo 17501232430

BEARING, NEEDLE

$16.99

$

In Stock, only 3 left!

0

17

Echo A551000051

PLATE, CLUTCH

$11.99

$

In Stock, only 2 left!

0

18

Echo A056000050

CLUTCH ASSY

$81.99

$

In Stock, only 2 left!

0

19

Echo P021007790

SHOE SET, CLUTCH (3PCS)

$49.99

$

Usually ships in 2-4 days

0

20

Echo V451000430

SPRING, TENSION

$3.99

$

Usually ships in 2-4 days

0

21

Echo A552000040

HUB, CLUTCH

$19.99

$

Usually ships in 2-4 days

0
