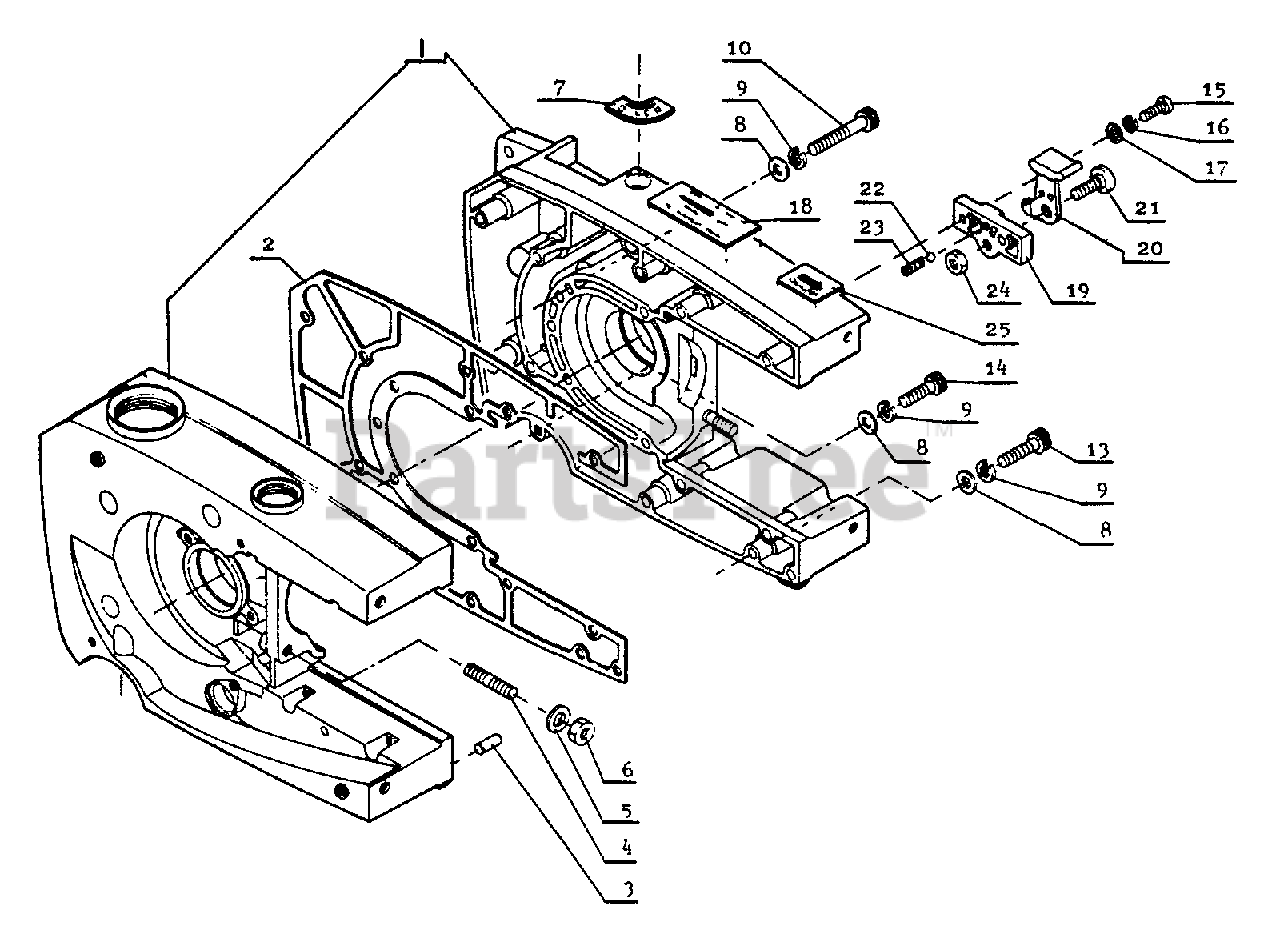

CS-701 SVL - Echo Chainsaw Crankcase Parts Diagram

Chainsaw

Crankcase Parts Diagram

  • Title

1

Echo 10020002835

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 10024202832

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

3

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

4

Echo 10021402830

STUD

$1.49

$

Usually ships in 2-4 days

0

5

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 89002202831

LABEL - OIL
(Superseded to Discontinued)

$

$

Not available

8

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

9

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

10

Echo 90010505035

SCREW - 5X35

$1.49

$

In Stock, only 1 left!

0

13

Echo 90010505030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

14

Echo 90010505018

SCREW - 5X18

$1.49

$

In Stock, only 1 left!

0

15

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

17

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 17

0

18

Echo 89004602830

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

19

Echo 17981303630

BRACKET
(Superseded to Discontinued)

$

$

Not available

20

Echo 17980503630

LEVER, DECOMPRESSION
(Superseded to Discontinued)

$

$

Not available

21

Echo 17981603630

SCREW - SET
(Superseded to Discontinued)

$

$

Not available

22

Echo 43711700130

VALVE, BALL
(Superseded to Discontinued)

$

$

Not available

23

Echo 17981703630

SPRING

$0.99

$

Usually ships in 2-4 days

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 89014903730

LABEL - DECOMPRESSION
(Superseded to Discontinued)

$

$

Not available
