CS-701 SVL - Echo Chainsaw Crankshaft, Piston Parts Diagram

Chainsaw

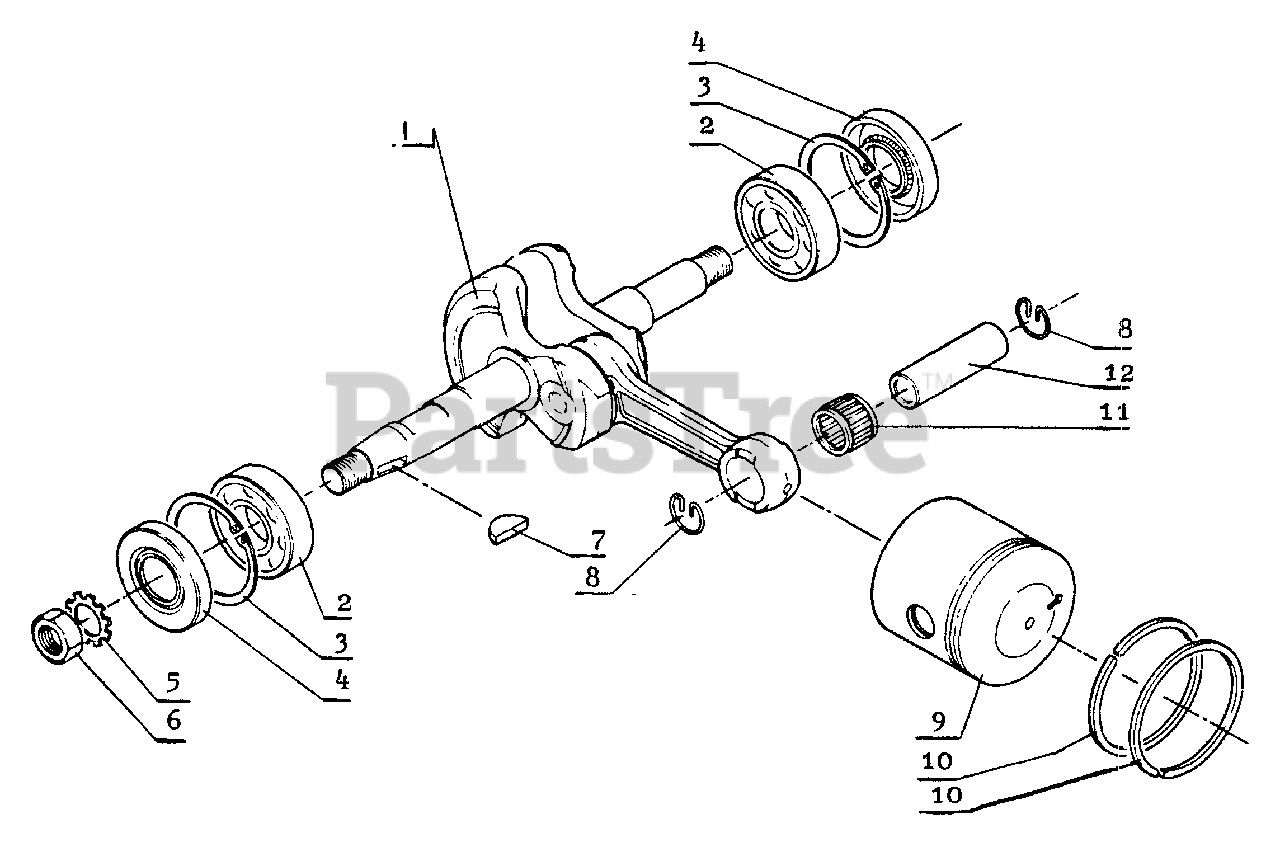

Crankshaft, Piston Parts Diagram

  • Title

1

Echo 10010002830

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 90081006202

BEARING, BALL - 6202

$11.99

$

In Stock, only 2 left!

0

3

Echo 90070200035

RING, RETAINING - 35

$2.49

$

In Stock, Qty 10

0

4

Echo 10021302830

SEAL, OIL

$7.99

$

In Stock, only 2 left!

0

5

Echo 90061100010

WASHER - 10

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10014402830

NUT

$1.49

$

In Stock, Qty 5

0

7

Echo 90032203014

KEY - 3X14
(Superseded to 90032303014)

$1.99

$

In Stock, Qty 20+

0

8

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10001003730

PISTON
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL

$

$

Not available

9

Echo 10001002830

PISTON
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

10

Echo 10001103730

RING, PISTON
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL

$

$

Not available

10

Echo 10001102830

RING, PISTON
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

11

Echo 10001202830

BEARING, NEEDLE
(Superseded to 10001202831)

$

$

Not available

12

Echo 10001303730

PIN, PISTON

Note: Exclusive for CS-701SVL

$9.99

$

Usually ships in 2-4 days

0

12

Echo 10001302830

PIN, PISTON
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available
