CS-701 SVL - Echo Chainsaw Front Handle Parts Diagram

Chainsaw

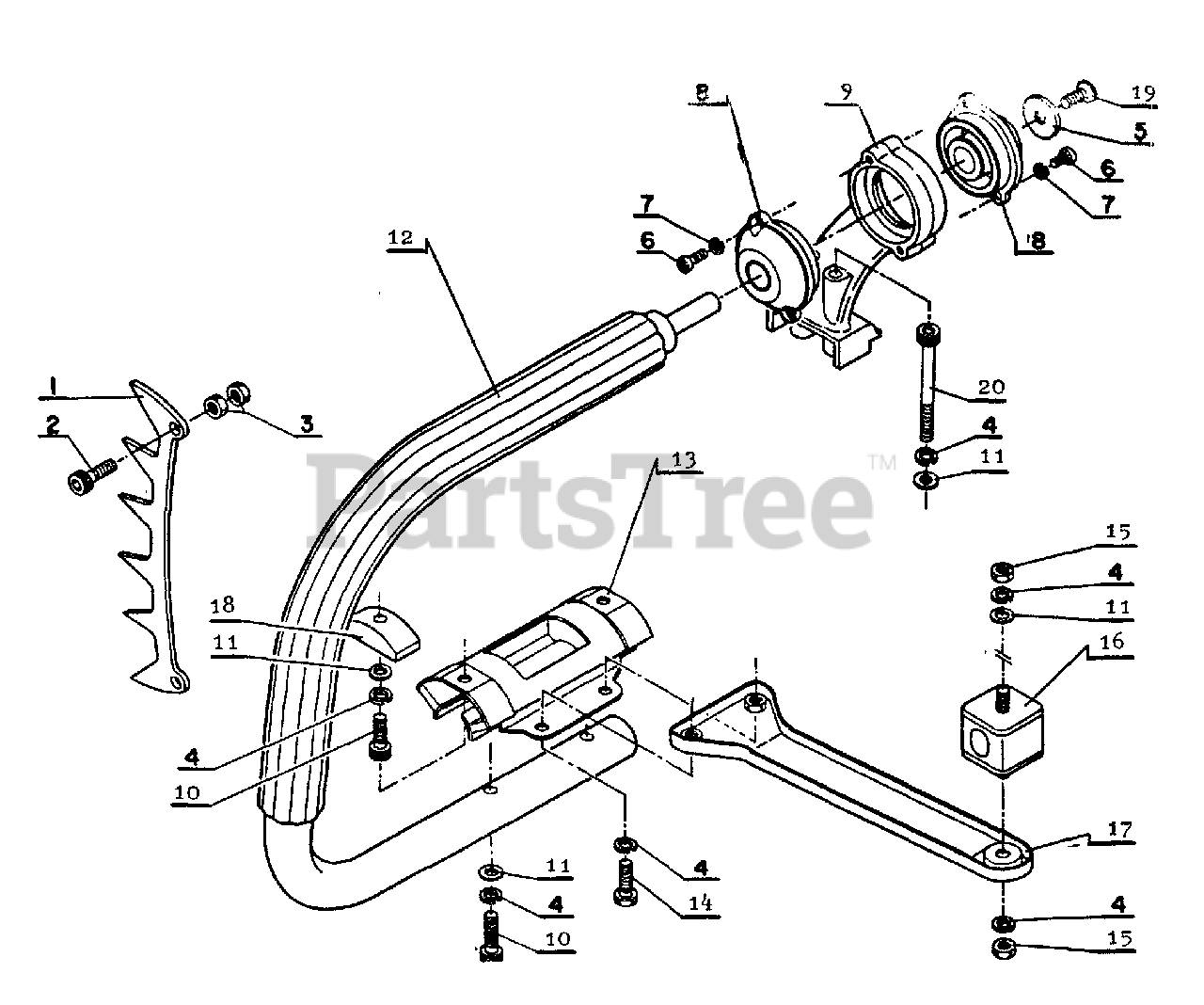

Front Handle Parts Diagram

  • Title

1

Echo 88021002830

SPIKE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90010505015

SCREW - 5X15

$1.49

$

Usually ships in 2-4 days

0

3

Echo 90050000005

NUT - 5

Note: Exclusive for CS-701SVL, CS-601SVL

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

5

Echo 35163303430

WASHER
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

6

Echo 90022003008

SCREW - 3X8

Note: Exclusive for CS-701SVL, CS-601SVL

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90060500003

LOCKWASHER - 3

Note: Exclusive for CS-701SVL, CS-601SVL

$0.99

$

Usually ships in 2-4 days

0

8

Echo 35160503630

Cushion rubber (L-U)
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

9

Echo 35161403631

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

10

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

11

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

12

Echo 35160603631

HANDLE - FRONT
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

13

Echo 35160903631

Cushion rubber (L-L)
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

14

Echo 90010005008

BOLT - 5X8

Note: Exclusive for CS-701SVL, CS-601SVL

$0.99

$

Usually ships in 2-4 days

0

15

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

Note: Exclusive for CS-701SVL, CS-601SVL

$1.49

$

In Stock, only 3 left!

0

16

Echo 35160703630

Cushion rubber (L-L2)
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

17

Echo 35161303630

BRACKET, HANDLE - LOWER
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

18

Echo 35163003630

ADAPTER, CUSHION
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL, CS-601SVL

$

$

Not available

19

Echo 90021205012

SCREW - 5X12
(Superseded to 90021805012)

Note: Exclusive for CS-701SVL, CS-601SVL

$0.99

$

Usually ships in 2-4 days

0

20

Echo 90010505055

SCREW - 5X55

Note: Exclusive for CS-701SVL, CS-601SVL

$1.49

$

In Stock, Qty 20+

0
